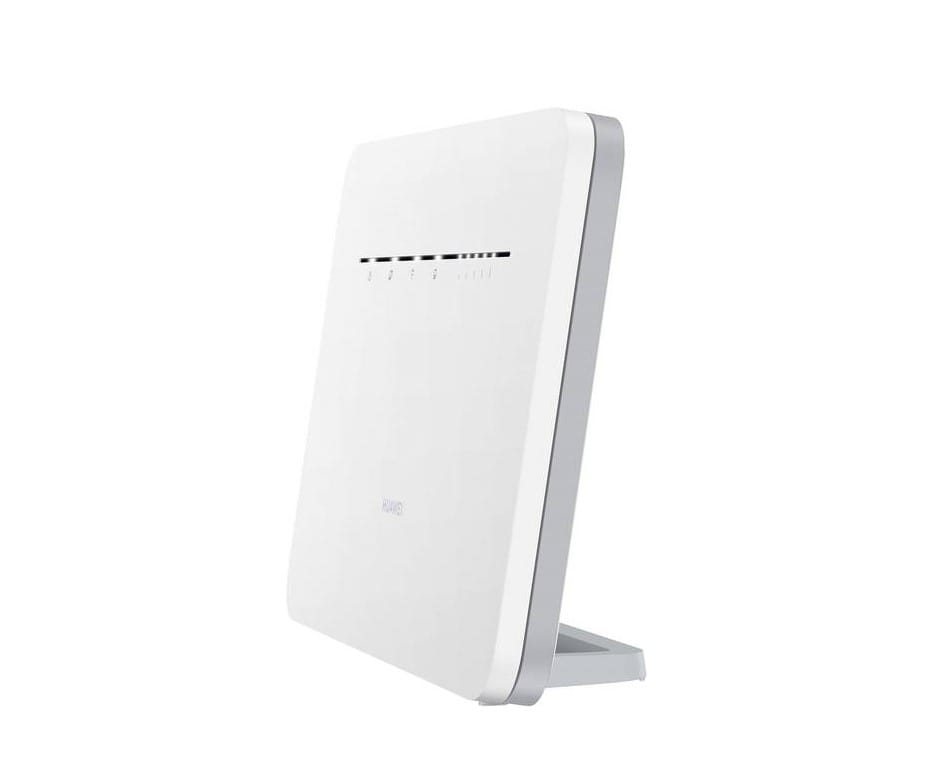

New product, without brand markings, without locks, ready to work with a micro SIM card of any network. Huawei B535-232 allows you to operate the modem via Wi-Fi connection up to 64 people at the same time. Operation and configuration via a web browser. The advantage of the router is the presence of two outputs for external antennas. Thanks to this, each antenna can be set in a different direction and improve the quality of the signal, and thus – also the speed and stability of the connection. This feature is not without significance in places where the signal is sometimes weak. With a medium range, built-in antennas are enough.
Features of Huawei 4G 3 PRO router
Operating Frequency: Dual Band (2.4GHz, 5GHz), LTE,
Number of LAN ports: 4x [10/100/1000M (RJ45)]
LTE Category: Cat.7 (300Mbps Download, 150Mbps Upload)
Maximum wireless speed: 1200 Mbps
Wireless standards: IEEE 802.11ac, IEEE 802.11n,
Connectivity Type: Wi-Fi, 4G/LTE,
Additional connectors / interfaces: 2x SMA
LTE bands: B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28 700MHz), B32 (1500MHz), B38 (2600MHz),
Device Power Type: Power Adapter
WAN: 3GPP Release 11
LAN: IEEE 802.3/802.3u
Wi-Fi: IEEE 802.11a/b/g/n/ac
LTE: B1/B3/B7/B8/B20/B28/B32/B38
UMTS: B1/B8
Wi-Fi: 2.4 GHz: 2.4 GHz-2.473 GHz, 5 GHz: 5.15 GHz-5.35 GHz & 5.47 GHz-5.725 GHz
One power supply port
One LAN/WAN port (RJ-45), 3 LAN ports (RJ-45)
Two external LTE antenna (SMA) ports
One SIM card slot (micro-SIM)
Built-in main antenna: LTE/UMTS
Built-in auxiliary antenna: LTE/UMTS
Built-in WLAN antenna: 2.4 GHz
Built-in WLAN Antenna: 5GHz
One power indicator (white)
One Internet status indicator
Cyan (gray-blue): ACCESS TO LTE NETWORKS
Blue: UMTS network access
Yellow: GSM network access
Green: Ethernet access
Red: SIM card not inserted or detected, or SIM card does not have sufficient balance
One Wi-Fi/WPS/Hi indicator (white)
Slow flashing: Passive HiLink device detected
Fast flashing: HiLink pairing in progress
Off: Wi-Fi is off
The indicator starts flashing slowly only after the router detects it
the new HiLink device. HiLink devices include Honor routers, Honor configuration cans
Honor headphones (EMUI 5.0 and later) and others
One LAN indicator (white)
One group of signal strength indicators (white)
One power on/off switch
One WPS/Hi button
The Wi-Fi indicator flashes slowly when the router detects the HiLink device
Press the WPS button to connect the HiLink device to the router's Wi-Fi network. When the Wi-Fi indicator is on, press the WPS button to turn on WPS
One reset button
Routers new. Some packaging opened for photos. The product is not even taken out of the box.
Maximum transmission power of the Huaweu Router
LTE: B1/B8/B20/B28/B38: 22.5 dBm, B3/B7: 22 dBm
UMTS: B1/B8: 22.5 dBm
Wi-Fi: 802.11b: 14.5 dBm, 802.11g: 15.5 dBm, 802.11n: 15.5 dBm, 802.11a: 18 dBm, 802.11ac: 18 dBm
Power Consumption: <12W
AC/DC power supply: AC (input): 100-240 V, 50-60Hz, DC (output): 12 V/1 A
Dimensions (WxHxD): 219 mm x 138 mm x 25.6 mm (without socket) 219 mm x 138 mm x 60.66 mm (with socket)
Weight: ~325 g (without power supply)
Operating temperature range: 0°C to 40°C
Storage temperature range: -20°C to 70°C
Humidity: 5%-95%, non-condensing
Certification/Compliance: CE, Wi-Fi, ERP, ROHS, REACH, GCF
FDD LTE
B1: 1920-1980 MHz 2110-2170 MHz
B3: 1710-1785 MHz 1805-1880 MHz
B7: 2500-2570 MHz 2620-2690 MHz
B8: 880-915 MHz 925-960 MHz
B20: 832-862 MHz 791-821 MHz
B28: 703-748 MHz 758-803 MHz
B32: AT 1452-1496 MHz
TDD LTE
B38: 2570-2620 MHz 2570-2620 MHz
UMTS
B1: 1920-1980 MHz 2110-2170 MHz
B8: 880-915 MHz 925-960 MHz
Frequency: 2.4 GHz-2.473 GHz
Input impedance: 50 Ω
Standing wave: <2
Efficiency: -3 dB
Gain: 3.5 dBi
Polarization: Linear
Frequency: 5.15GHz-5.35GHz &5.47GHz-5.725GHz
Input impedance: 50 Ω
Standing wave: <2
Efficiency: -3 dB
Gain: 3.5 dBi
Polarization: Linear
Router software
Router Supports default route: 0.0.0.0. Supports manual configuration of LAN IP addresses. Supports Address Resolution Protocol (ARP)
DHCP server: The DHCP server can be enabled or disabled. The DHCP server address pool can be configured. You can configure a tenant. The DNS relay under the DHCP server can be enabled or disabled
NAT: Supports NAT and NAPT (RFC2663, RFC3022 and RFC3027 compliant). Supports cone NAT. Supports Symmetric NAT
ARP: Supported
ICMP: Supported
IPv4 and IPv6: IPv4v6 dual stack. IPv6 only (optional, CLAT for LAN side Internet access on the IPv4 device side) IPv4 only (optional). When CLAT is enabled, the Internet Access service of the IPv4 device cannot reach the maximum bandwidth, only IPv6 does not provide a NAT database service (such as port forwarding and port triggering)
VPN pass-through: Supported
VPN client: Support L2TP VPN client. Support PPTP VPN client
SMS: Write/send/receive. Writing/sending/receiving very long messages
Date service: LTE: DL 300 Mbps, UL 100 Mbps. DC-HSPA+: DL 42 Mbps, UL 5.76 Mbps. HSPA+: DL 21 Mbps (64 QAM), UL 5.76 Mbps. HSPA: DL 14.4 Mbps, UL 5.76 Mbps. WCDMA PS: DL 384 Kbps, UL 384 Kbps. Wi-Fi 802.11b/g/n/a/ac. Supports multi APNs (optional, one for data and one for TR-069)
Firewall Configuration: Enable/disable the firewall. URL filtering. LAN IP filtering. Port forwarding (virtual server). Port triggering (special application). Usługa DMZ. UPnP service. ALG settings
LAN: 10/100/1000 Mbps self-negotiation. Automatic MDI/MDIX detection. IEEE 802.3/802.3u compliant
Wi-Fi: Broadcasts and hides service set identifiers (SSIDs). IEEE 802.11b/g/n/a/ac compliant. WPS. WMM
Encryption: WEP, AES and TKIP+AES
Security modes: Open. WPA2-PSK. WPA/WPA2-PSK. WEP
MAC Address Authentication: Supports MAC address authentication whitelist. Supports MAC address authentication blacklist. Up to 10 MAC address entries are supported
STA: Supports STA status query. Supports up to 64 connected stations
