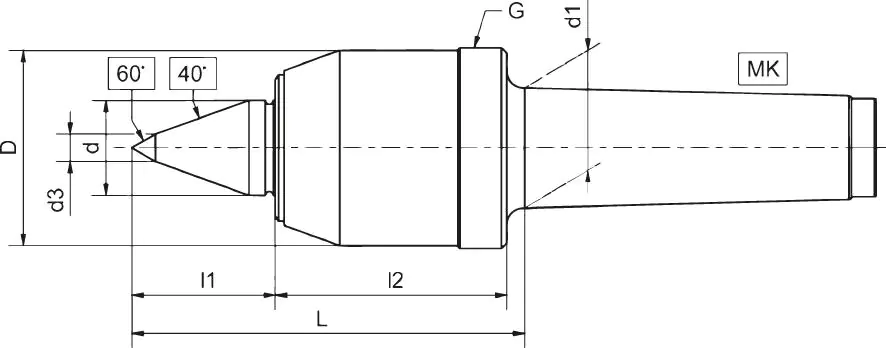

| D: | 25 mm |
|---|---|
| D1: | 23.83 mm |
| D3: | 8 mm |
| Fingerprint thread: | M54 x 1.5 |
| L: | 104 mm |
| L1: | 40 mm |
| L2: | 56 mm |
| Max. axial pressure: | 4.2 kN |
| Max. radial runout tolerance: | 0.003 mm |
| Max. speed: | 12000 min-1 |
| Max. workpiece weight: | 200 kg |
| Mount: | 3 Morse cone |

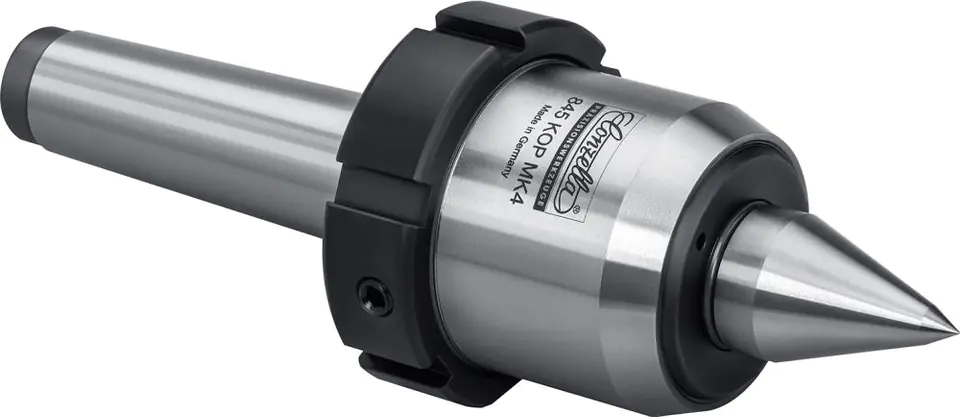

Rotary lathe tusk – slim design
Execution: fully hardened and grinded. The slim turning tusk allows better access to the workpiece. Slight radial runout. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life.
Application: on CNC machines at high rotational speeds. Also suitable for grinding (with additional sealing).
