Rotary lathe tusk – PRO
Made of hardened and ground body, with an apical angle of 60°. Triple bearing for high axial and radial loads. Solid lubricant for the entire service life. With ejection nut.
Application: for pressing on lathes and grinders.

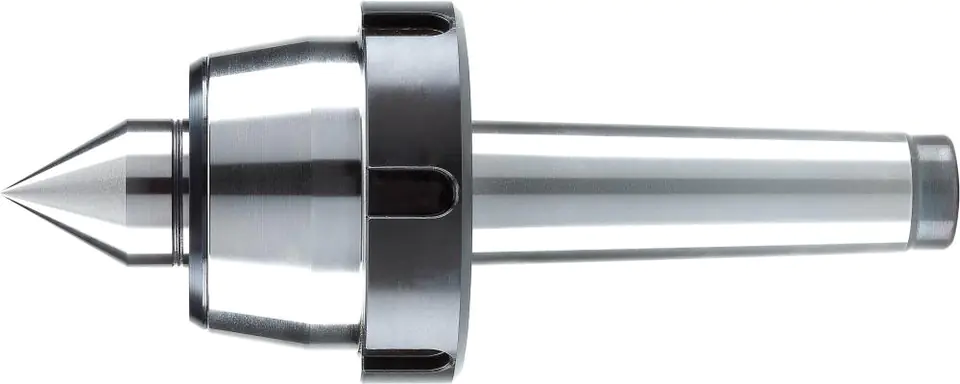

Rotary lathe tusk, with nut push, MK5 RÖHM
PLN 3,751.70
Shipping from warehouse: B6
Estimated shipping: Thu, Dec 18 - Mon, Dec 22
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Röhm
- Product code:
- 74390 / 4019208018294
Share this product:
Specification

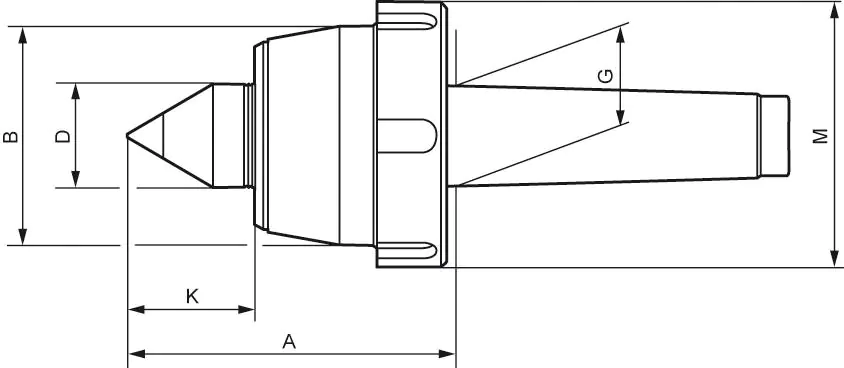

| Dimension a: | 129 mm |
|---|---|
| Dimension b: | 90 mm |
| Dimension d: | 40 mm |
| Dimension g: | 44.399 mm |
| Dimension k: | 49.5 mm |
| Dimension m: | 105 mm |
| Max. radial runout tolerance: | 0.005 mm |
| Max. speed: | 3000 min-1 |
| Max. workpiece weight: | 1000 kg |
| Mount: | 5 Morse cone |
| Size: | 110 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
