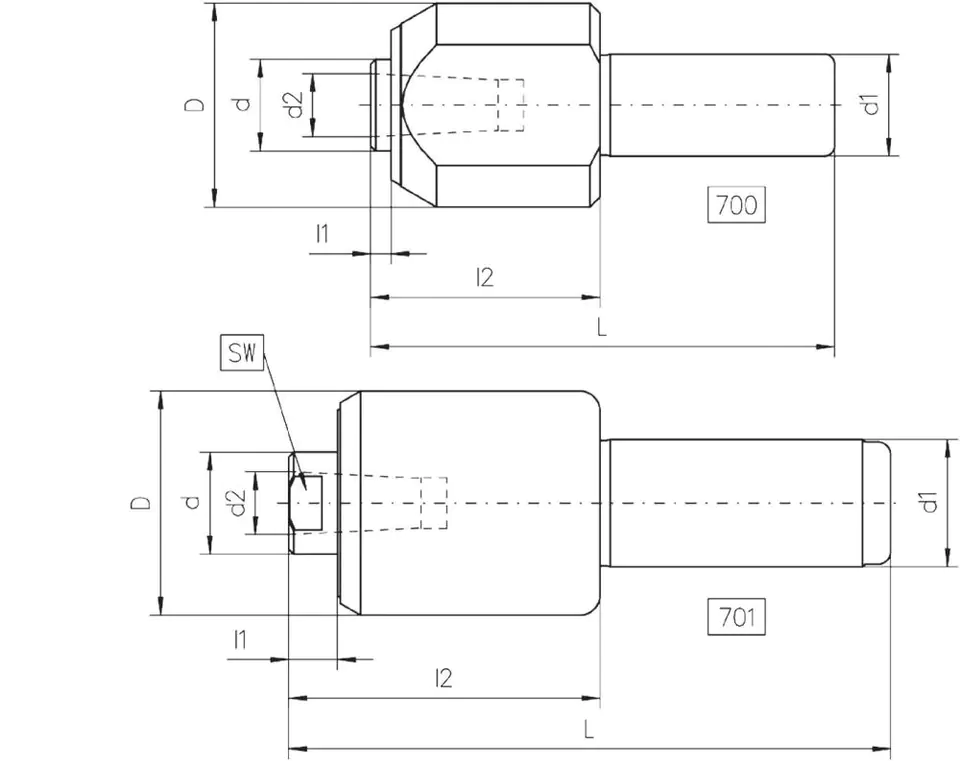

| D: | 18 mm |
|---|---|
| D2: | 12 mm |
| L: | 91 mm |
| L1: | 4 mm |
| L2: | 45 mm |
| Max. speed: | 4000 min-1 |
| Max. workpiece weight: | 200 kg |
| Radial runout tolerance: | 0.01 mm |
| Socket diameter g d1: | 19.05 mm |

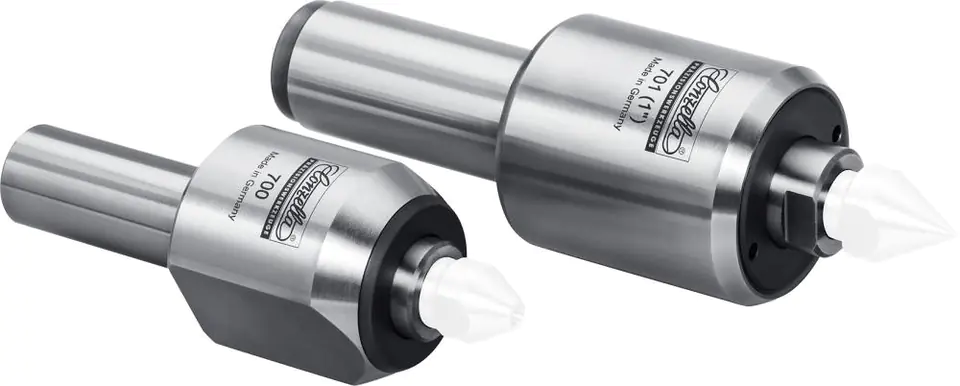

Centering rotary tusk with interchangeable tips
Execution: fully hardened and grinded. Axial length compensation thanks to spring. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life. Replaceable inserts for maximum versatility.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
