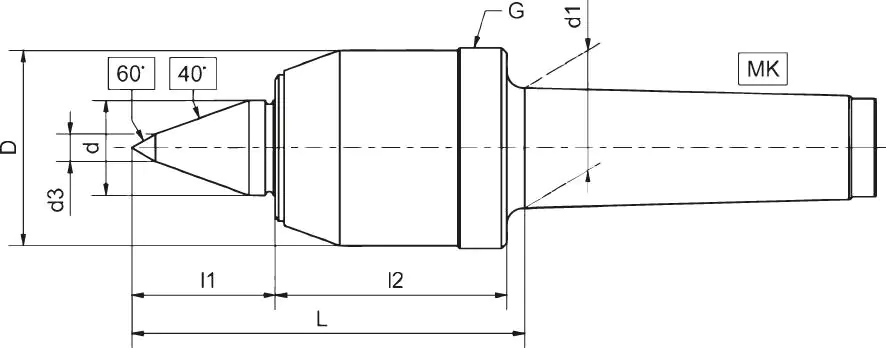

| D: | 35 mm |
|---|---|
| D1: | 44.4 mm |
| D3: | 10 mm |
| Fingerprint thread: | M74 x 1.5 |
| L: | 146 mm |
| L1: | 53 mm |
| L2: | 82 mm |
| Max. axial pressure: | 10.35 kN |
| Max. radial runout tolerance: | 0.003 mm |
| Max. speed: | 8000 min-1 |
| Max. workpiece weight: | 800 kg |
| Mount: | 5 Morse cone |

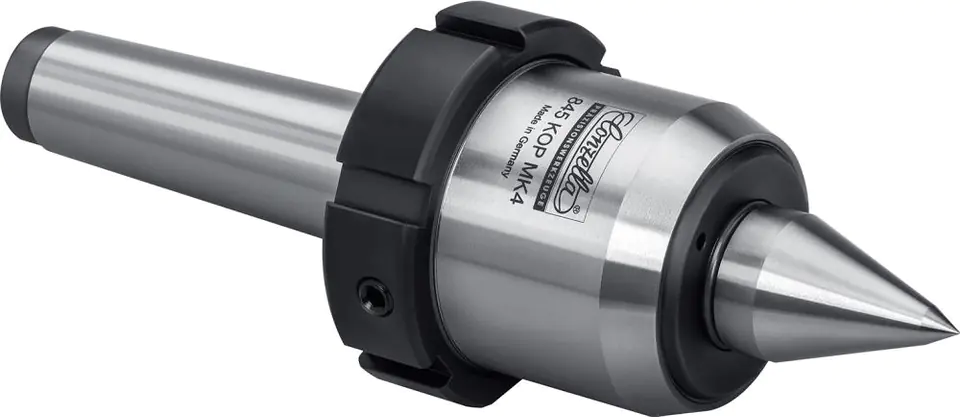

Rotary lathe tusk – slim design
Execution: fully hardened and grinded. The slim turning tusk allows better access to the workpiece. Slight radial runout. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life.
Application: on CNC machines at high rotational speeds. Also suitable for grinding (with additional sealing).
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
