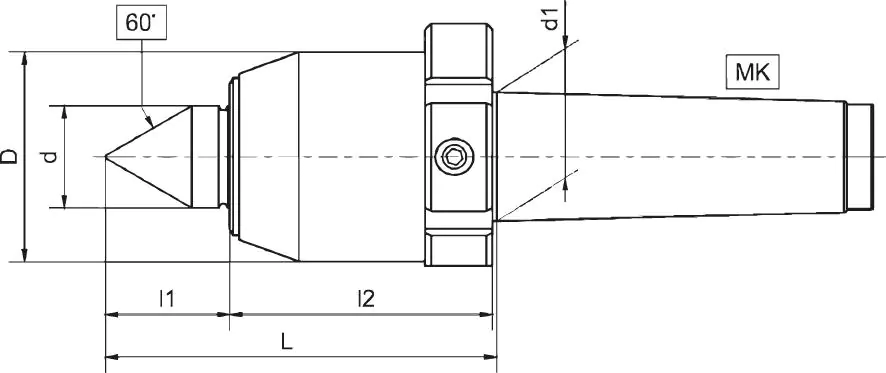

| D: | 28 mm |
|---|---|
| D1: | 31.27 mm |
| Fingerprint thread: | M62 x 1.5 |
| L: | 106 mm |
| L1: | 35 mm |
| L2: | 63 mm |
| Max. axial pressure: | 6 kN |
| Max. radial runout tolerance: | 0.003 mm |
| Max. speed: | 10000 min-1 |
| Max. workpiece weight: | 600 kg |
| Mount: | 4 Morse cone |

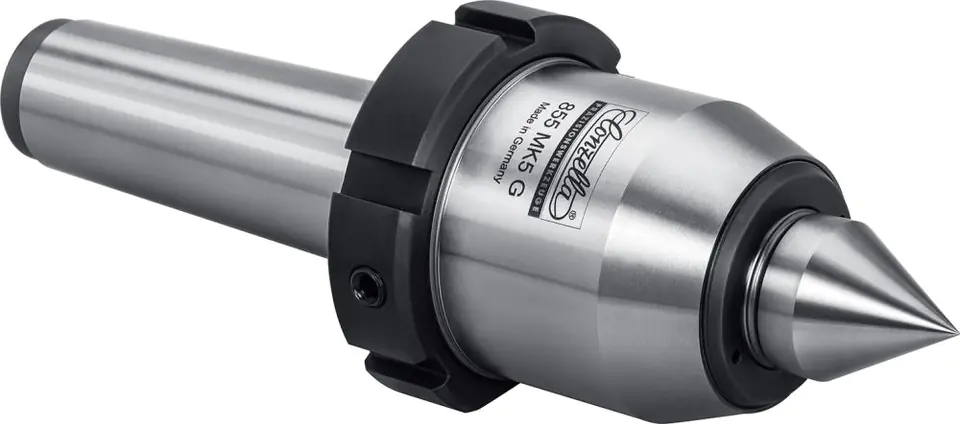

Rotary lathe tusk
Execution: fully hardened and grinded. Slight radial runout. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life.
Application: on CNC machines at high rotational speeds. Also suitable for grinding (with additional sealing).
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
