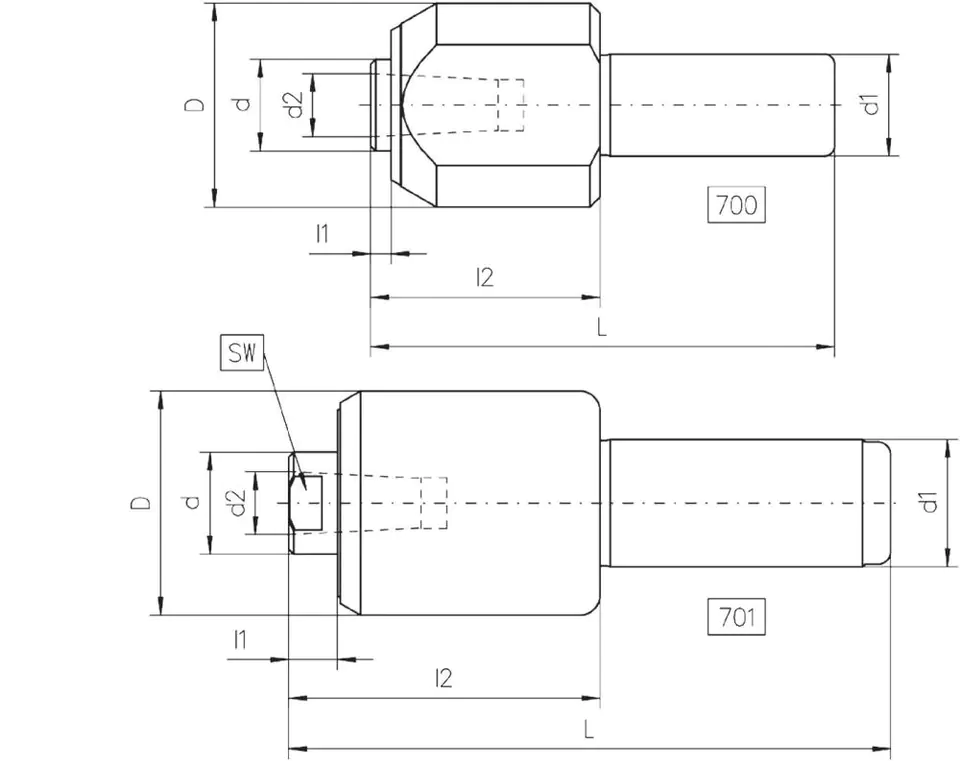

| D: | 18 mm |
|---|---|
| D2: | 12 mm |
| L: | 91 mm |
| L1: | 4 mm |
| L2: | 45 mm |
| Max. speed: | 4000 min-1 |
| Max. workpiece weight: | 200 kg |
| Radial runout tolerance: | 0.01 mm |
| Socket diameter g d1: | 20 mm |

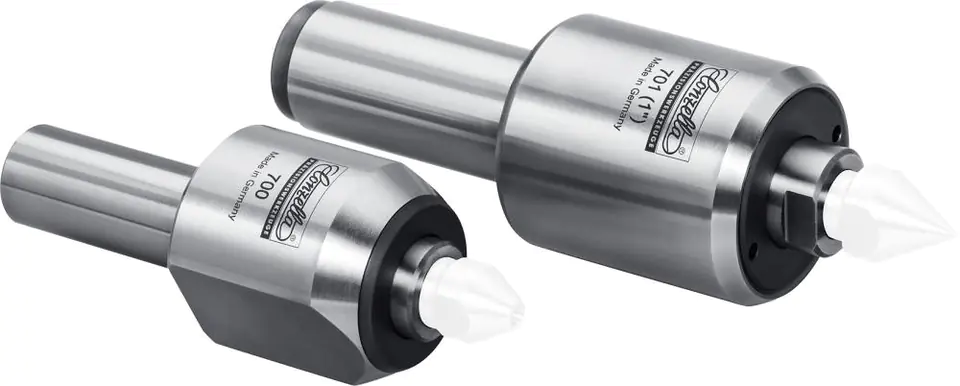

Centering rotary tusk with interchangeable tips
Execution: fully hardened and grinded. Axial length compensation thanks to spring. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life. Replaceable inserts for maximum versatility.
