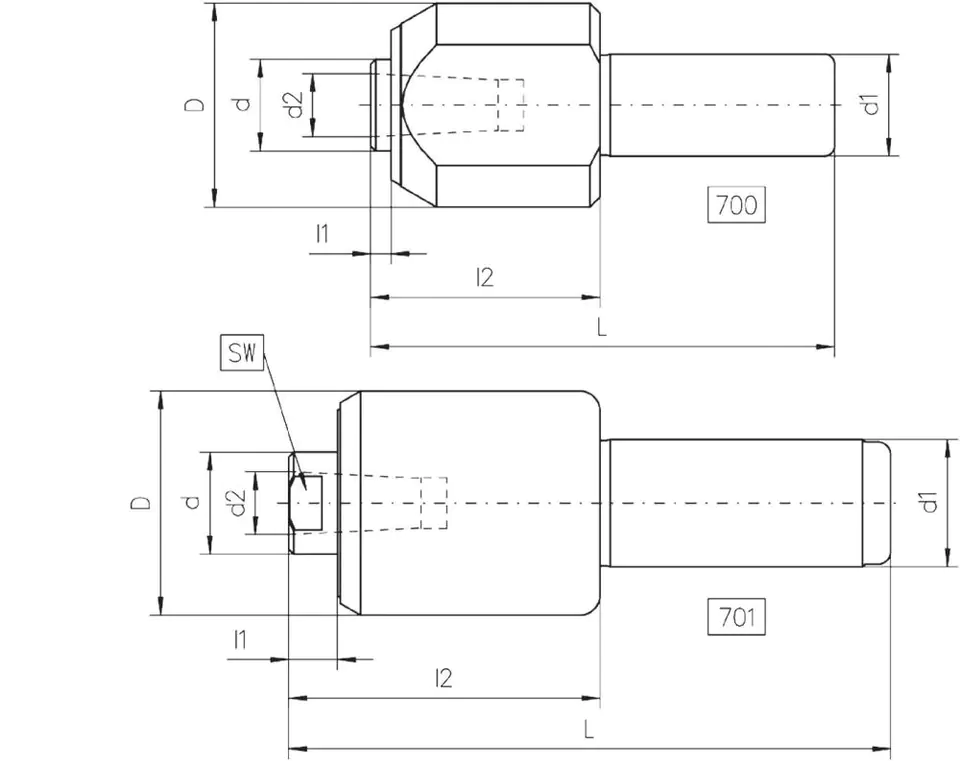

| D: | 20 mm |
|---|---|
| D2: | 12 mm |
| L: | 118 mm |
| L1: | 10 mm |
| L2: | 61 mm |
| Max. speed: | 3000 min-1 |
| Max. workpiece weight: | 300 kg |
| Radial runout tolerance: | 0.01 mm |
| Socket diameter g d1: | 25.4 mm |

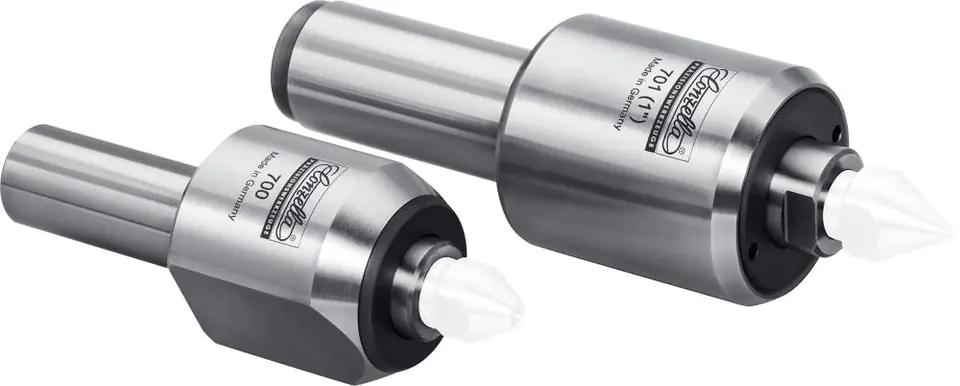

Centering rotary tusk with interchangeable tips
Execution: fully hardened and grinded. Axial length compensation thanks to spring. The shaft seal ring prevents dirt from entering, a solid lubricant that lasts the entire service life. Replaceable inserts for maximum versatility.
