ROTARY LASER LEVEL ST FMX700LG GREEN

Technical Specifications

Manufacturer: Stanley
Manufacturer no: FMHT77448-1
Measurement accuracy+/- 1.5m @ 30m
BatteriesInternal Li-Ion
Range / with detector (m)60m/600m

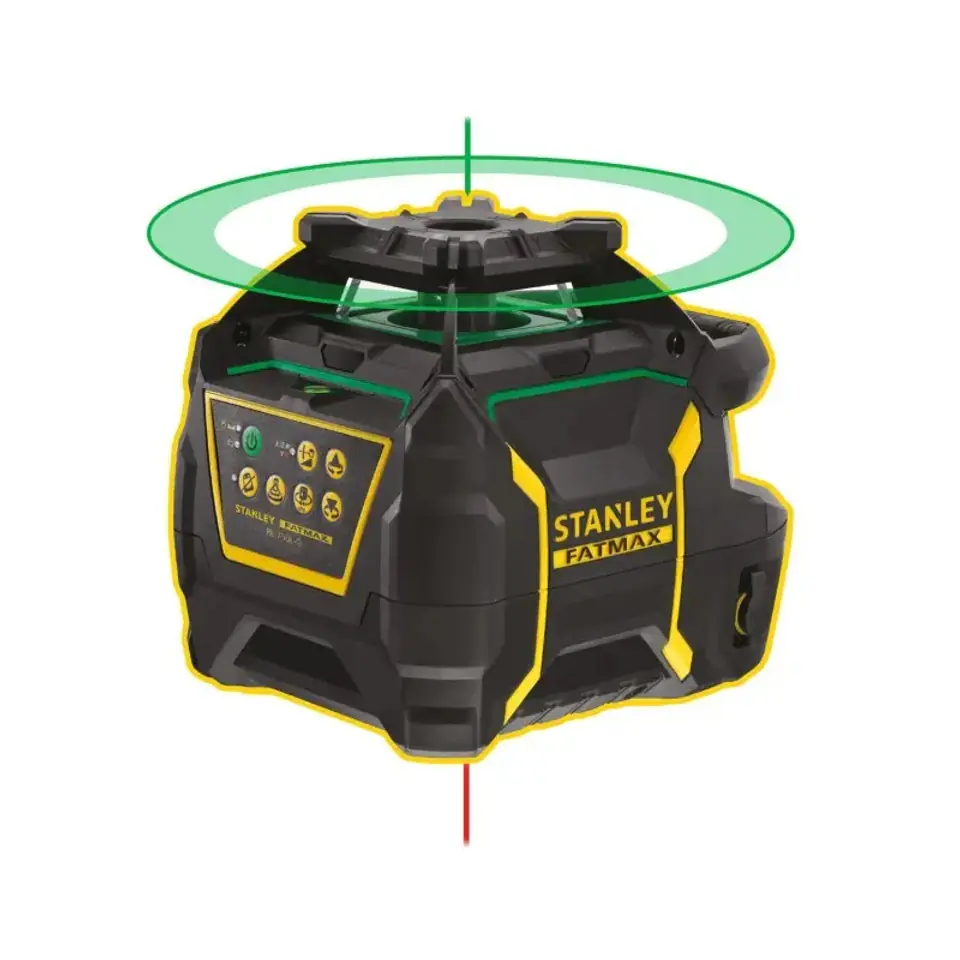

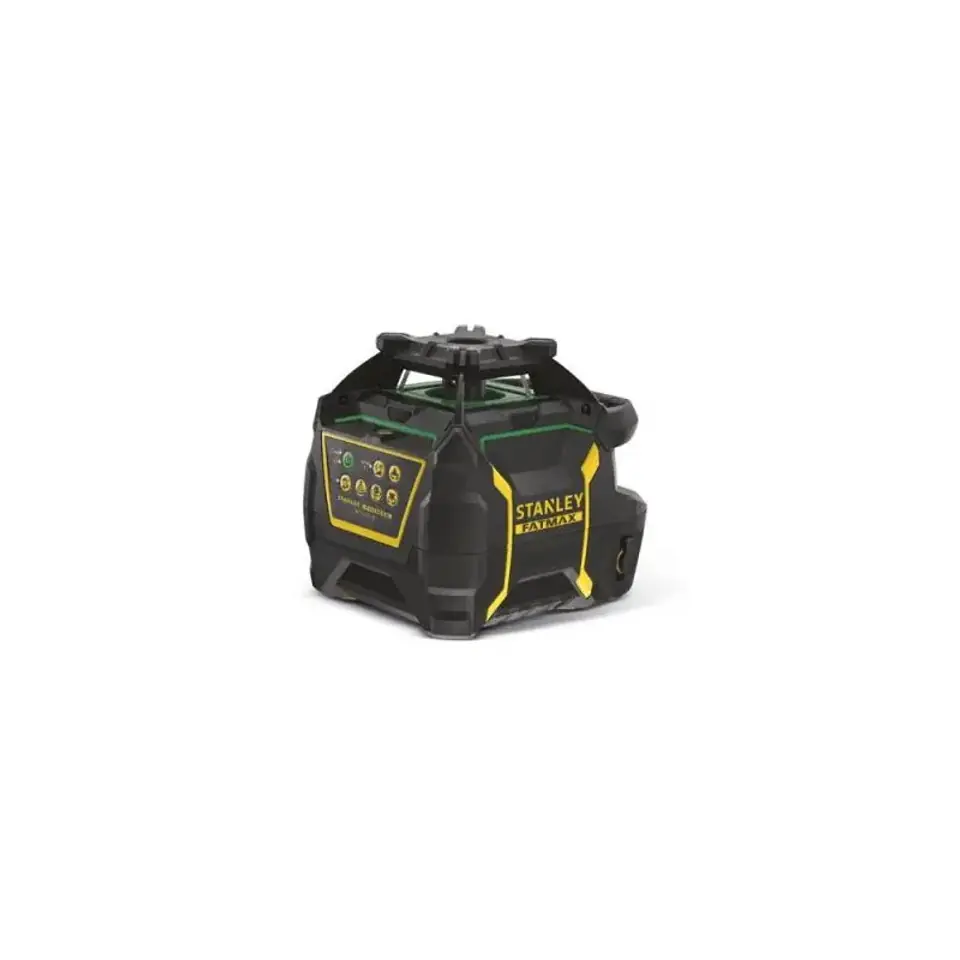

Rotary laser level ST FMX700LG Green

FEATURES AND BENEFITS
Operating range up to 80 m (with 600 m detector)
Variable speed (0/150/300/600 rpm)
Random shift protection system
Leveling accuracy +/- 1.5mm @ 30m (horizontal), +/- 3mm @ 30m (vertical), +/- 3mm @ 30m (point up), +/- 8.7mm @ 30m (point down)
Slope range: +/- 10%
Self-leveling range +/- 5°
Laser beam oscillation mode in the 10°, 45°, 90° sector
Approx. 30 hours of continuous use after fully charging the integrated Li-Ion battery (3.7V 10Ah)
Water and dust resistant IP66, Operating environment: -10°C + 40°C
510-530nm and 630-680nm laser diodes (for up and down points), laser class 2
Working position: horizontal and vertical (mounted on tripod with 5/8 thread)

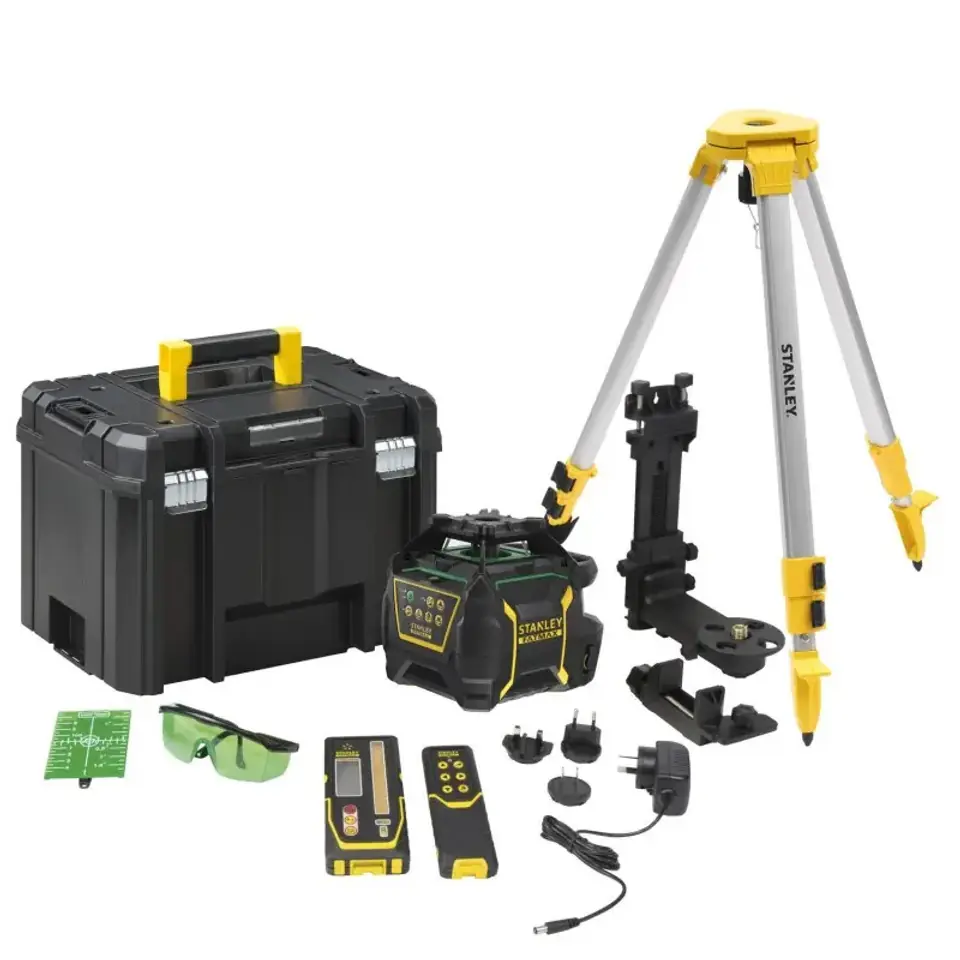

laser, TSTAK box, laser beam detector, detector holder, remote control, glasses, reflective disc, adapter, charger



FMHT77448-1laser,

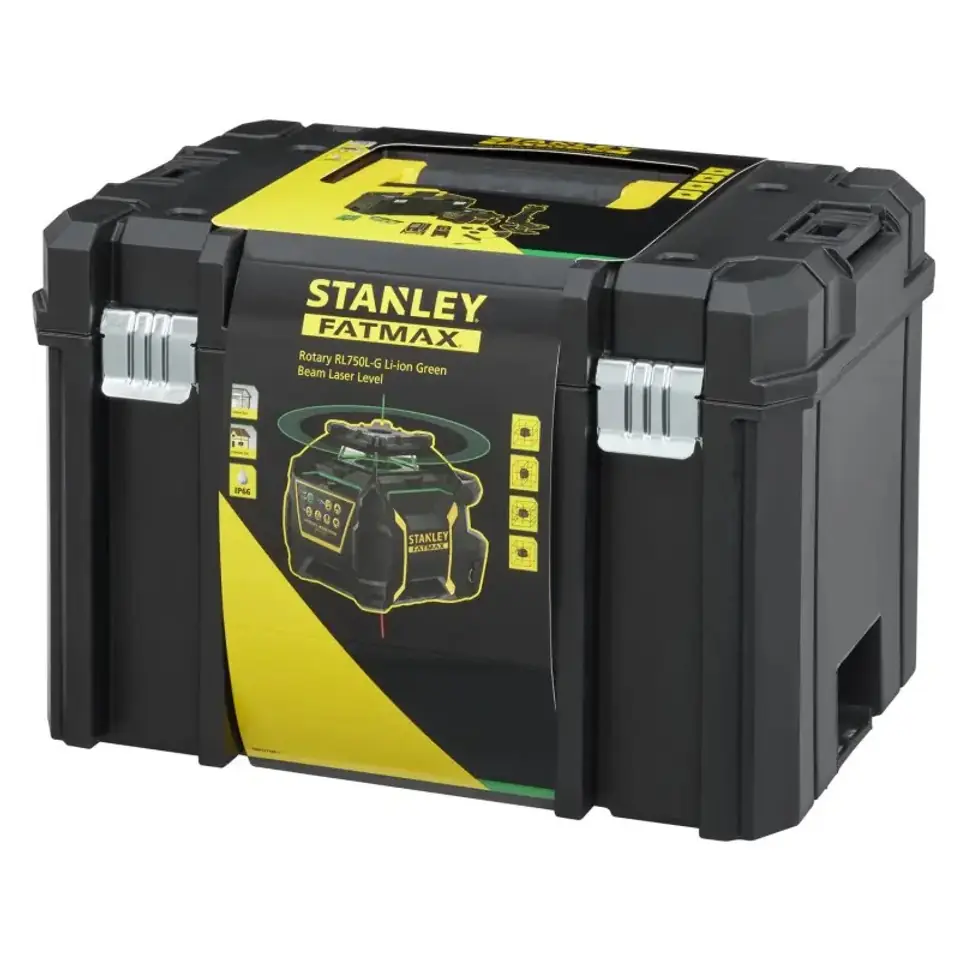

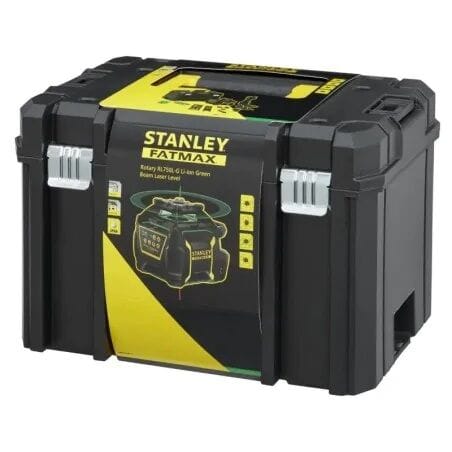

TSTAK box,
Laser beam detector,
Detector holder,
Pilot
Glasses
Reflective dial,
Adapter
Charger

**

Illustrative photos
