Technical data:
Nominal power: 800 W
Impact energy: 3.1 J
Number of strokes at nominal speed: 0 – 4.000 min-1
Nominal speed: 0 – 900 min-1
Weight: 3.6 kg
Tool dimensions (length): 326 mm
Tool dimensions (height): 233 mm
Workstation holder: SDS plus
Drilling diameter in concrete, drill bits for hammers: 4 – 28 mm
Opt. drilling range in concrete, drill bits for hammers: 12 – 18 mm
About drilling with concrete crowns: 68 mm
Max. masonry drilling diameter, drilling crowns: 82 mm
Max. drilling diameter in metal: 13 mm
Max. About drilling in wood: 30 mm
Highest efficiency and 20% less vibration
Fast drilling speed and 20% higher chiselling efficiency than other rotary hammers in its class
Thanks to the Bosch Vibration Control function, work is more comfortable because the vibrations are reduced by 20% than with other hammers of this class
Replaceable drill chuck allows you to quickly change functions from impact drilling in concrete to hammer drilling in wood and metal
Tool case
Additional handle
Depth limiter 210 mm
**

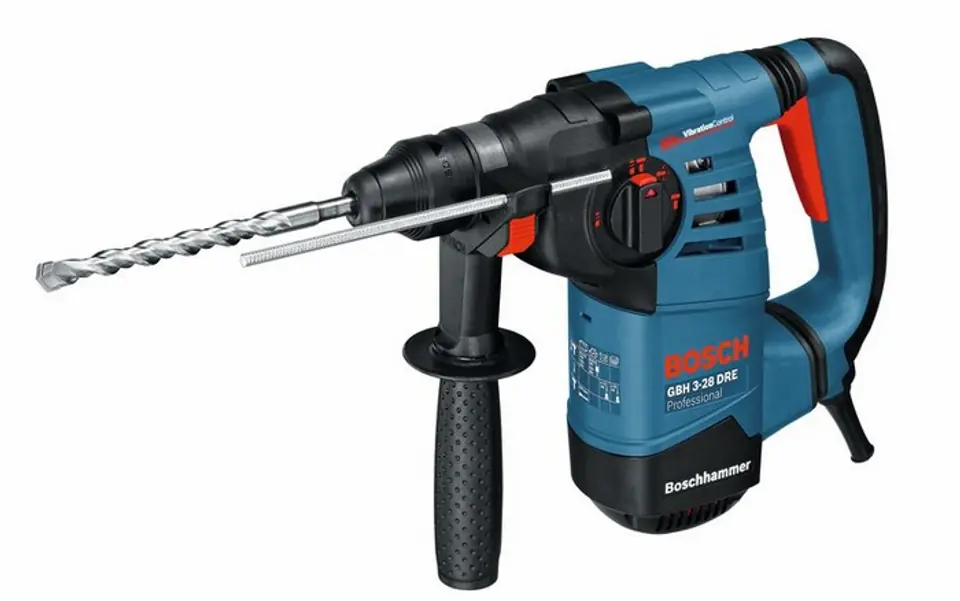

The photo has an illustrative function.
