Manufacturer Name: PROLIFTOR 800
Professional rope winch with electric motor from the German manufacturer MSW.
The warehouse crane is characterized by a durable construction, excellent parameters, ease of assembly and operation, and safety of use.

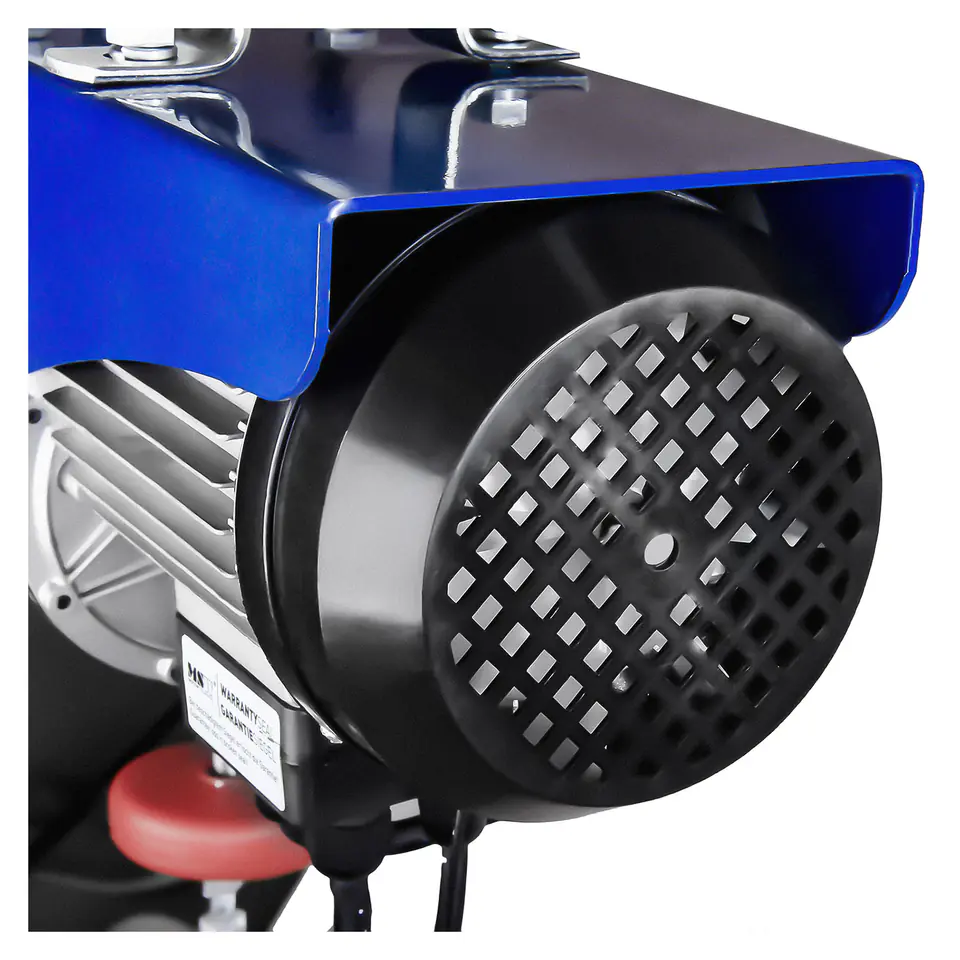

The device is made of durable steel, powder coated. The engine body is made of pressed aluminum.
The modern motor used for the winch has a magnetic mechanism with a stop function that allows immediate braking of the winch, which guarantees safety and precise and reliable operation.

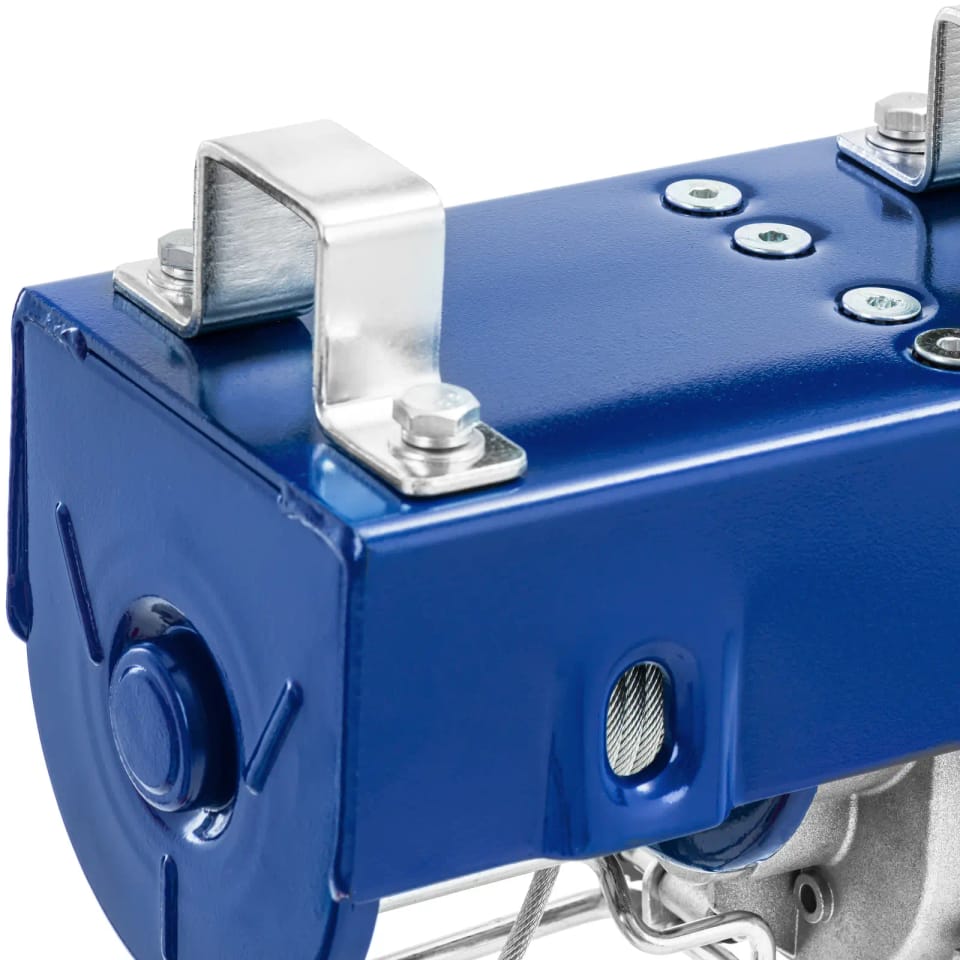

The winch can be mounted to a swing arm or to the supporting structure of a hall or warehouse. Two steel clamps are used to fix the device, which are included with the device.

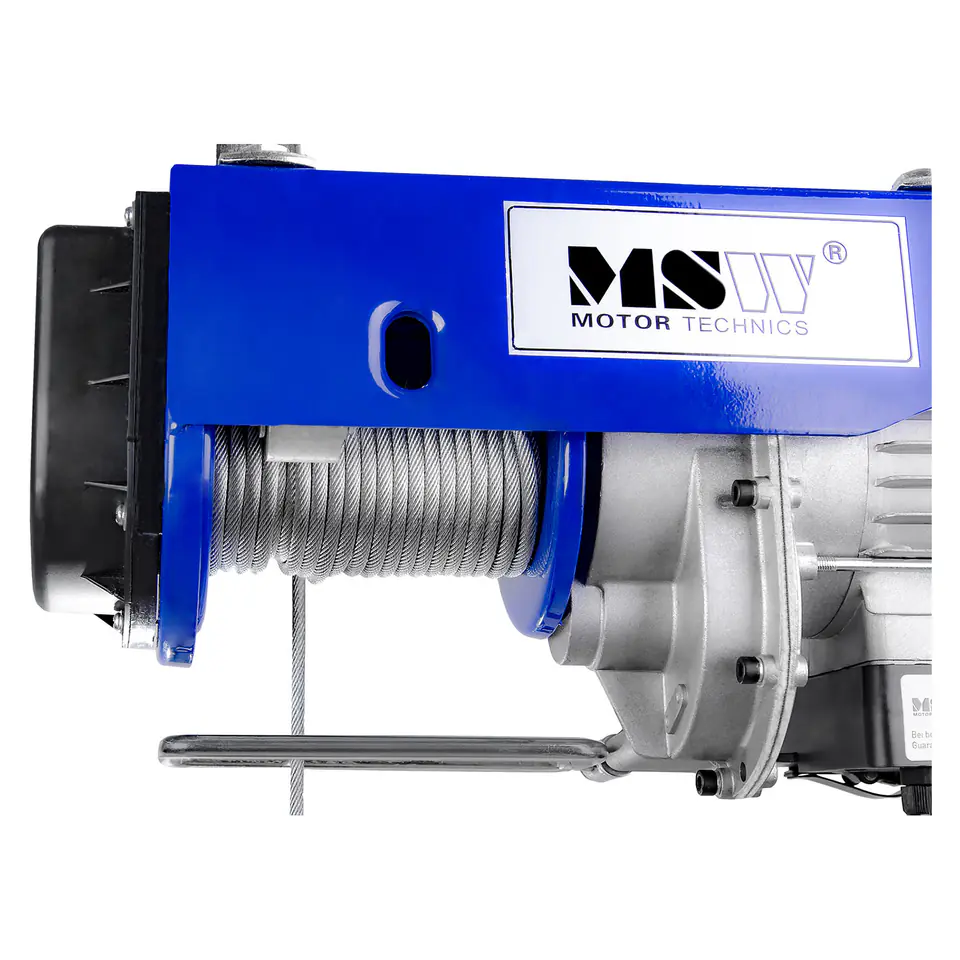

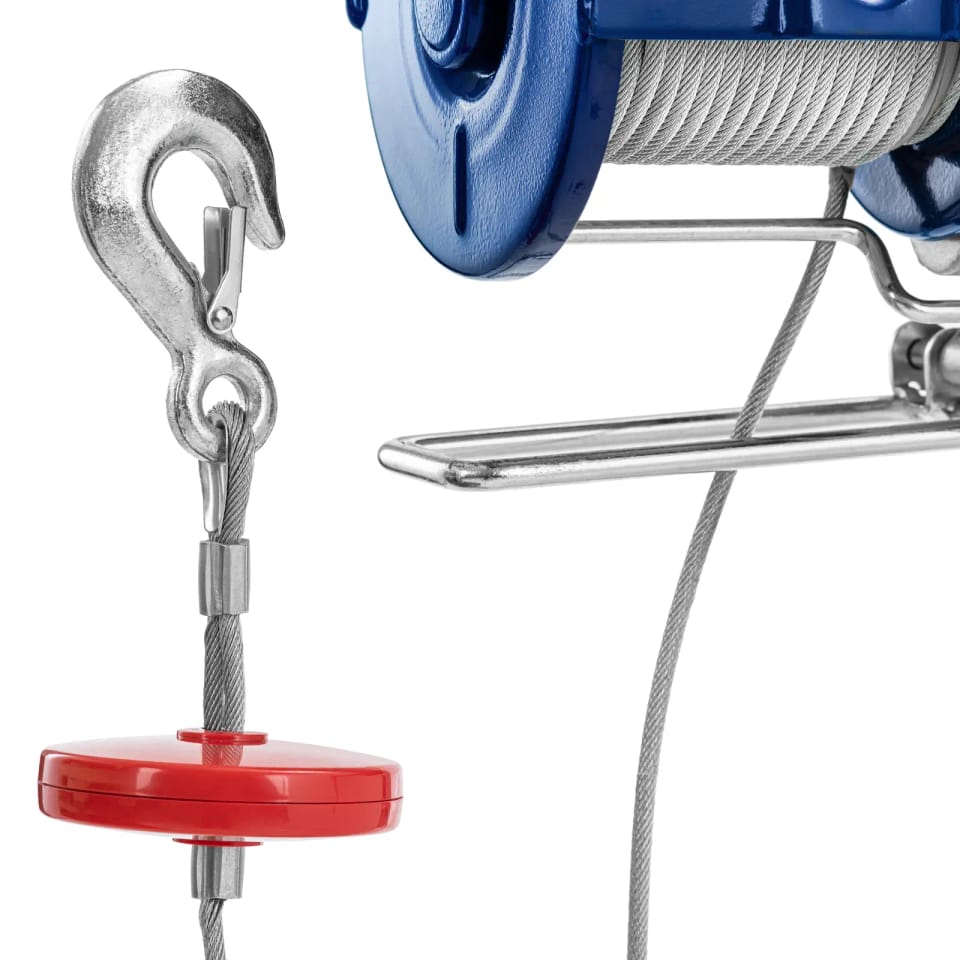

The drum for winding the rope is made of steel and has guides for accurate rope laying. A limit brake is mounted on the rope winding drum, which protects the device and the rope from excessive winding.
Another protection of the crane is a mechanism that protects the drum against excessive overload and locks the rope in the event of an interruption in the energy supply.
The rope mounted in the device is made of durable, stainless steel. It is a non-automatic rope – a special way of rope production that protects it from twisting during operation.

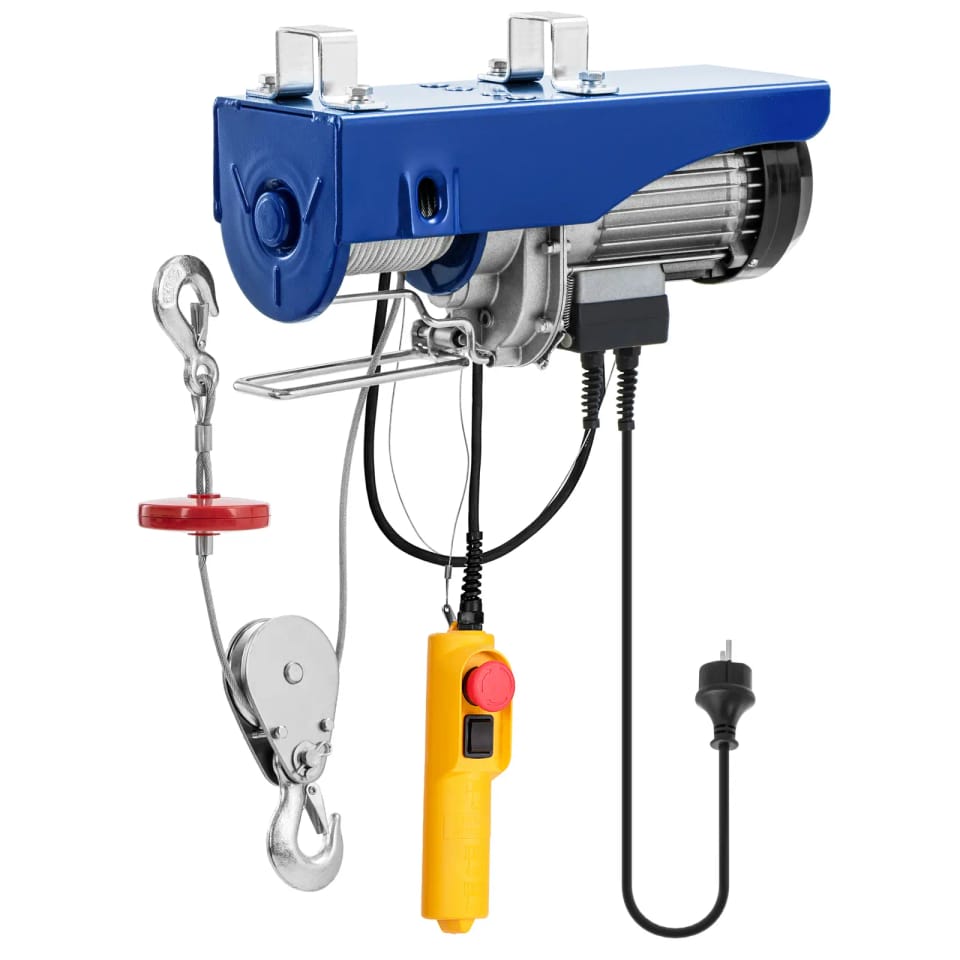

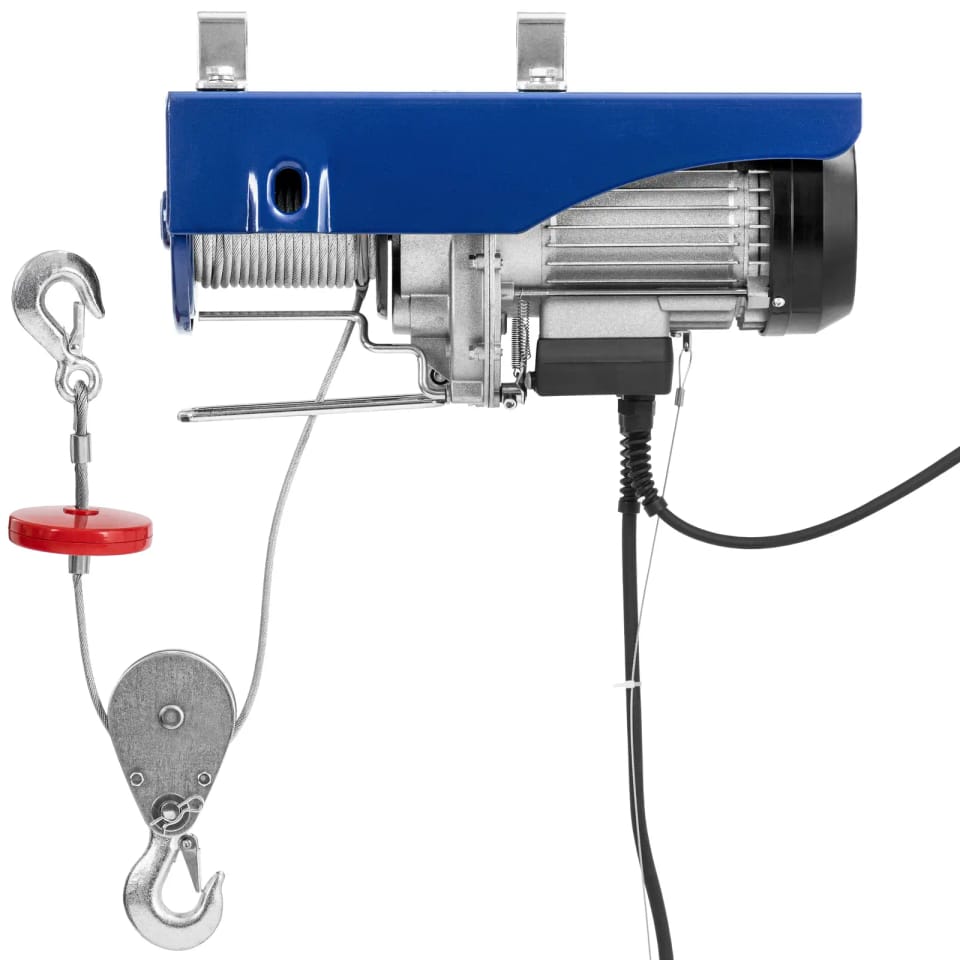

In the body of the device there is a place to fix the rope in the case of using a blob that doubles the lifting force.

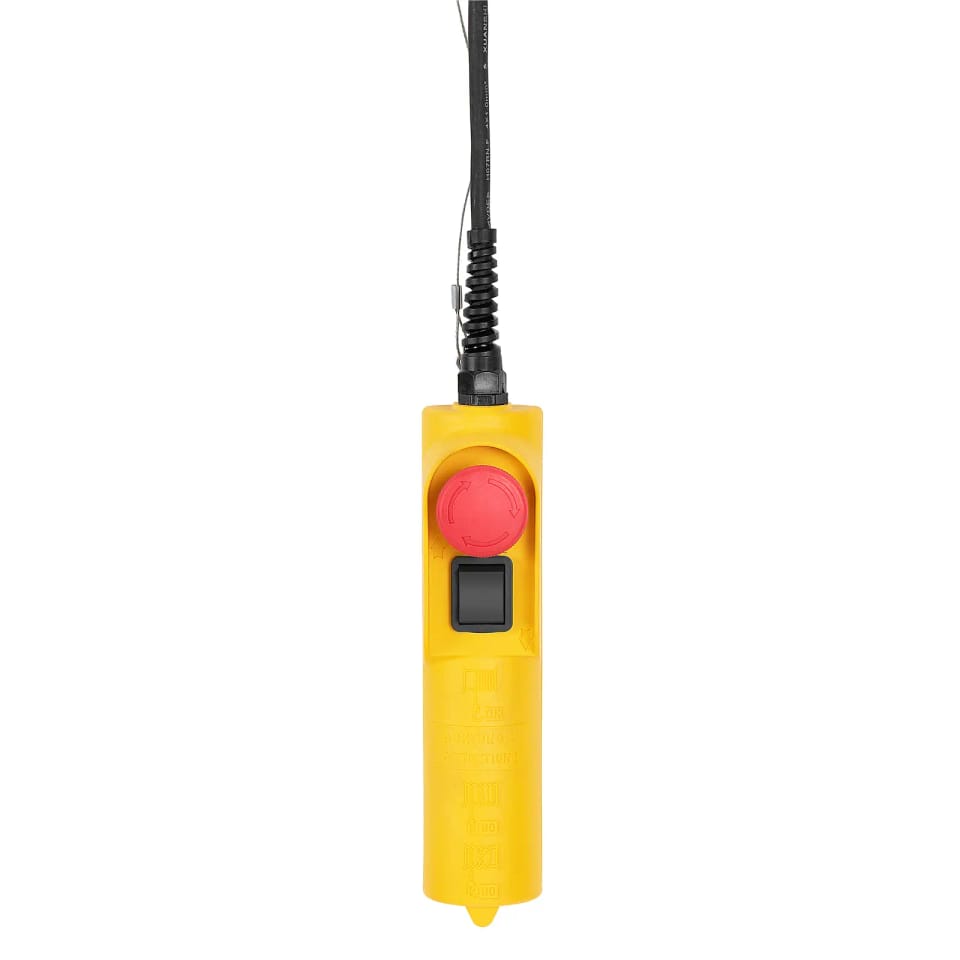

The control cassette – an integrated wired remote control – is equipped with a winch control button and a safety switch. All control can be done with one hand. The control cable is additionally protected by an anti-break cable and has a length of 135cm.

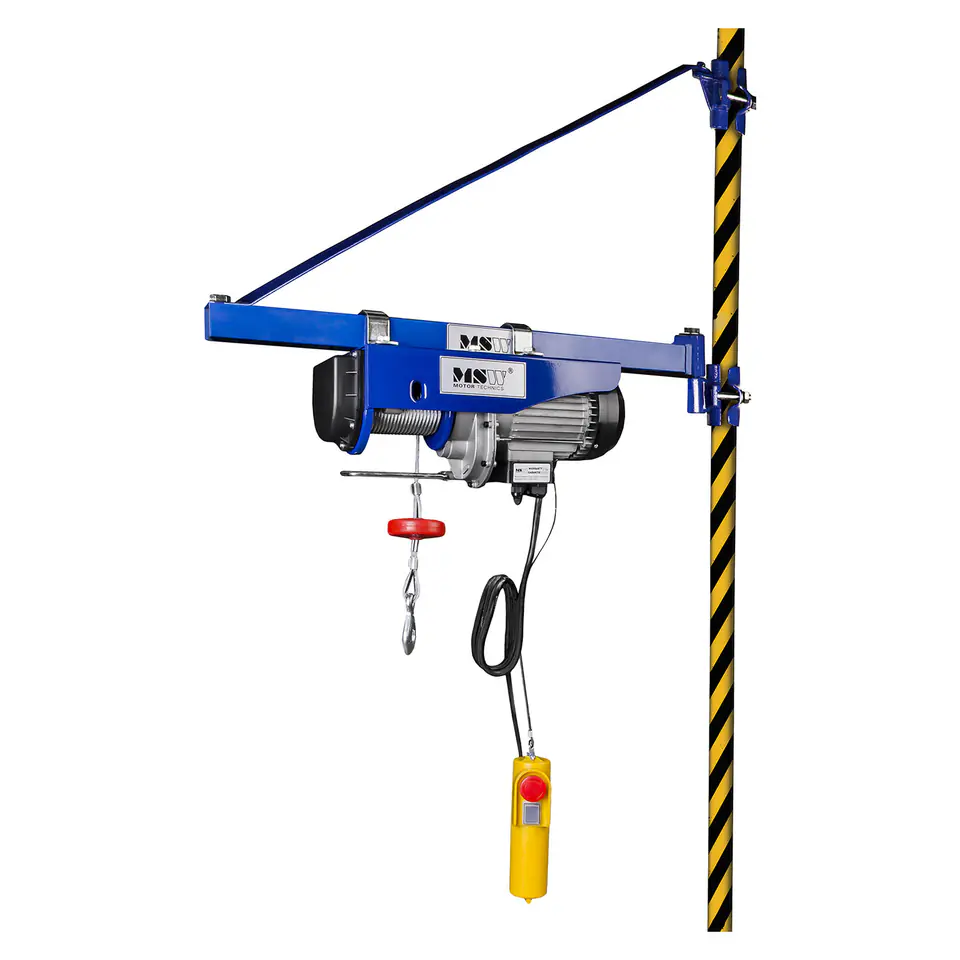

The rope crane mounted on the swivel arm is perfect for warehouses, production halls, hangars, loading ramps, car workshops and wherever proven and safe equipment for the heaviest tasks is required.
Technical parameters:
- - Model - PROLIFTOR 800
- - Catalogue number - 6008
- - Article status - New
- - Load capacity - 400 kg / 800 kg
- - Max. lifting capacity - 12 m / 6 m
- - Lifting speed - 8m/min. / 4m/min.
- - Rope length - 12 m
- - Rope diameter - 5.1 mm
- - Rope tear resistance - > 2000 kg
- - Break time at work - S3-20% 10 min.
- - Mains supply voltage - 230 V
- - Engine power - P1 1300W
- - Dimensions (LxWxH) - 45.5 x 21.5 x 15 cm
- - Weight - 19.3 kg
- - Shipping dimensions (LxWxH) - 51 x 17 x 30 cm
- - Shipping weight - 20.8 kg

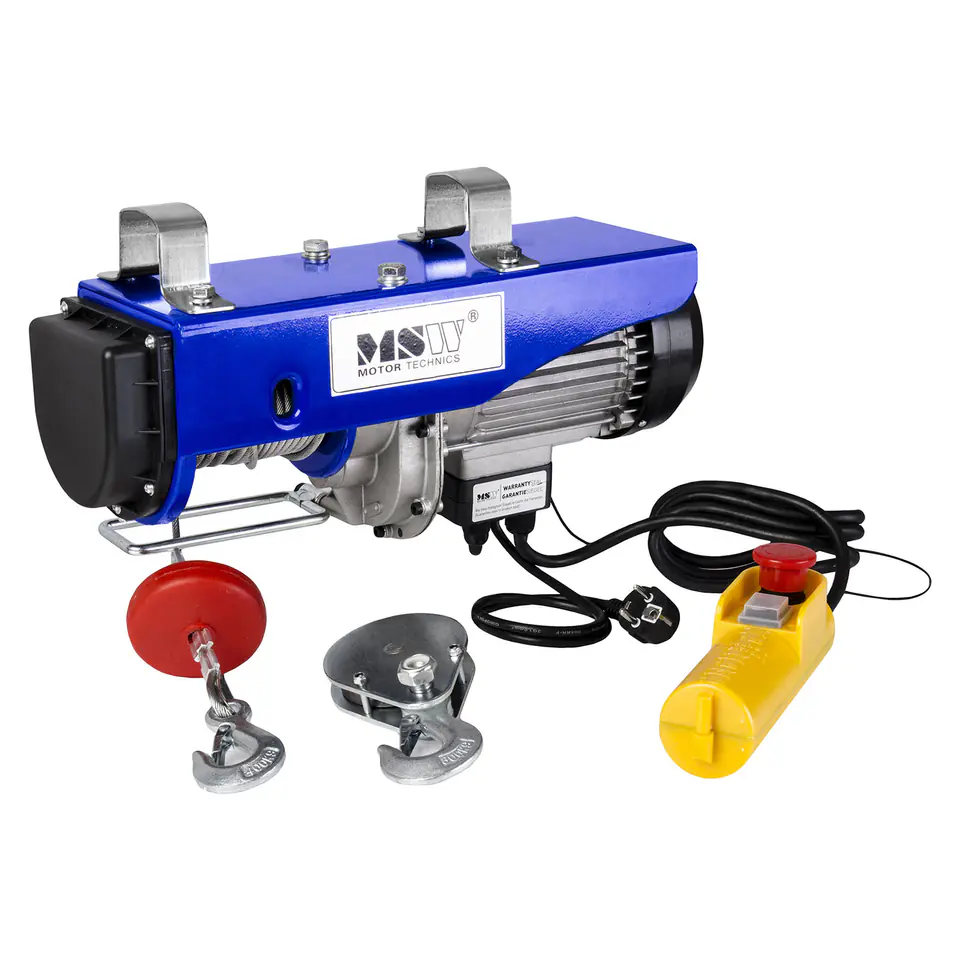

- - Rope winch
- - Wired remote control
- - Clamp – attachment to the profile or swivel arm

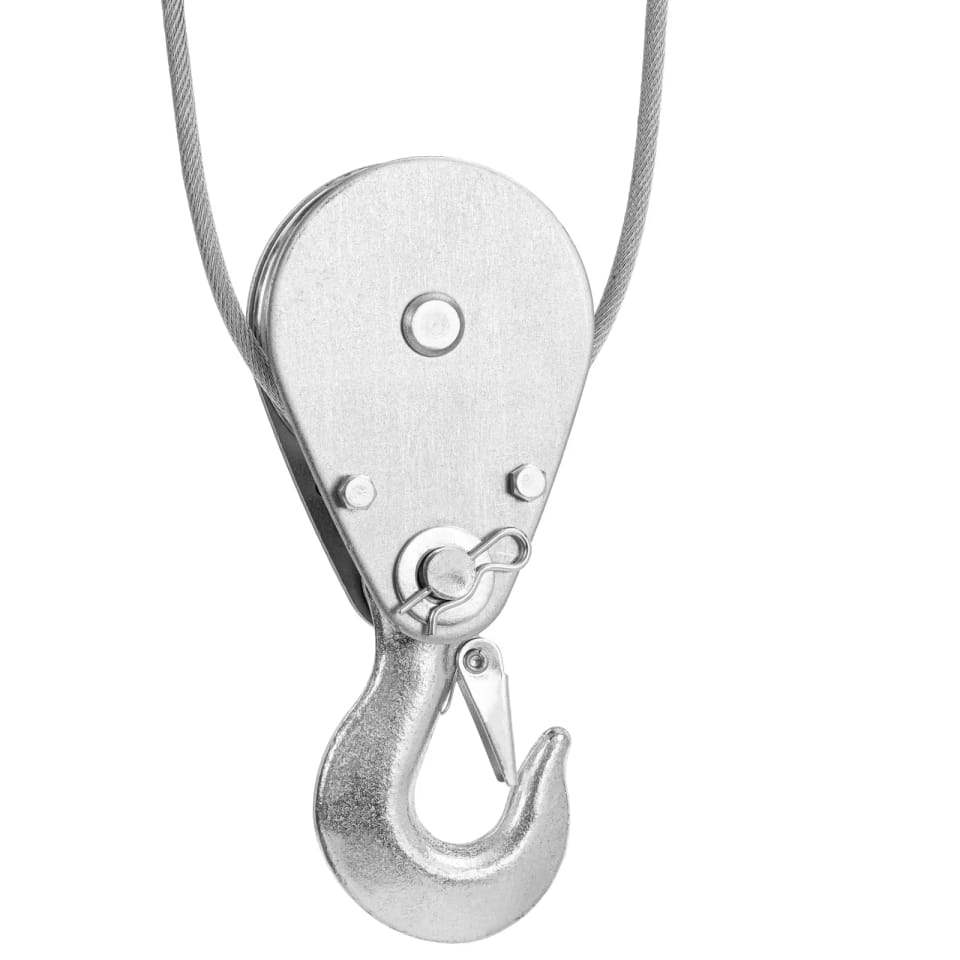

- - Zblocze with hook
- - Load hook
- - Steel rope with a length of 12 m
- - Manual EN
