External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz
ROGER PR312EM-BK-G ACCESS CONTROLLER
€143.27
Shipping from warehouse: H7
Estimated shipping: Fri, May 3 - Mon, May 6
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- PR312EM-BK-G / 5907608962097
Share this product:
Specification
| Average current consumption:: | 50 mA |
|---|---|
| Card reading range:: | Max. 15 cm |
| Card support:: | Unique EM 125kHz |
| Communication:: | RS-485 RACS (Roger) Possibility to attach a biometric reader (RFT1000 option) |

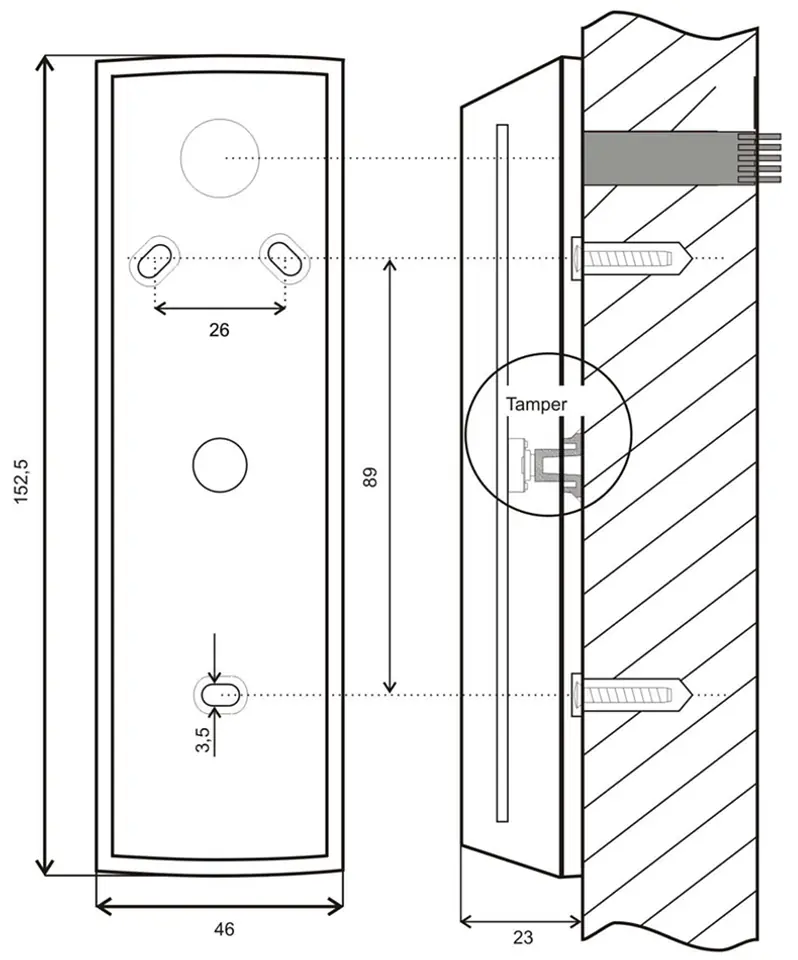

| Dimensions:: | 152.5 x 46 x 23 mm (Standard Enclosure Stand)152.5 x 46 x 35 mm (Thicker Case Stand) |
| Manufacturer / brand:: | ROGER |
| Operating temperature:: | -25 °C ... 60 °C |
| Permissible relative humidity:: | 10 ... 95 % (non-condensing) |
| Power:: | 10 ... 15 VDC |
| Scales:: | 0.18 kg |
| Selected features of the standalone mode:: | 4000 indexed users, 32000 event buffer, XM-2 I/O expander (Standalone Full Mode) |
| Selected features:: | Possibility to attach an additional reader (two-way transition control), 3 programmable NO/NC input lines, 2 programmable transistor outputs 1A, Programmable relay output 1.5A/30V, Any communication bus topology, 99 time schedules, 250 access groups, Possibility to attach an XM-2 type I/O expander, Integration with the alarm system via I/O lines, Door modes (Normal, Locked, Unlocked and Conditionally Unlocked), Identification modes (Card or PIN, Card and PIN, Card only, PIN only), Dual-user function, dual identification mode and other advanced access control functions, System management via WAN/LAN computer network, or COM/USB serial port, Possibility to divide the system into subsystems, Tamper protection (detection of detachment from the ground and opening of the housing), LED signaling, Sound signal |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
