External Card and Keychain Reader with Built-in ControllerStandard Unique 125kHz
ROGER PR311SE-BK ACCESS CONTROLLER
€146.64
Shipping from warehouse: D4
Estimated shipping: Wed, Nov 5 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- PR311SE-BK / 5907608962059
Share this product:
Specification
| Average current consumption:: | 50 mA |
|---|---|
| Card reading range:: | Max. 15 cm |
| Card support:: | Unique EM 125kHz |
| Communication:: | RS-485 RACS (Roger) |

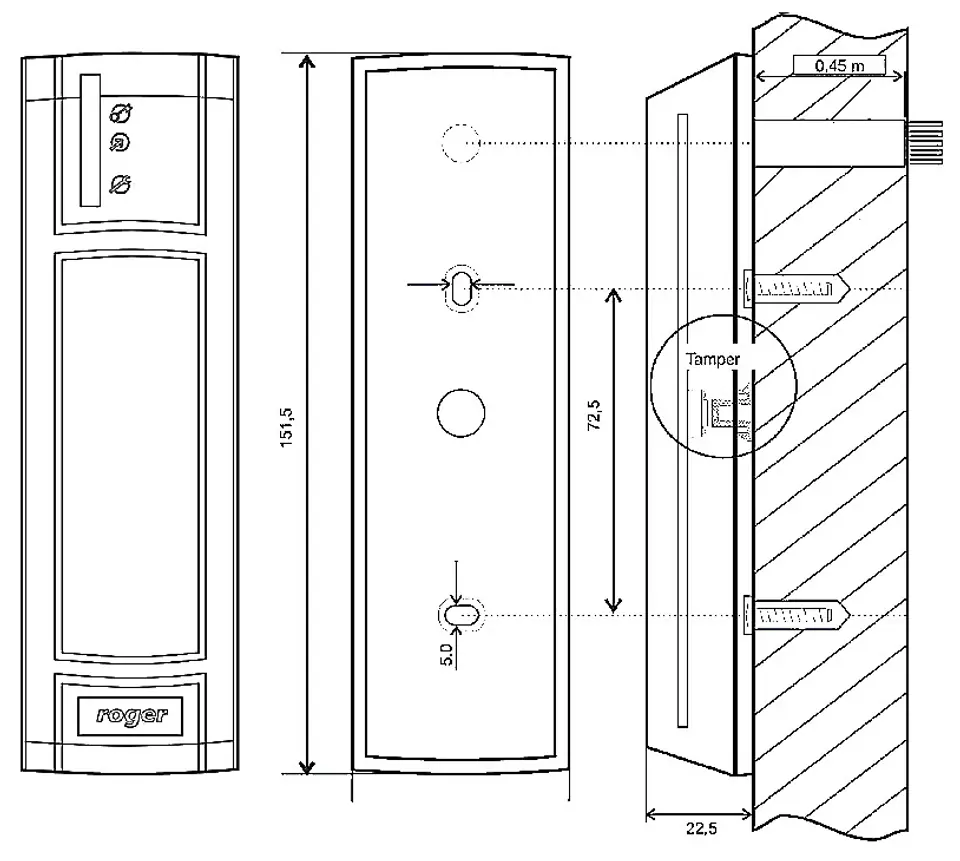

| Dimensions:: | 152.5 x 46 x 23 mm (Standard Enclosure Stand)152.5 x 46 x 35 mm (Thicker Case Stand) |
| Manufacturer / brand:: | ROGER |
| Operating temperature:: | -25 °C ... 60 °C |
| Permissible relative humidity:: | 10 ... 95 % (non-condensing) |
| Power:: | 10 ... 15 VDC |
| Scales:: | 0.18 kg |
| Selected features of the standalone mode:: | 1000 Indexed Users Work with XM-2 I/O Expander (Standalone Full Mode) |
| Selected features:: | Possibility to attach an additional reader (two-way transition control), 3 programmable NO/NC input lines, 2 programmable transistor outputs 1A, One programmable relay output 1.5A/30V, Door modes (Normal, Locked, Unlocked and Conditionally Unlocked), Any communication bus topology, Support for additional guest users defined individually on each controller, Integration with the alarm system via I/O lines, |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
