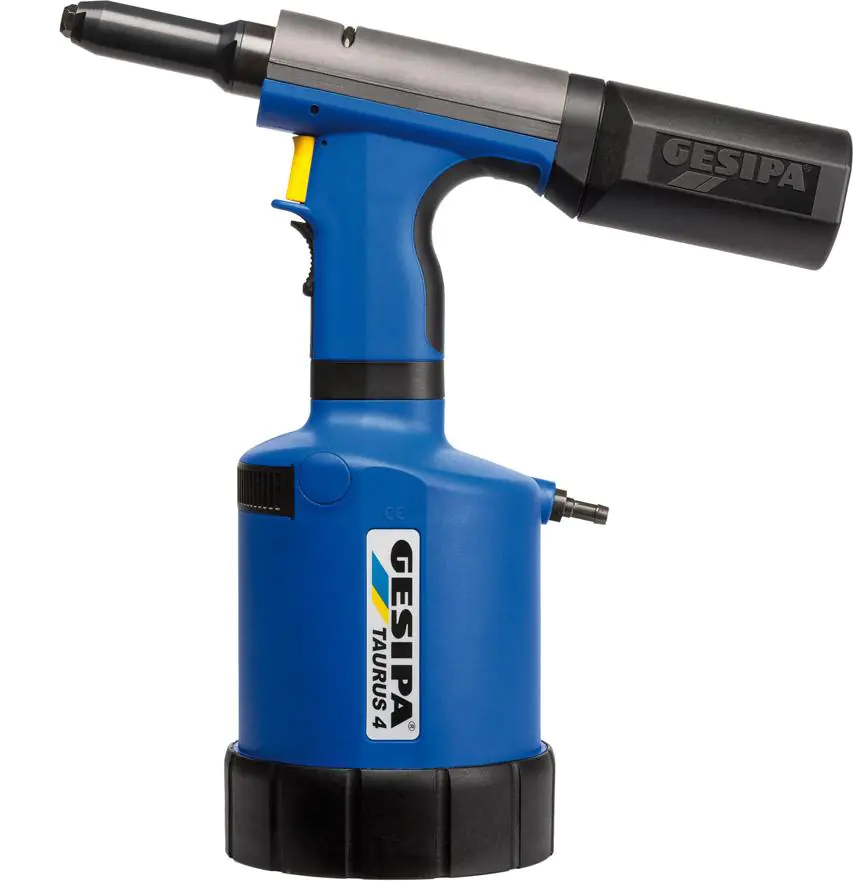

Riveting machine for one-sided closed rivets Taurus 4 GESIPA

Riveting machine for one-sided closed rivets, pneumatic-hydraulic TAURUS 4
Execution: With integrated stem protection system. In the base of the device fastening to replaceable sockets. Compressed air is used to deposit rivets and to suction broken pins. The improved gripping jaw system increases tool life many times. Compressed air supply located at the rear prevents accidental damage by the hose. The aspiration of rivets can only be activated when the instrument is lifted. Retractable hanging handle mounted on the tool head. Optimal crushing force, low weight in relation to performance, working stroke adapted to fast work. In addition, the riveter contains a container for broken pins and has a handy handle.
Use: For single-sided locking rivets up to 6.4 mm diameter in all materials and up to 8 mm diameter in aluminium (max. shaft diameter 4.5 mm).
Kit Contents: Riveting machine for one-sided closed rivets TAURUS® 4, 3 sockets 17/36, 17/40, 17/45, 2 mounting keys 12/14 and 14/17, bottle of hydraulic oil 100 ml,
Bottle for oil replenishment.
Cap assignment:
Rivet Ø; materials; cap
2,4; Al; 17/18
3,2; Al CAP, Cu CAP; 17/18
3; Al/Cu; 17/20
3 and 3.2; Al, Cu, steel, stainless steel, Stinox, Al/Al, Al PG, PG steel; 17/24
4; Al, Cu, Al CAP, Cu CAP; 17/24
4; steel, Al/Al, Al PG; 17/27
4; stainless steel, Stinox, PG steel; 17/29
4.8 and 5; Al, Al CAP, Cu CAP, Al PG; 17/29
4.8 and 5; steel, Al/Al; 17/32
4.8 and 5; stainless steel, Stinox, PG steel; 17/36
6; Al; 17/36
6; steel; 17/40
6,4; Al; 17/40
6,4; steel, Al/Al; 17/45
8; Al; 17/45
