Riveting machine 1-str.zamyk. iBirdPro, 25mm travel GESIPA L-BOXX

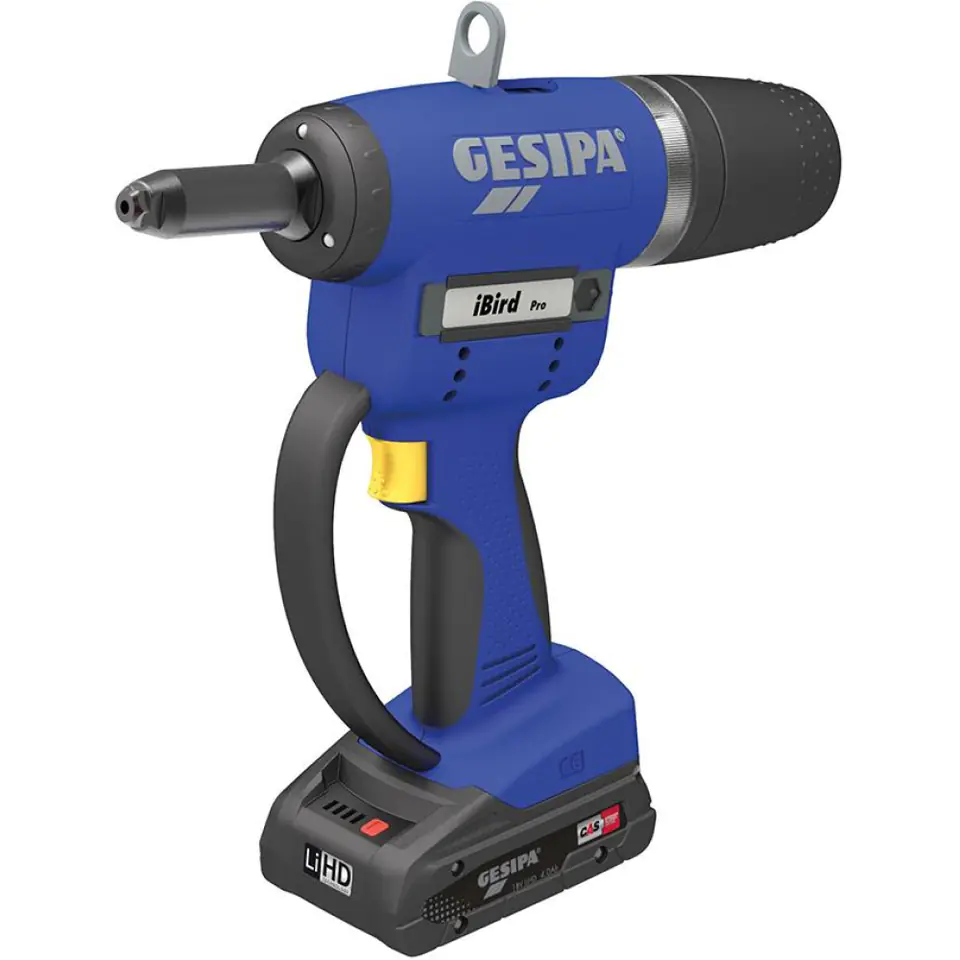

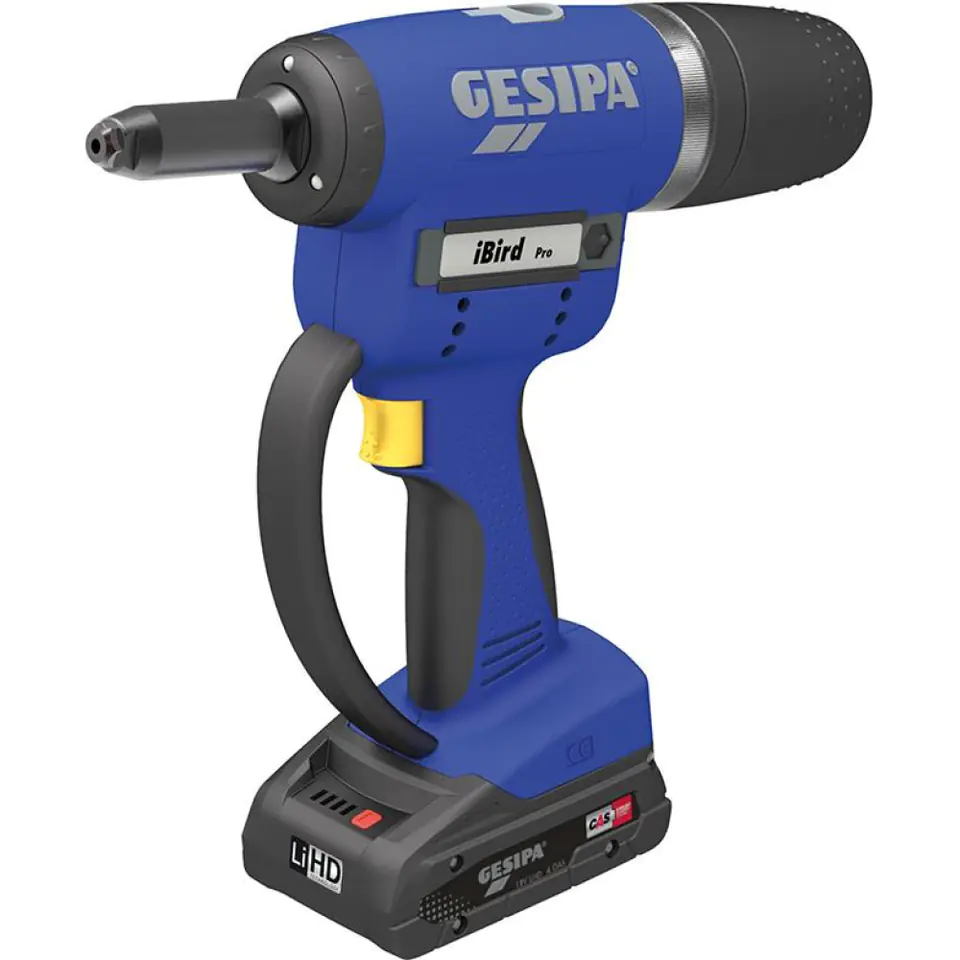

iBird® Pro Cordless Riveting Tool

Implementation: connection to the iBird® app via WiFi or Bluetooth in a very simple way via QR code. Connect to up to 3 smartphones, tablets or PCs at the same time. The iBird® Pro app shows battery status, odometer status, special events such as the fill level of the container for collecting used rivet stems, a fault message, maintenance instructions, and history, among other things. Signal ring (Andon) for visualization of riveting processes / messages, colors individually adjustable via app. The broken rivet pins are removed by tilting backwards into the container or forward through the cap. The balance of the center of gravity and the shape of the handle allow you to work effortlessly.

Application: for one-sided closed rivets from Ø 4.8 mm steel to Ø 6.4 mm from all materials, up to Ø 8 mm from aluminum, except G-Bulb with Ø 6.4 mm. BULB-TITE® one-sided closed rivets up to Ø 7.7 mm in all materials. MEGA GRIPR one-sided closed rivets up to Ø 6.4 mm in all materials.

Scope of delivery: iBird® Pro riveting machine, 4 sockets 17/32, 17/36, 17/40, 17/45, quick-change battery 18 V/2.0 Ah, fast charging charger 12.0 V to 36.0 V, mounting key, L-Boxx.

Note: The Premium software is available separately and also includes a rivet deposition process assistant. Here you can add riveting configuration, to-do lists for different configurations, and evaluation of the rivet deposition process. Connection to the network offers many additional benefits, such as control of the riveting process, safe processing, status and service information indication, and quick and easy access to operation, maintenance and repair manuals. All this leads to the optimization of the value chain.

Socket assignment:
Ø rivet materials, pcs./battery charging cap
,8 and 5 steel 700 17/32
,8 and 5 stainless steel 560 17/36
aluminium 560 17/36
steel 300 17/40
,4 aluminium/aluminium PG 420 17/45
,4 steel 250 17/45
aluminium 350 17/45
