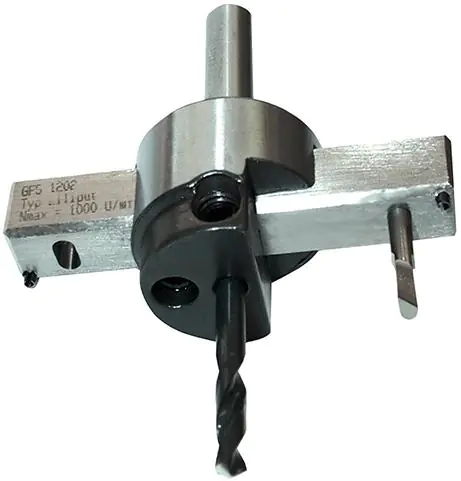

Ring cutter. LILIPUT, grip cylinder. 10.0mm GFS

€273.76
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Fri, Aug 29 - Mon, Sep 1
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
GfS
Product code:
21010000 / 4033591019201

Specification

Cutting range:18-80 mm
Grip ø mk/mm:10 mm

Ring cutter

Application: with the GFS ring cutter can be cut both in sheets with a thickness of up to 5 mm and in plastics, sealing materials, etc. up to about 30 mm thick. Thanks to special knives, it is also possible to cut in thicker materials. With the help of an adjustable clamping mechanism, different diameters can be set without problems. For cutting holes in metal sheets, composite materials and plastics. Lossless cutting in flexible materials is performed with suitable knives (HSS-E and HSS-E with TiN coating, with soldered cemented carbides).

For holes from 18 mm to 80 mm. The knives are fixed directly on the crossbeam. One slot for straight and continuous cuts.
Kit Contents:
1 centering drill with a diameter of 5 mm.
1 HSS knife No. 122 for thin sheets. Possibility of fixing the knife for continuous cutting No. 122 and for straight cutting No. 2 and No. 3.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
