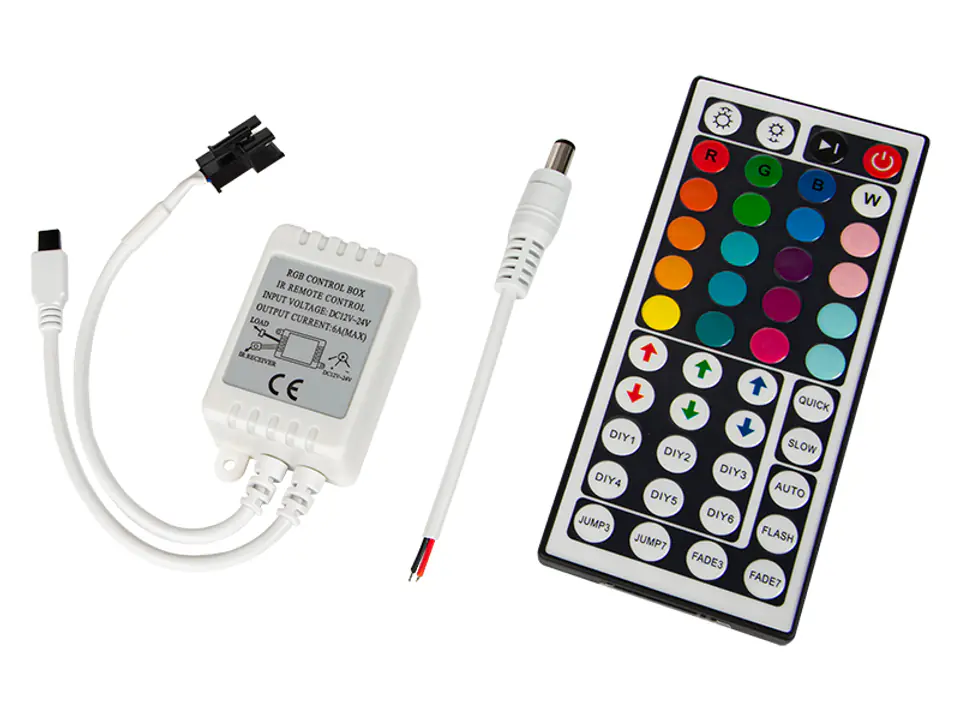

RGB LED strip driver 44-KEY pil. IR HQ

Driver for RGB tapes working in IR technology. Control of the controller's work is carried out using an infrared remote control. The device is used in advanced lighting systems of modern premises, houses, clubs, etc. It is perfect for highlighting advertisements, stages, shop windows, furniture, creating light accents. An additional feature is the ability to define your own colors and shades and save them in the device's memory. Installation and connection is simple and intuitive. The controller has a socket for connecting RGB tape.

REMOTE CONTROL FEATURES:
- ON/OFF button
- PAUSE/PLAY button to stop the sequence at any time
- Speed up/speed down program to control sequence speed
- Buttons to control the backlight level
- 20 buttons permanently activating colors: red, green, blue, white and four shades of these colors
- FLASH button to display the following colors: red, green, yellow, blue, magenta, turquoise,  white
- AUTO button to start the display of demo mode
- FLASH button activating the quick strobe function for white color
- JUMP3 button to trigger RGB colors
- JUMP7 button activating colors: white, cyan, yellow, green, purple, blue, red
- FADE3 button activates RGB colors with smooth transition
- FADE7 button that starts a slow sequence of smooth transition of the following colors: red, yellow, green, turquoise, blue, purple, white. Pastel and intermediate colors are also reproduced between saturated colors.
- 6 DIY buttons for defining your own color shades and saving them to memory
- 6 RGB color intensity buttons


TECHNICAL DATA:
- Input voltage: DC 12V
- Output voltage: DC 12V
- Output: 3 channels
- Maximum current: < 2A for each channel separately
- Working temperature: -20~60°C
- Dimensions: 50 x 35 x 22 mm
- Weight: 25g
