AC type residual current circuit breaker with rated residual current IΔn = 30mAWead switch LE-411708 is designed for mounting on DIN rail TS-35

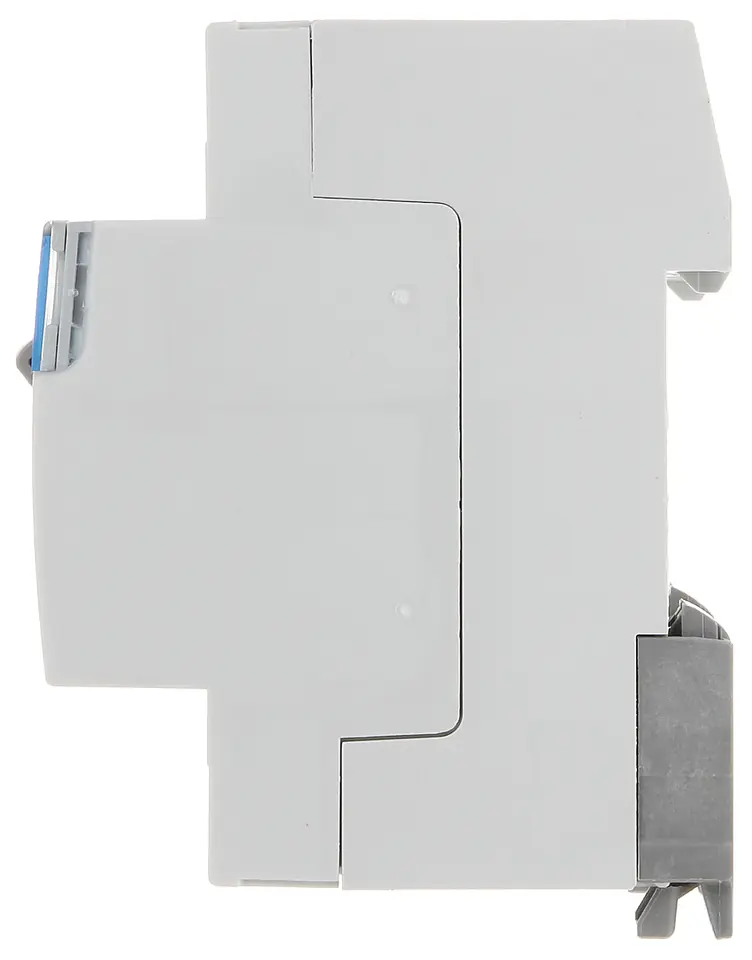

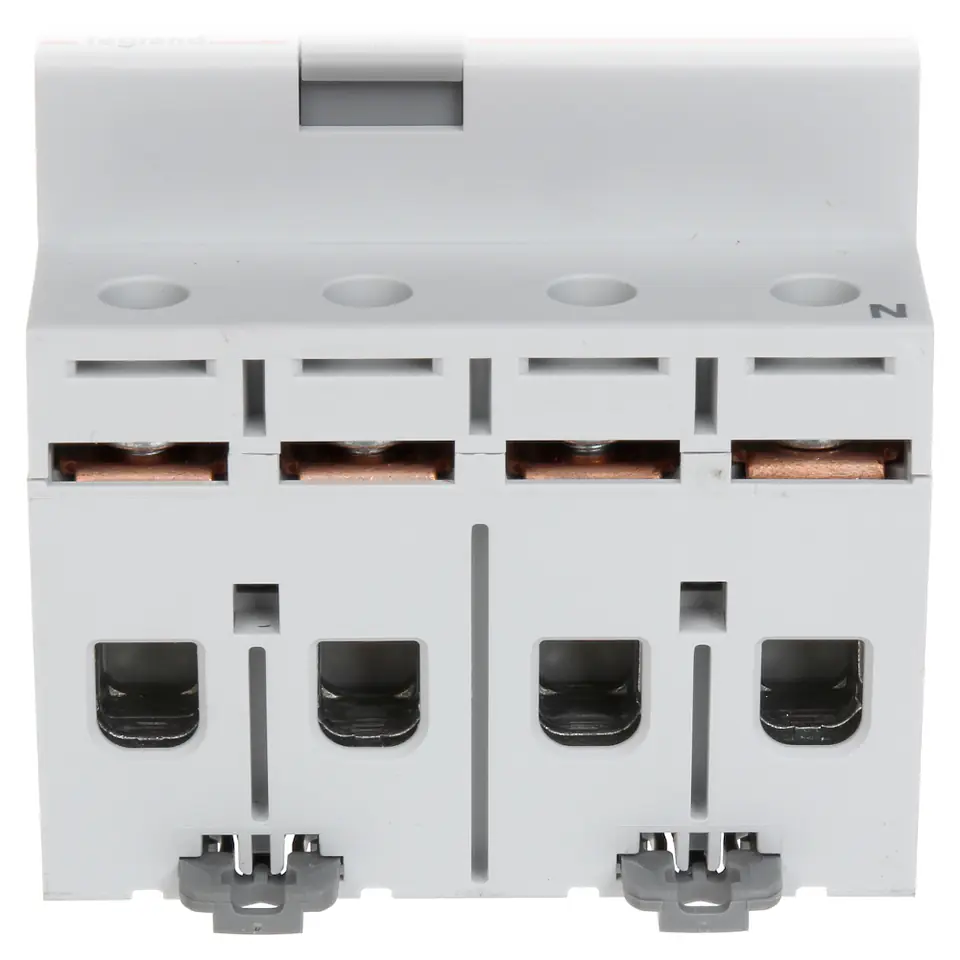

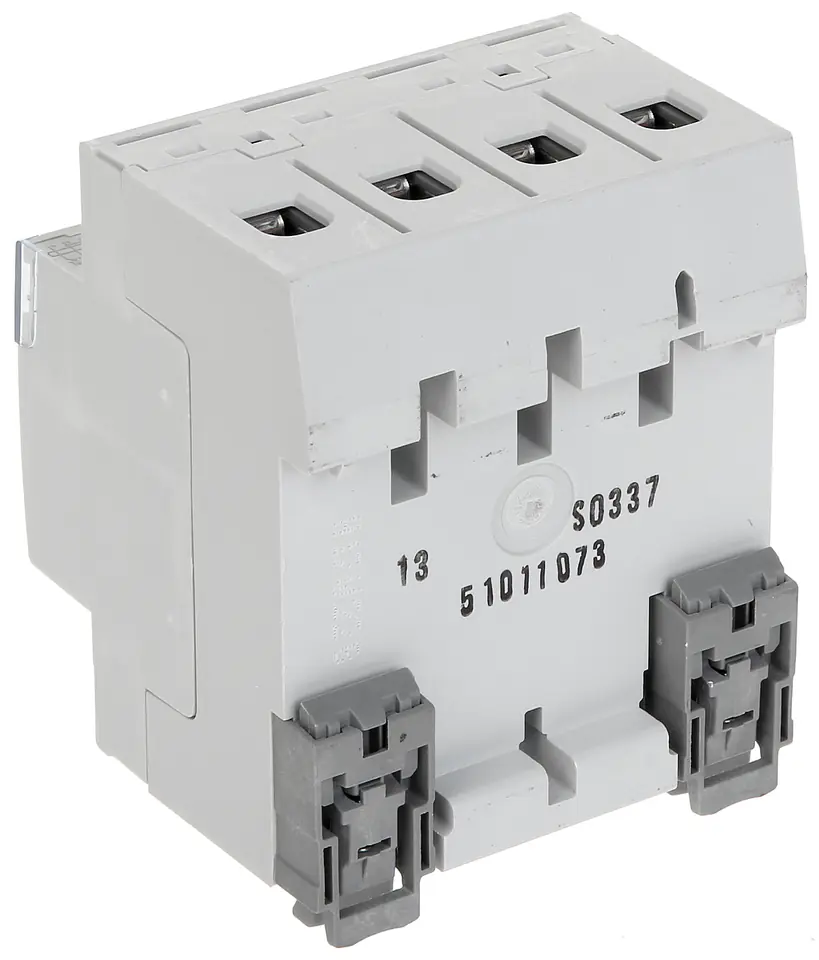

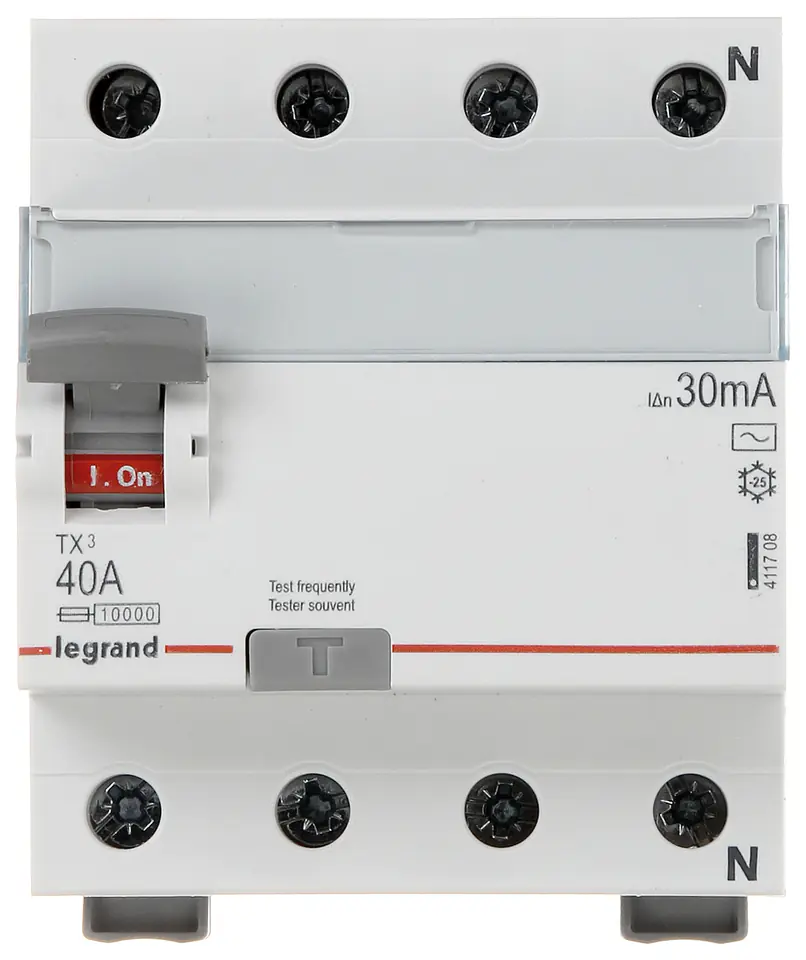

RESIDUAL CURRENT CIRCUIT BREAKER LE-411708 THREE-PHASE, TYPE AC 30 mA 40 A LEGRAND
€57.04
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- LE-411708 / 3414970353085
Share this product:
Specification
| Case: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Connector type: | screwed clamps |
| Current: | 40 amps |
| Dimensions: | 71 x 83 x 75 mm |
| Number of poles: | 4 |
| Producer / brand: | LEGRAND |
| Rated residual current: | 30 mA |
| Rated short-circuit switching capacity: | 10000 A |
| Scales: | 0.310 kg |
| Selected features: | Can be equipped with auxiliary contacts, triggers and drives from the DX3 series Provided space for a description card Can be connected using comb or stick rails |
| Type of device: | RCD, Three-phase, Type AC |
| Voltage: | 400 VAC / 50 Hz |
| Warranty: | 2 years |
| Width in modules 17.5 mm: | 4 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
