AC type residual current circuit breaker with rated residual current IΔn = 30mAThe LE-411510 switch is designed for mounting on the TS-35 DIN rail

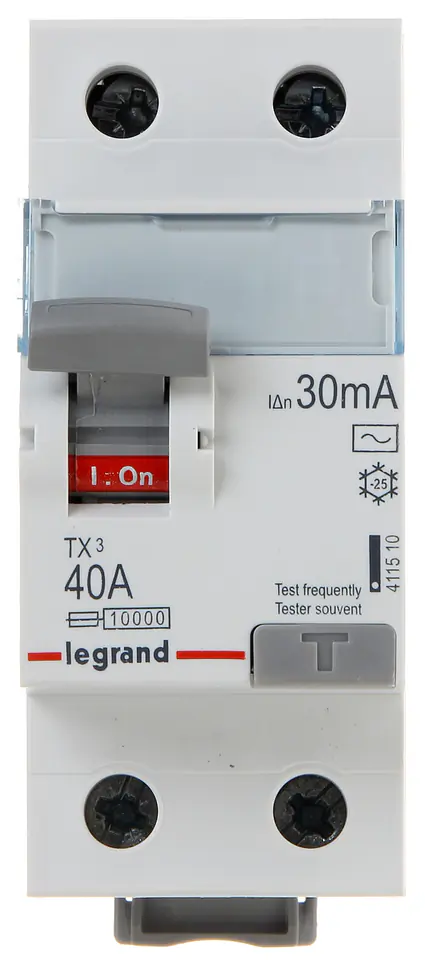

RESIDUAL CURRENT CIRCUIT BREAKER LE-411510 SINGLE PHASE, TYPE AC 30 mA 40 A LEGRAND
This product is not available
- Availability:
- expected delivery
- Brand:
- Legrand
- Product code:
- LE-411510 / 3414970352422
Share this product:
Specification
| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Connector type:: | screw terminals |
| Current:: | 40 A |
| Device type:: | Residual current circuit breaker, Single phase, Type AC |
| Dimensions:: | 36 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles:: | 2 |
| Rated differential current:: | 30 mA |
| Rated short-circuit switching capacity:: | 10000 A |
| Scales:: | 0.186 kg |
| Selected features:: | Can be equipped with auxiliary contacts, triggers and drives from the DX3 series Provided space for a sheet of paper with a description Can be connected using comb or stick rails |
| Voltage:: | 230 V AC / 50 Hz |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 2 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
