Multimedia housing cabinets used in particular to place cable endings led to them, place active or passive devices and, if necessary, with - supply electricity, as well as enabling signal distribution in the apartment in accordance with the Regulation of the Minister of Infrastructure on technical conditions to be met by buildings and their location.
Dimensions
- Width 250 mm
- Height 350 mm
- Depth 90 mm

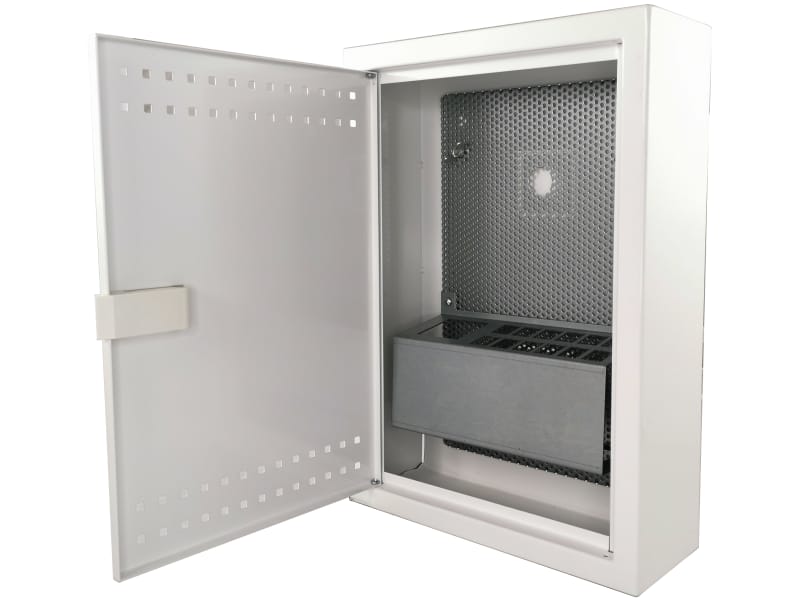

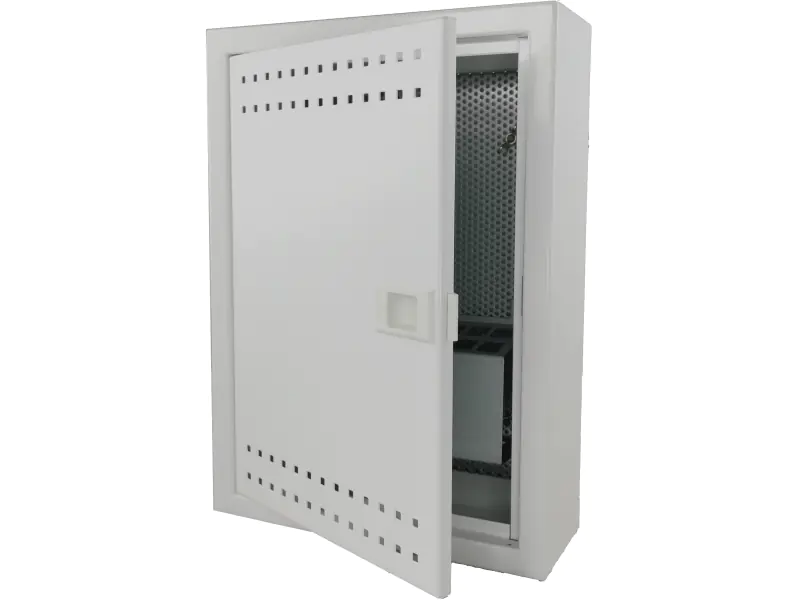

FTTx cabinet, vertical, surface-mounted
- White color as standard, others available on special order.
- The cabinet is equipped with an openwork back wall that allows you to install an active device or mounting plate anywhere.
- In addition, the cabinet is equipped with a screw-on panel for: 14 RJ sockets and a hole dedicated to the 45x45 mm power socket.
- Cable pass-throughs were cut out on each side of the body.
- Door closed with a plastic latch.
- The body is made of galvanized sheet.
- It is possible to replace the latch with an optional key lock.
Technical drawing in DWG format
- To download click here
