It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

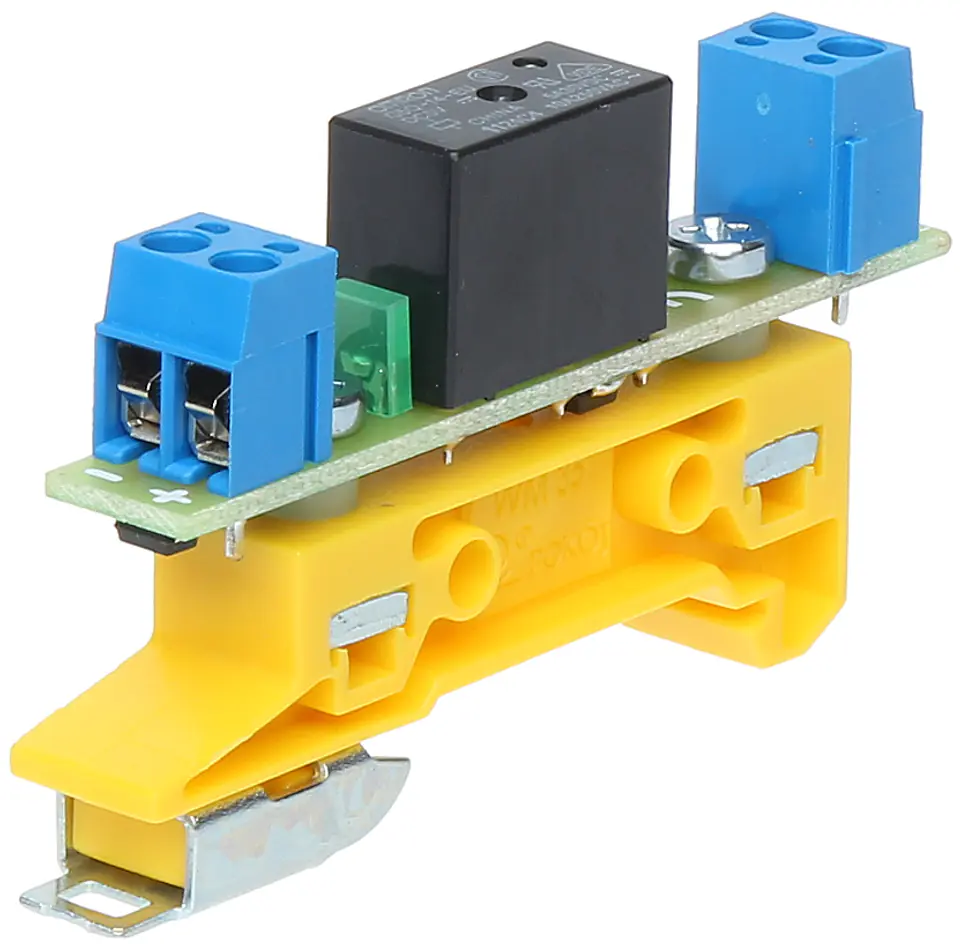

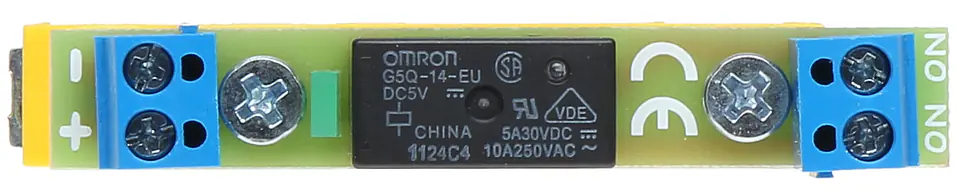

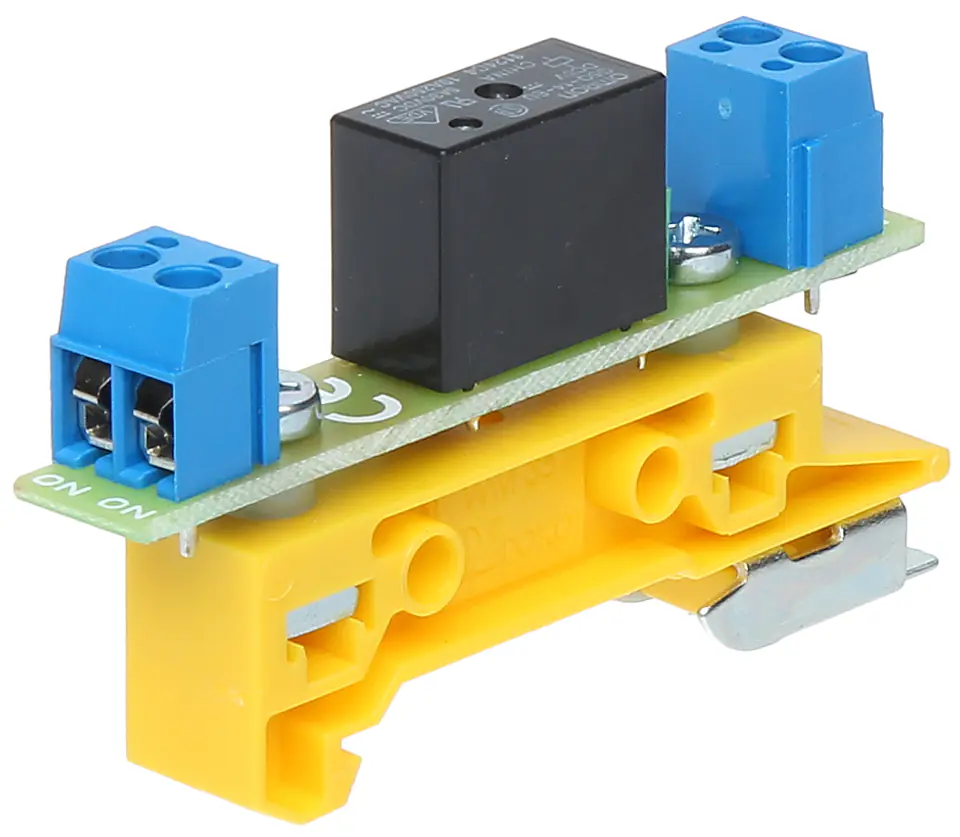

RELAY MODULE PK1-5-ZD DELTA
€5.78
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PK1-5-ZD / 5902887039263
Share this product:
Specification
| -40 °c ... 85 °c: | Operating temperature: |
|---|---|
| 0.03 kg: | Scales: |
| 1: | Number of relay outputs: |
| 3 years: | Warranty: |
| 5 ... 9 volts dc: | Power: |
| 5 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 73 x 12 x 41 mm: | Dimensions: |
| 80 ma / 5 v dc: | Current consumption: |
| Delta: | Manufacturer / Brand: |
| Din rail mounting, ts-35, led signaling, protection : surge protection, reverse connection: | Selected features: |
| Relay for controlling electric strike, bolt or electromagnetic interlock: | Use: |
| Yes: | Egress: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
