It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

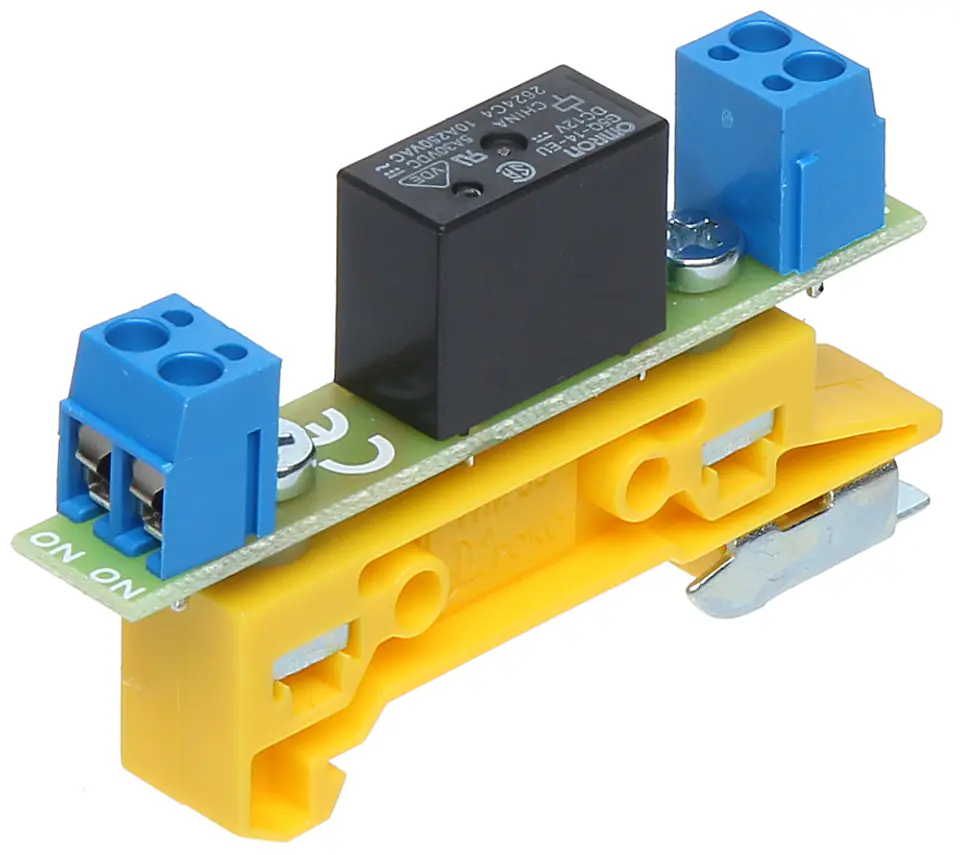

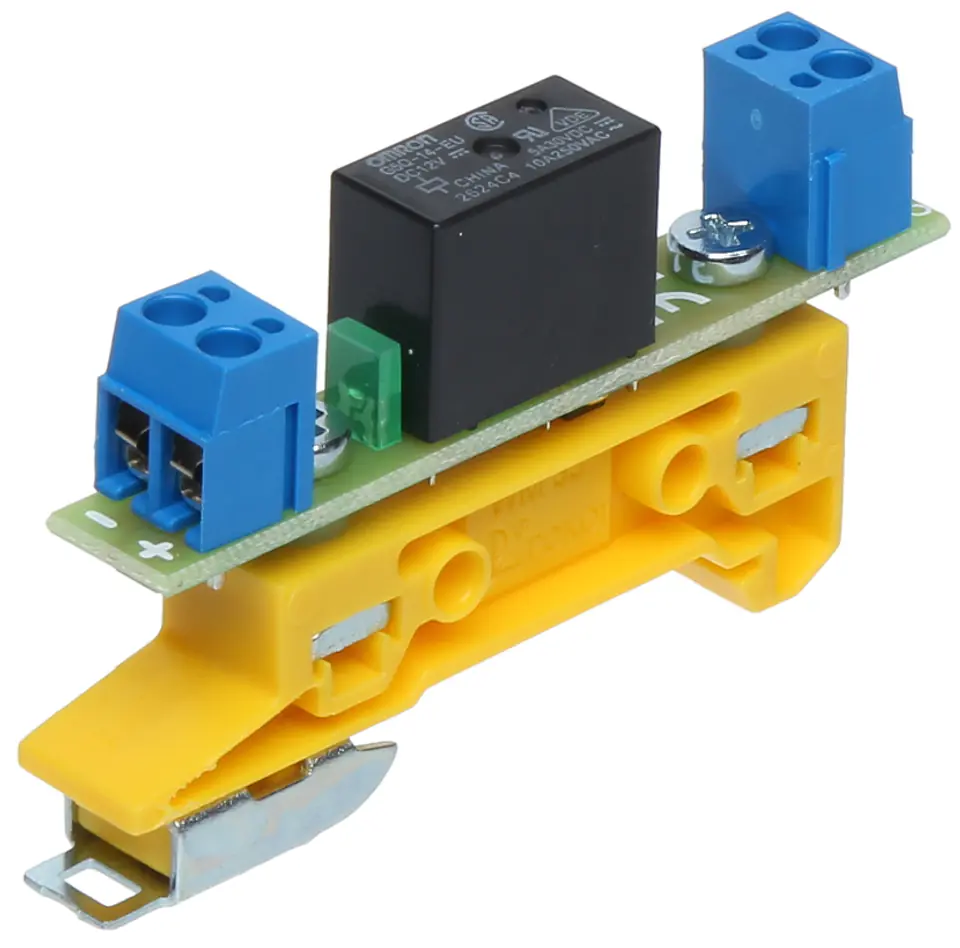

RELAY MODULE PK1-12-ZD DELTA
€8.92
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PK1-12-ZD / 5902887048371
Share this product:
Specification
| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.03 kg: | Scales: |
| 1: | Number of relay outputs: |
| 10 ... 16 vdc: | Power: |
| 10 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 3 years: | Warranty: |
| 35 ma 12 vdc: | Current consumption: |
| 73 x 12 x 41 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Din rail mounting, ts-35, led signaling, protection : surge protection, reverse connection: | Selected features: |
| Use: | Use: |
| Yes: | Egress: |
