It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

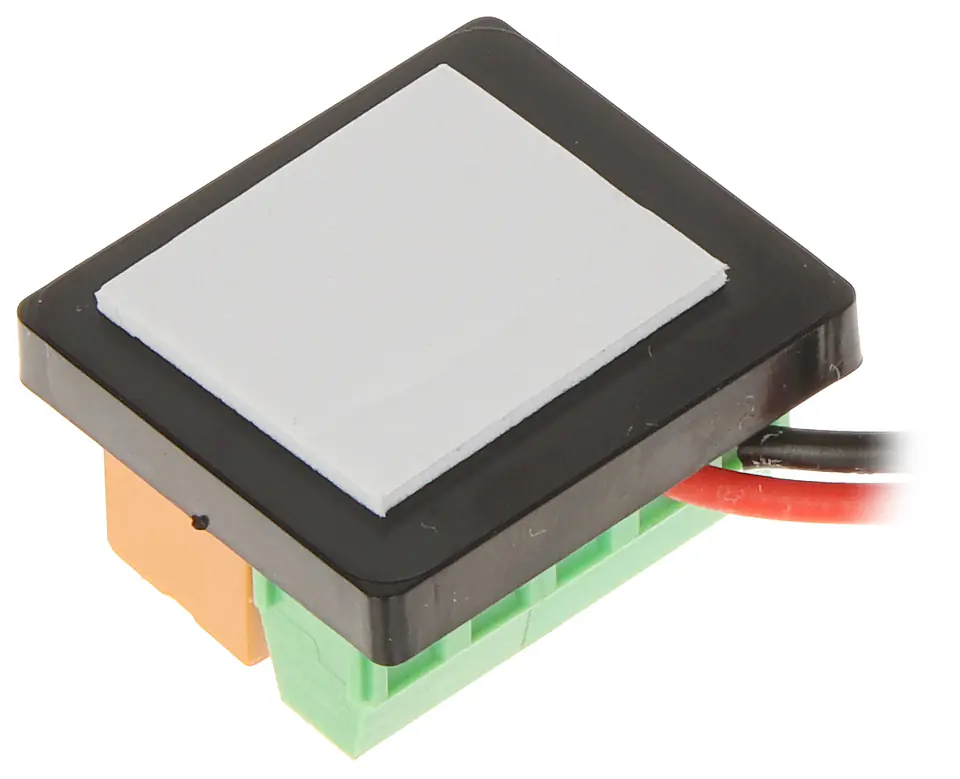

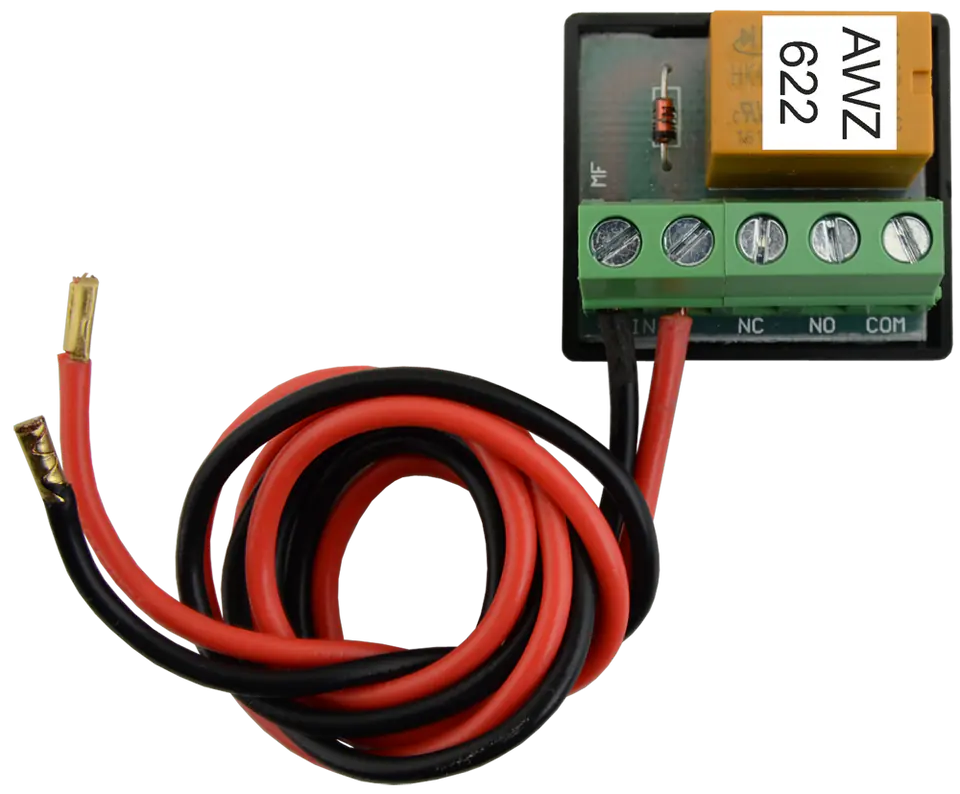

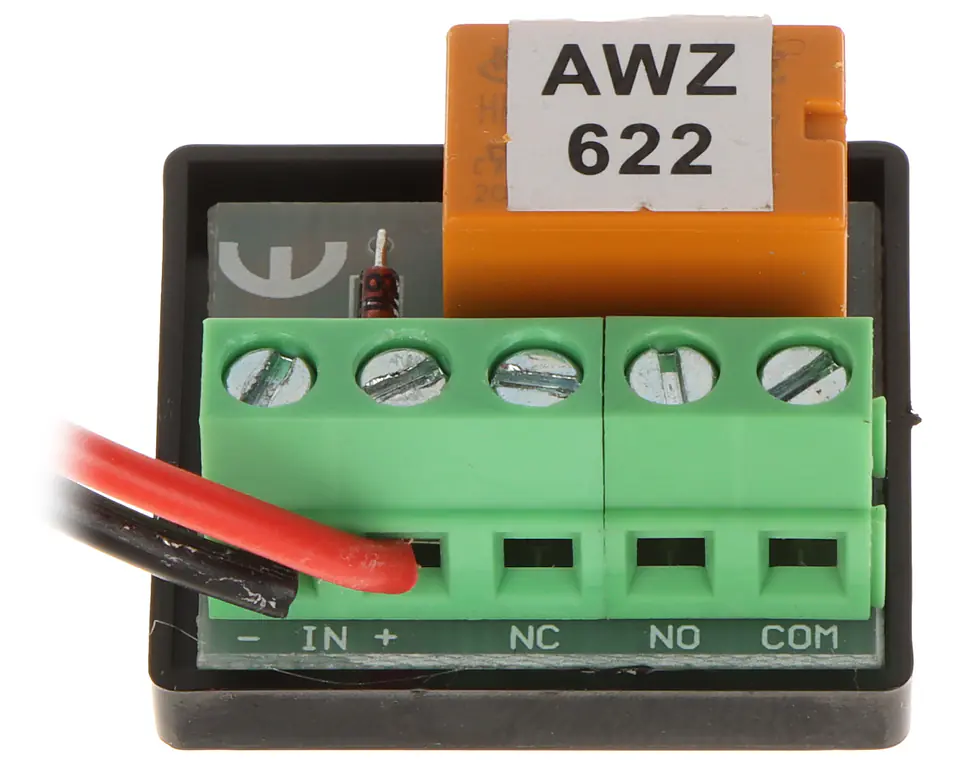

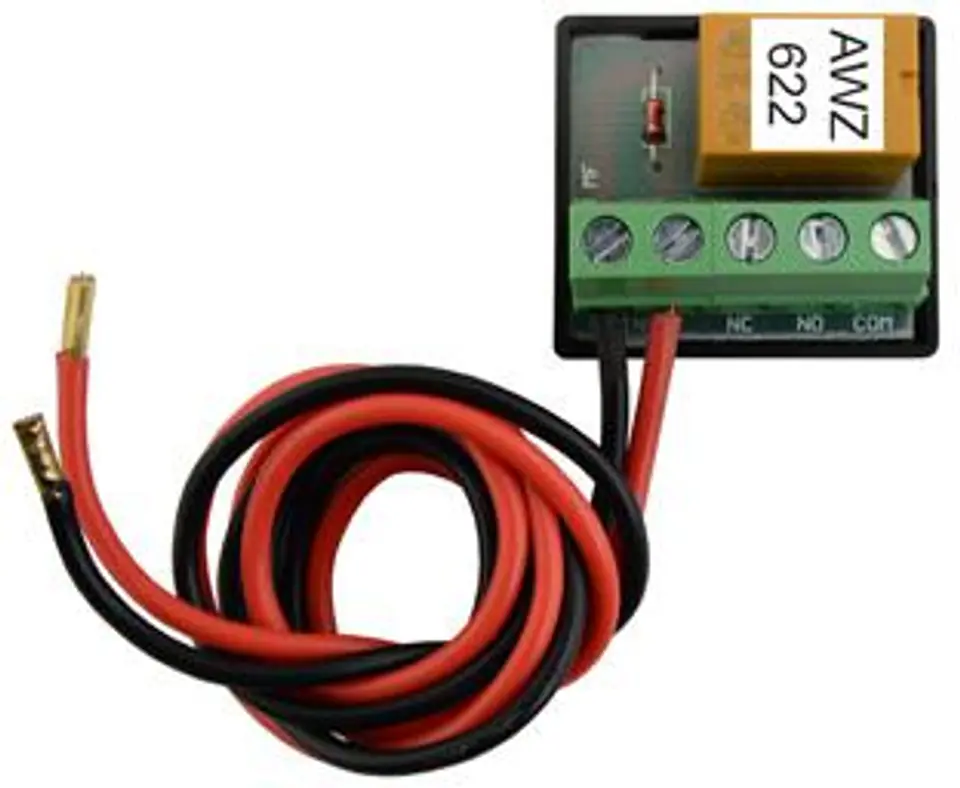

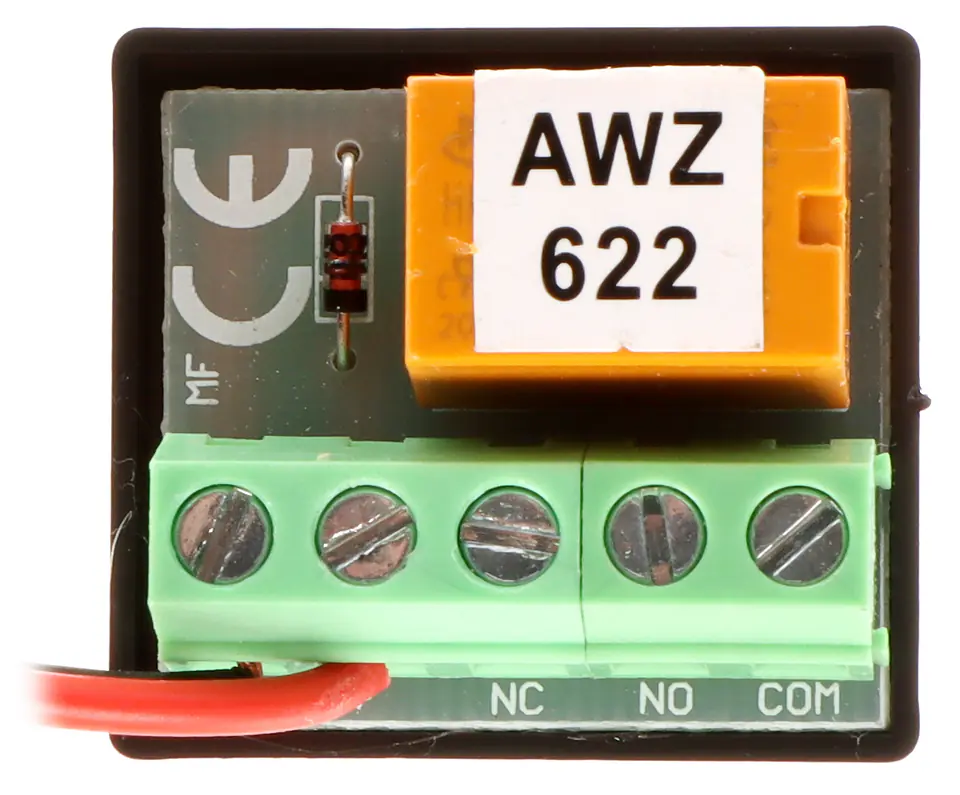

RELAY MODULE AWZ-622 PULSAR
€3.60
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- AWZ-622 / 5902135308547
Share this product:
Specification
| -10 °c ... 50 °c: | Operating temperature: |
|---|---|
| 0.02 kg: | Scales: |
| 1: | Number of relay outputs: |
| 1 a (max), 30 v dc / 50 v ac (max): | Contact capacity: |
| 1 x no/nc: | Egress: |
| 10 ... 14 volts dc: | Power: |
| 2 years: | Warranty: |
| 20 ma (max) @ 12 v dc: | Current consumption: |
| 30 x 27 x 18 mm: | Dimensions: |
| Pulsar: | Manufacturer / Brand: |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
