Allows to increase the current load capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load

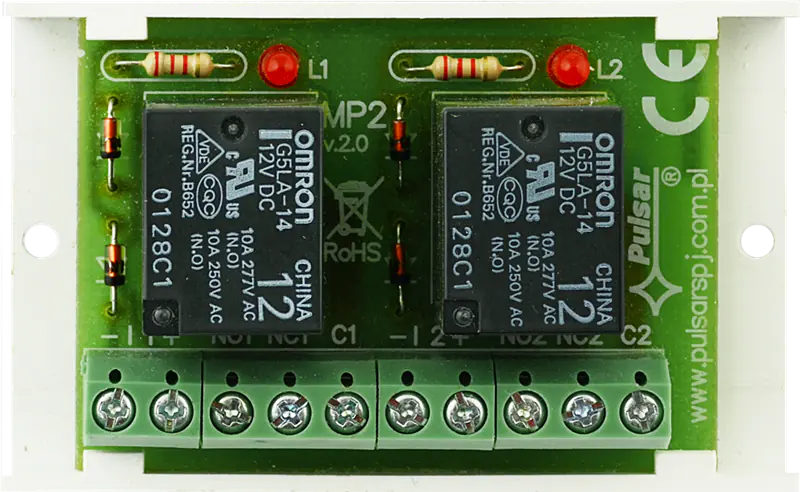

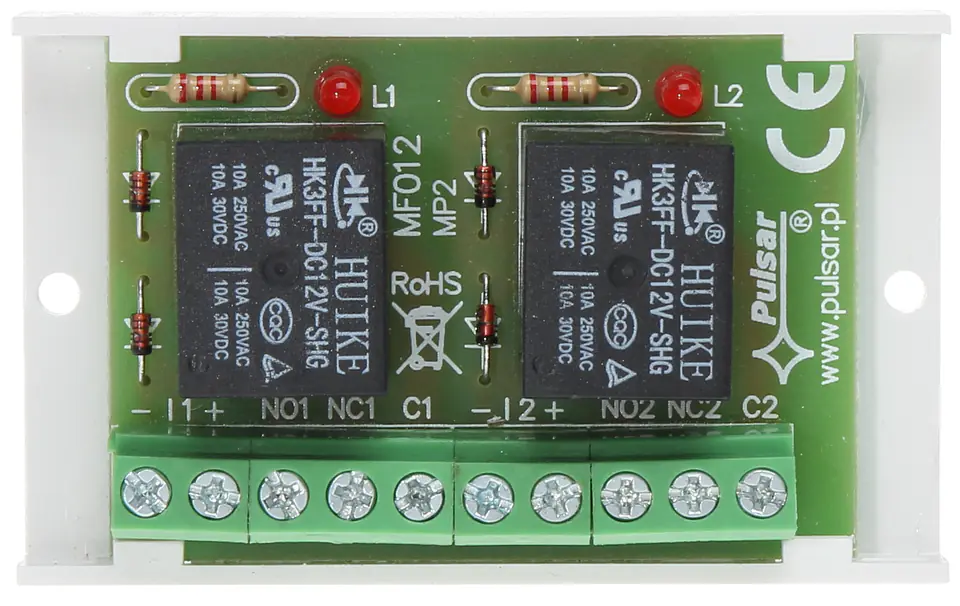

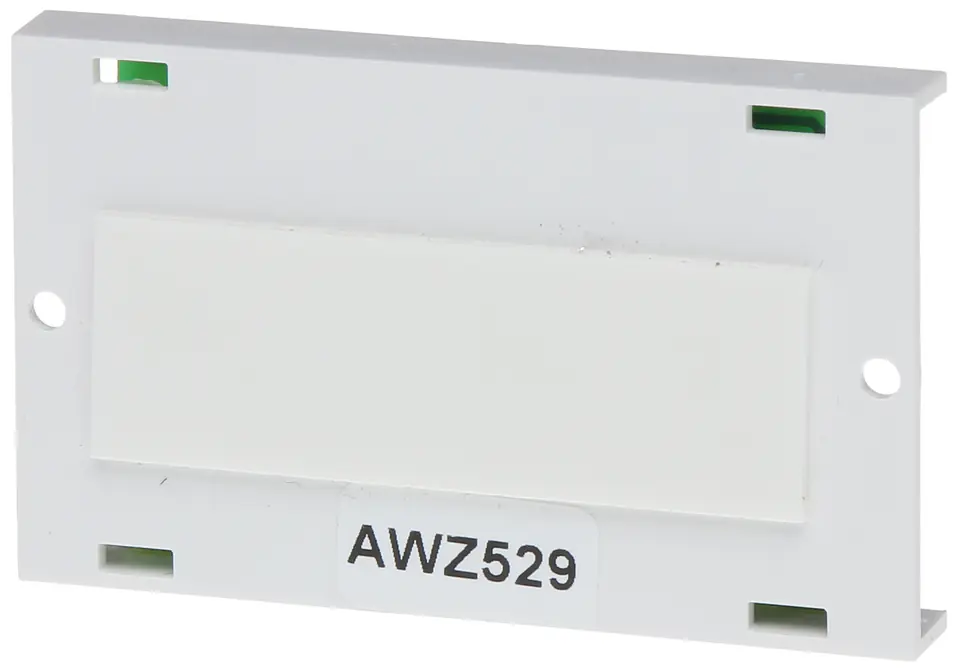

RELAY MODULE AWZ-529
€6.94
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- AWZ-529 / 5906881441817
Share this product:
Specification
| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.04 kg: | Scales: |
| 10 ... 14 vdc: | Power: |
| 2: | Number of relay outputs: |
| 2 a (max), 30 v dc / 50 v ac (max): | Contact load capacity: |
| 2 x no/nc: | Egress: |
| 2 years: | Warranty: |
| 37 ma for each relay at 12 v dc: | Current consumption: |
| 70 x 43 x 23 mm: | Dimensions: |
| Led signaling: | Selected features: |
| Pulsar: | Manufacturer / Brand: |
