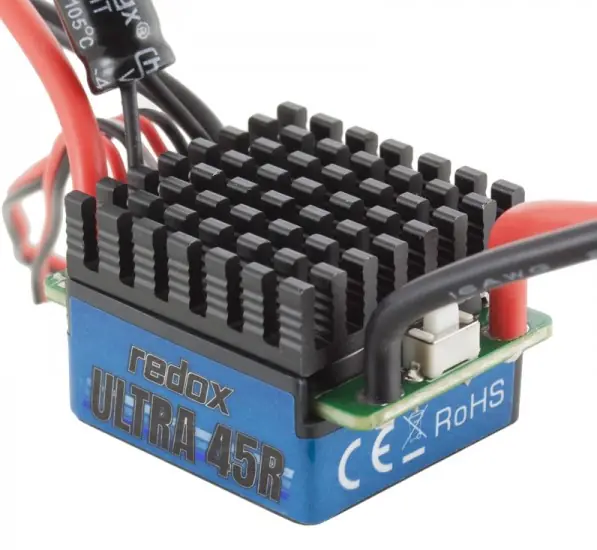

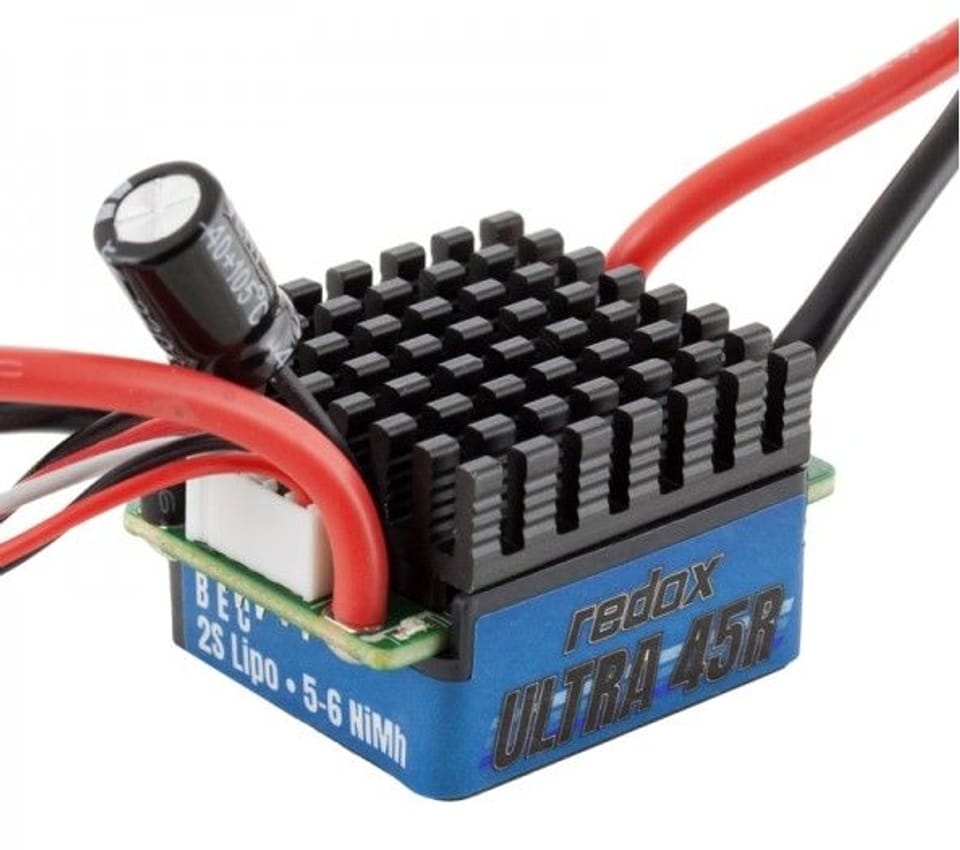

Regulator for brushed motors ULTRA 45R - Redox
The regulator is designed to work in tandem with brush motors of classes 400, 500 and 600, in the drive systems of remote-controlled car and boat models.
Specifications:
Remark!
The regulator is NOT watertight. In the case of installation in a boat model, care should be taken to ensure adequate protection against moisture and an appropriate level of cooling.
| 38 x 28 x 22 mm | Wymiary (wraz z radiatorem): |
|---|---|
| 38 g | Waga regulatora: |
| 2s LiPo (7,4V) lub 5-6 ogniw NiXX (6,0 - 7,2V) | Napięcie zasilania: |
| 45A | Natężenie prądu (ciągłe): |
| Liniowy, 5,6V / 2A | Układ BEC: |
| 10T / <30000 RPM | Limity uzwojenia silników: |
