Mandrel cutter, solid carbide
Execution: with center blade, suitable for drilling.
Internal cooling increases productivity with optimized chip evacuation.
Application: for circumferential milling and universal machining. Also used for edge milling and finishing milling. For roughing and finishing milling and grooving as well as for grooving milling. Extremely calm operation due to the uneven line of twist of the groove to achieve good surface quality of the workpiece.
Ratio cutter,long DIN6527,full,FIRE,INOX type,HB,4-blade,10,0mm GÜHRING
PLN 109.16
Shipping from warehouse: B6
Estimated shipping: Mon, Apr 6 - Wed, Apr 8
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- GÜHRING
- Product code:
- 9033660100000 / 4031093675727
Share this product:

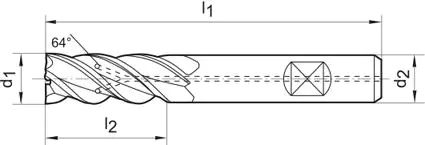

Specification
| Aluminium > 8% silicon: | 200 |
|---|---|
| Cast iron gg/gts: | 200 |
| Copper alloys: | 130 |
| Cutting part length l2: | 22 mm |
| Diameter d1 = h 10: | 10 mm |
| Ggg cast iron: | 160 |
| Inox austenite.: | 56 |
| Inox duplex: | 45 |
| Inox ferrite./martenz.: | 70 |
| Neck diameter: | 9.2 mm |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.065 mm/rev |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 70 |
| Total length l1: | 72 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
