A set consisting of a car radio and a reversing camera. While driving, we can enjoy the enormity of functions that the radio offers and when reversing or parking in a simple way we can avoid hitting an obstacle invisible to the naked eye.
Bluetooth and speakerphone
Thanks to the built-in Bluetooth function, we have the ability to connect to any device that also has this function - it allows you to play music in various formats. When connected to a mobile phone, you can make and receive hands-free calls through the car sound system.
Mirror Link
A function that allows you to transfer the screen from the phone to the radio display. The communication between the radio and the smartphone is via a USB cable, and full integrity allows you to control the phone on the player screen. Thanks to the mirror link, you can transfer, for example, running navigation, favorite music video, movies or photos to the car radio.
Safe reversing and parking
Rear parking is often quite a challenge, especially in difficult terrain conditions, in the case of very limited visibility or very little space in a designated parking space. This task is even more difficult in the case of vans. The camera will provide every driver with an almost complete view of the space behind the vehicle.
Specification:

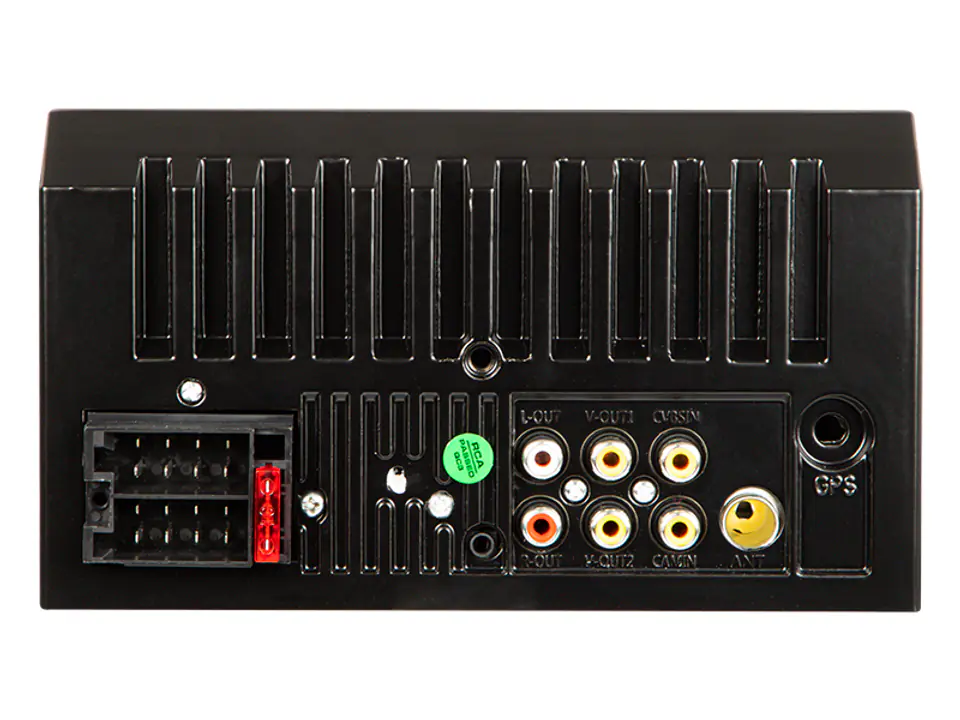

RADIO BLOW AVH-9810 2DIN 7":
- Max. power: 50W x 4
- Mounting: 2 DIN
- Display: 7 inches color, touch
- Bluetooth: YES (speakerphone)
- Inputs: microSD, USB, AUX
- Mirror Link: YES
- MP3 player: YES
- Reversing camera input: YES
- Outputs: Cinch
- FM frequency: 87.5 - 108 MHz
- Number of stations memorized: 6
- Microphone: YES
- Voltage: 12V DC
- Menu: Polish language
- Dimensions: 18 cm x 10.4 cm x 6.6 cm
REAR VIEW CAMERA BVS-549:
- Image sensor: CMOS7070
- Resolution: 628x582
- Measuring area: 4.9 x 3.7
- Lens: F=2.5mm/F=2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain adjustment and backlight adjustment
- Horizontal definition: 420 TV lines
- Minimum illumination: 1.00 lux
- Signal/noise: < 48.0 [dB]
- Viewing angle of image sensor: 170°
- Horizontal viewing angle: 120°
- Vertical viewing angle: 90°
- Diagonal viewing angle: 165°
- Waterproof grade: IP67
- Voltage range: DC 12-24V
- Video output: 1.0Vp-p / 75 Ω
- Operating temperature: -20 ~+70°C, RH 95% Max
- Storage temperature: -30 ~+80°C, RH 95% Max
- Length of cable at the camera: 50 cm
- Power cord length: 90 cm
- Length of video cable to monitor: 580 cm
