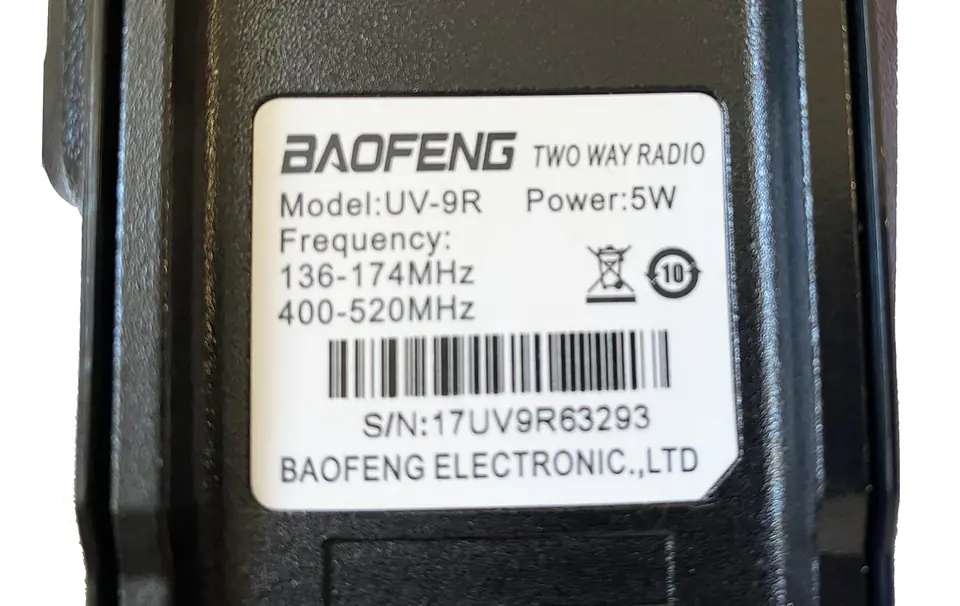

Frequency Range 400-520MHz / 136-174MHz
Number of channels: 128
Channel spacing 25.0kHz / 12.5kHz
Frequency stability ± 1.5 ppm
Operating Temperature: -10°C~+50°C
Antenna impedance 50 Ω
Voltage 7.4V
Dimensions(L*W*H)130 × 65 × 40mm
Weight(with battery and antenna): 265g
2200mAh battery (Li-ion battery)
Receiving sensitivity: 0.15μV / 0.18μV
Adjacent channel selectivity 65dB/55dB
55dB intermodulation rejection
Signal-to-noise ratio 40dB / 35dB
Rated audio output power ≥600mW
Rated sound distortion ≤5%
Transmitting power ≤ 5W
Modulation mode: 16KΦF3E/8KΦF3E
Modulation limit ≤ 5 kHz / ± 2.5 kHz
FM distortion ≤5%
Adjacent channel power -65dB / -55dB
Interference ≤ -36 dBm
