Compact, 8-channel receiver designed to work with 2.4GHz FHSS and S-FHSS transmitters from Futaba.
The presented receiver has a High Response mode for digital servos. Fail Safe settings are available for all channels.
The receiver is equipped with an S-Bus socket to which up to 8 servos or other devices can be connected in addition to standard PWM outputs.
The receiver is of HV type, which means that it can be powered with 7.4V voltage (e.g. directly from the LiPol 2S package).
Easy pairing with transmitters via the Easy-Link button.
Optimum protection against interference through rapid frequency hopping.
The receiver is not recommended for large mock-up aircraft and jets.
Technical Specifications
- Number of channels: 8
- Bandwidth: 2.4 GHz
- Modulation: Futaba S-FHSS, FHSS
- Power supply: 3.5 - 8.4 V
- Dimensions: 24.9 x 14 x 42.8 mm
- Weight: 9.5 g

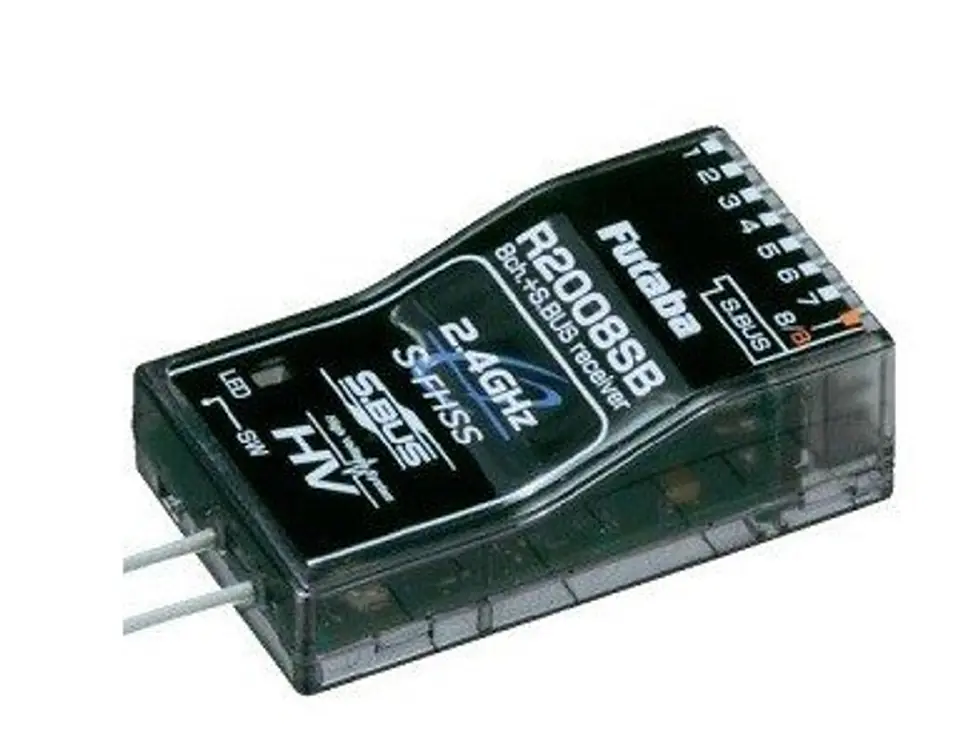

- R2008SB 2.4GHz FHSS/S-FHSS S-Bus receiver
