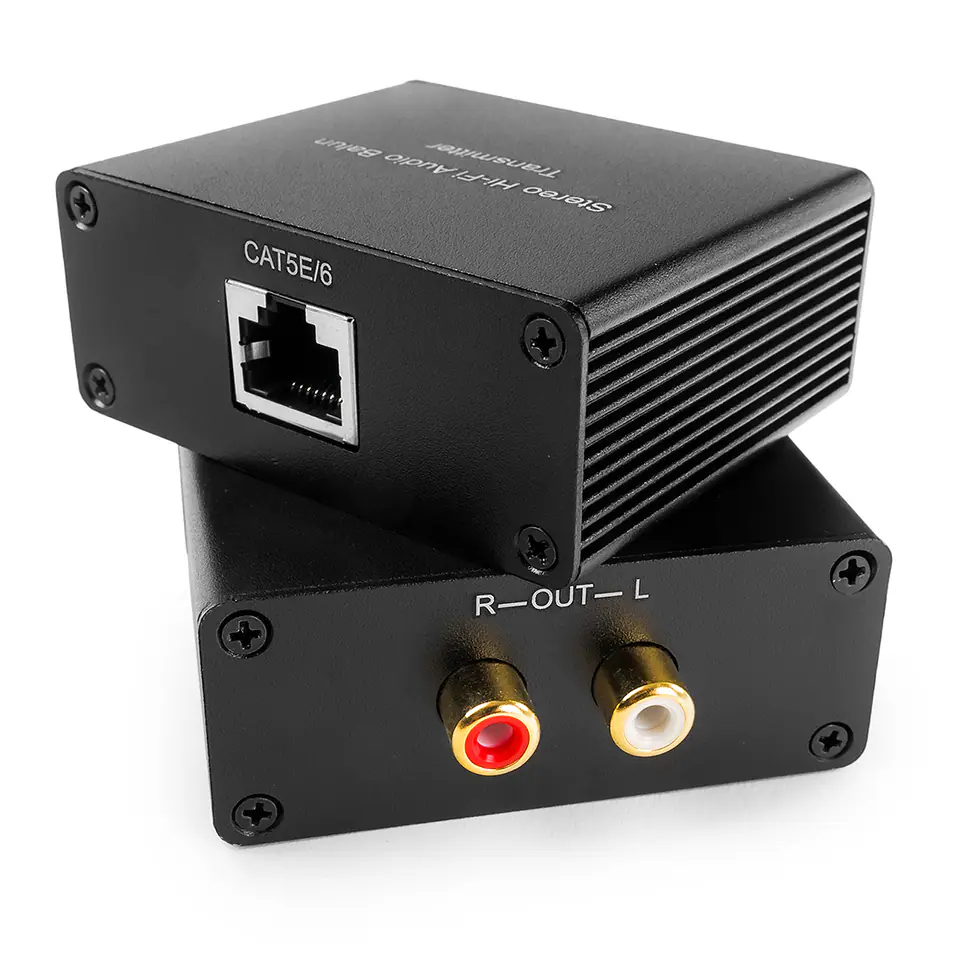

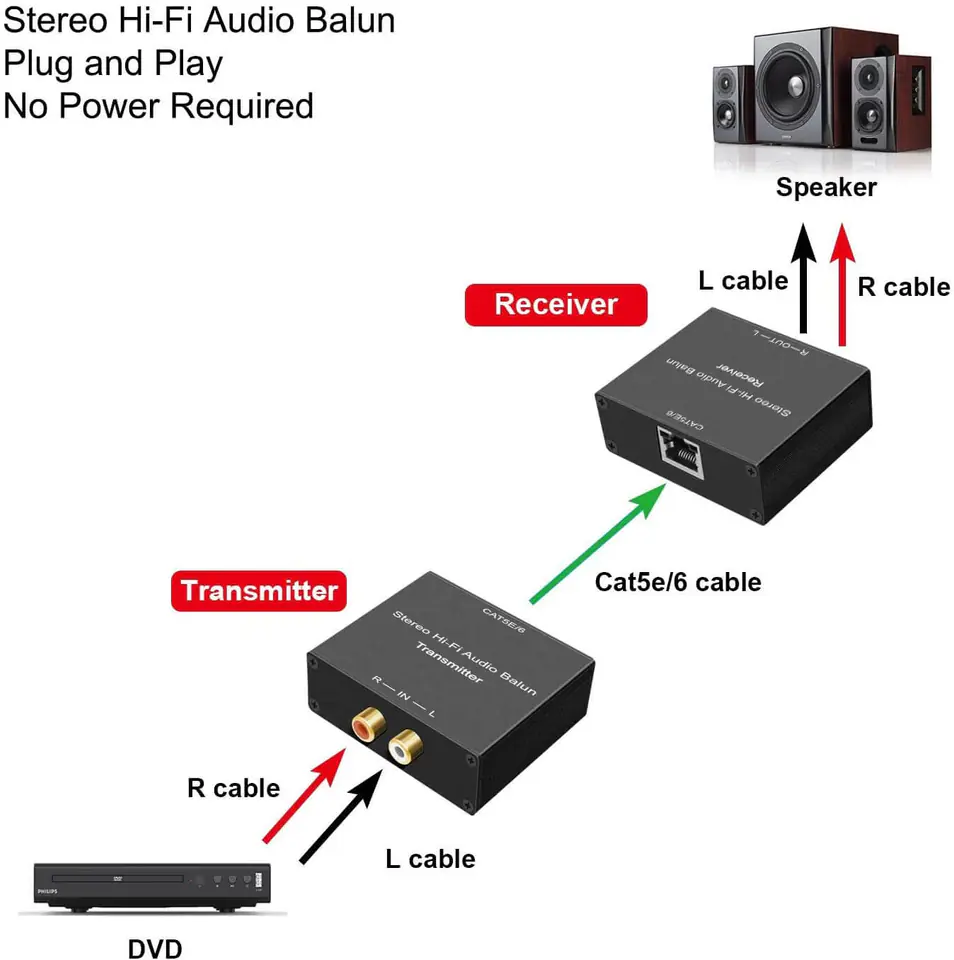

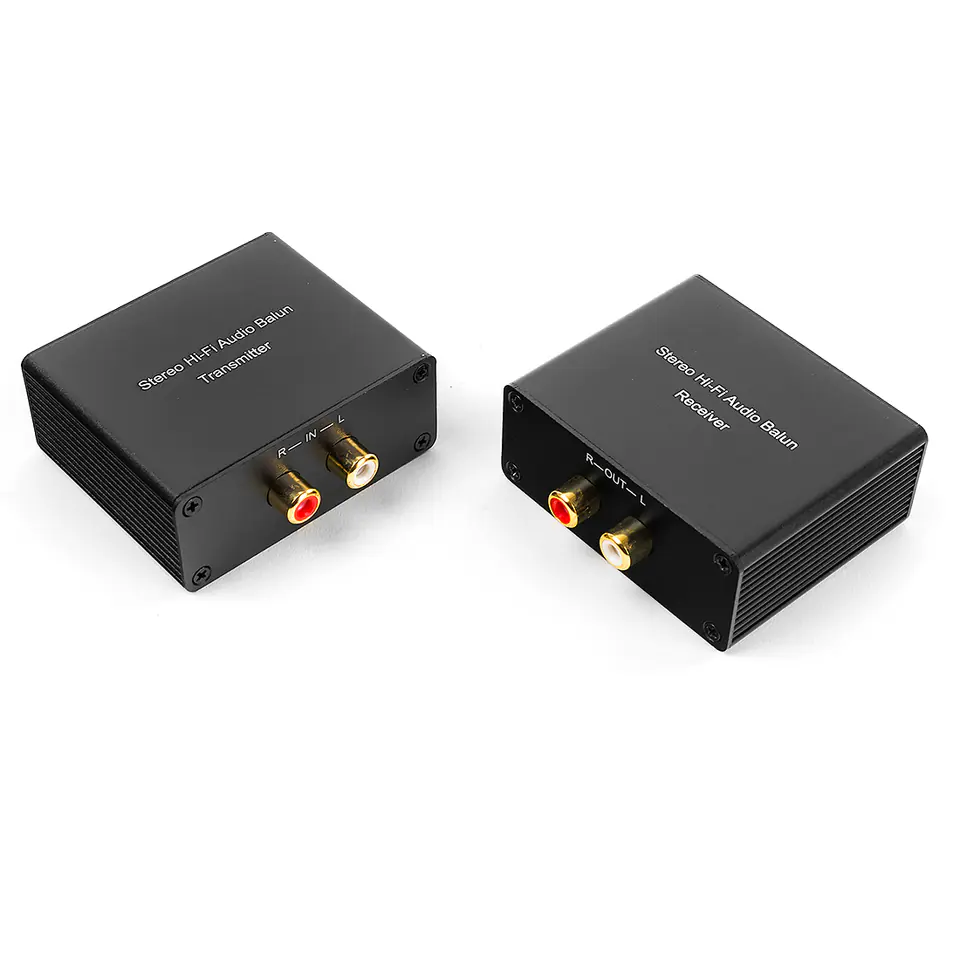

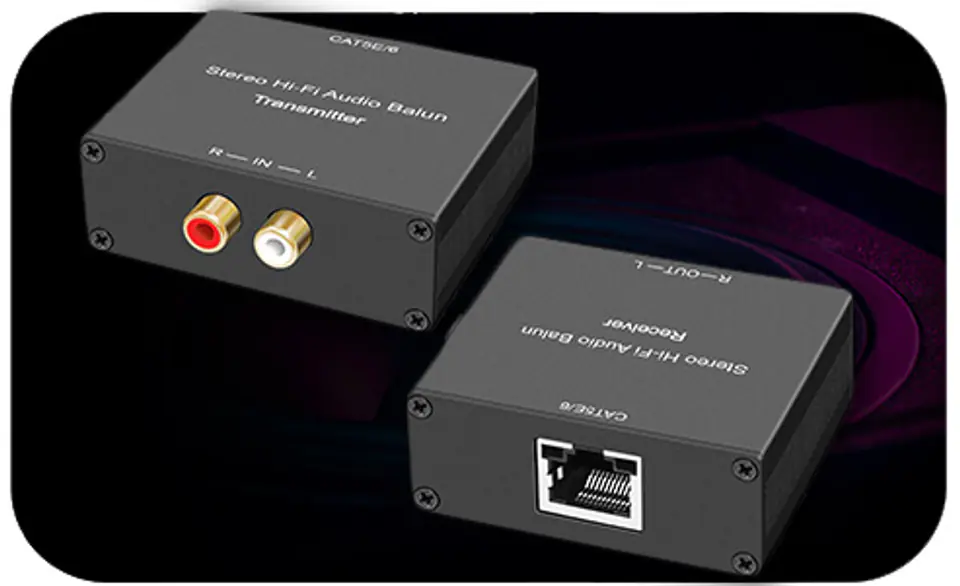

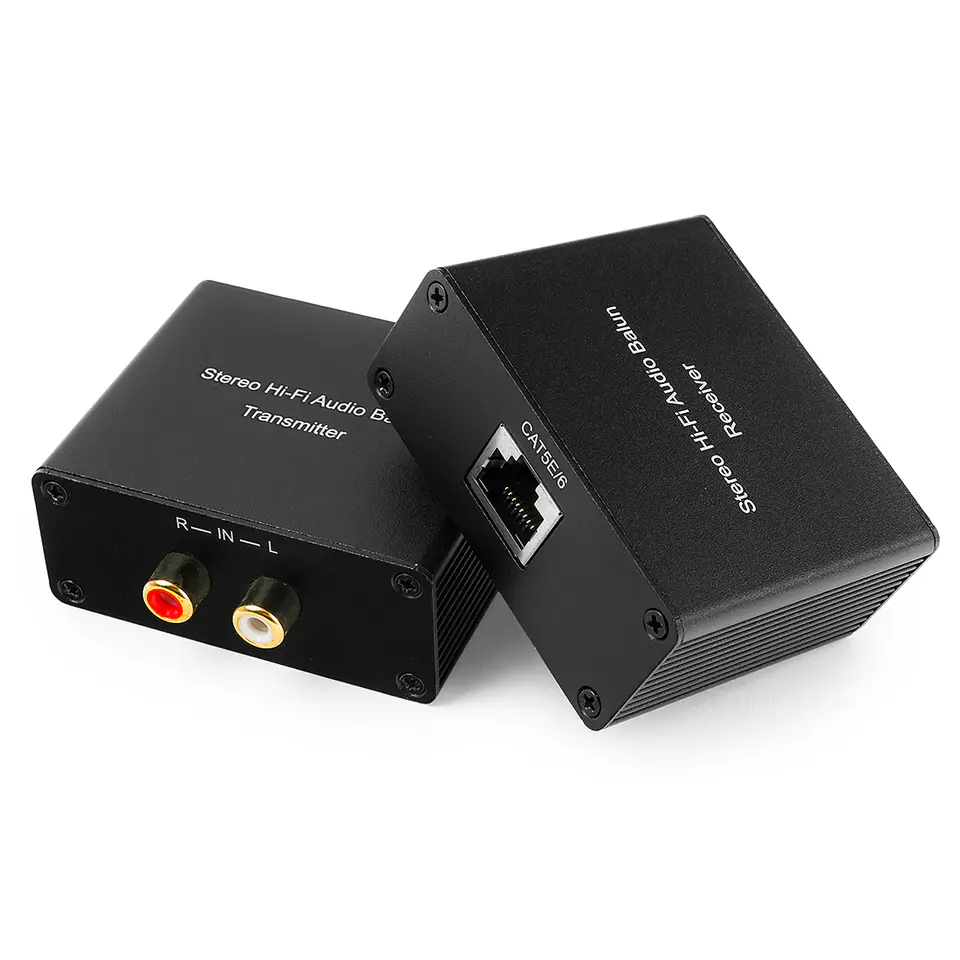

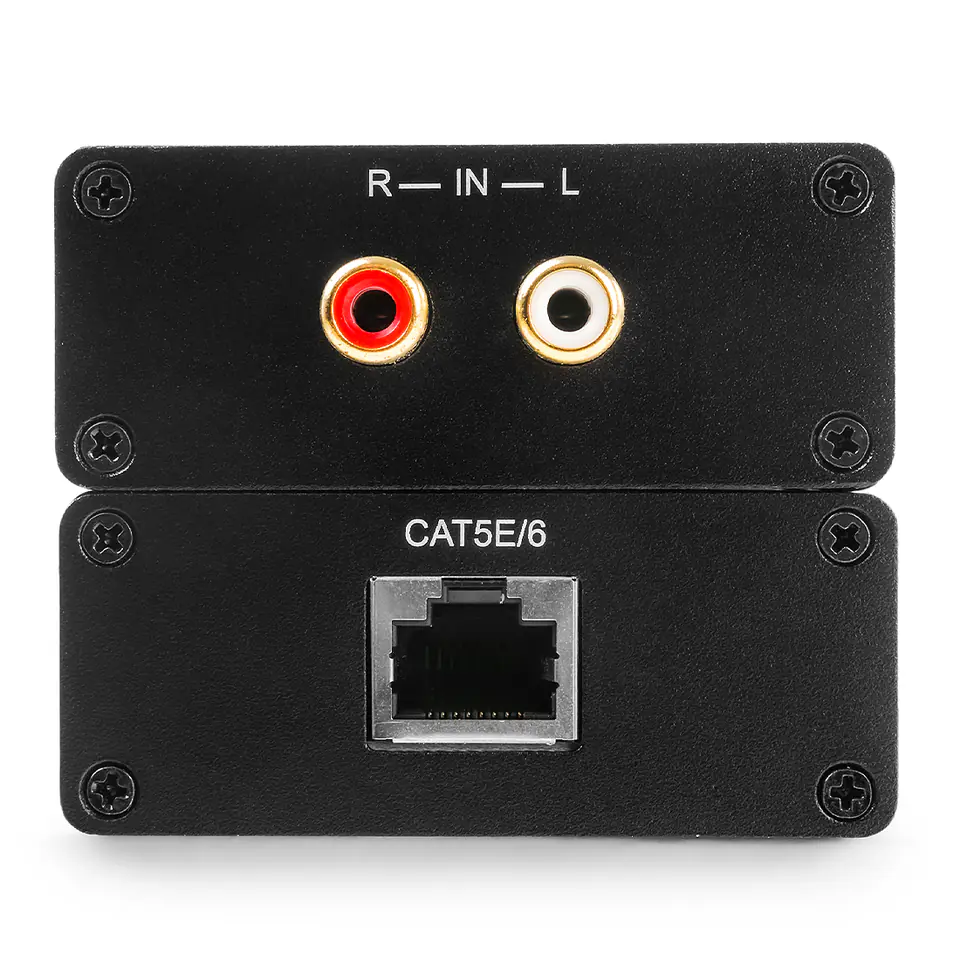

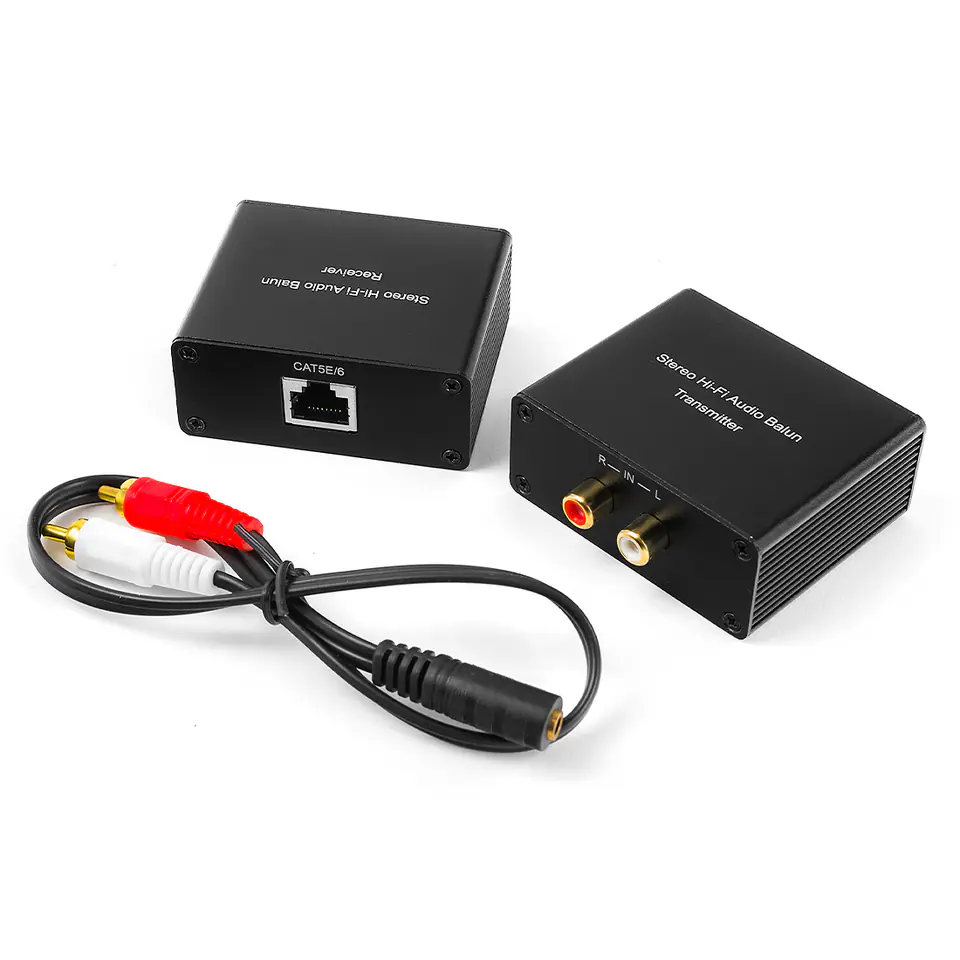

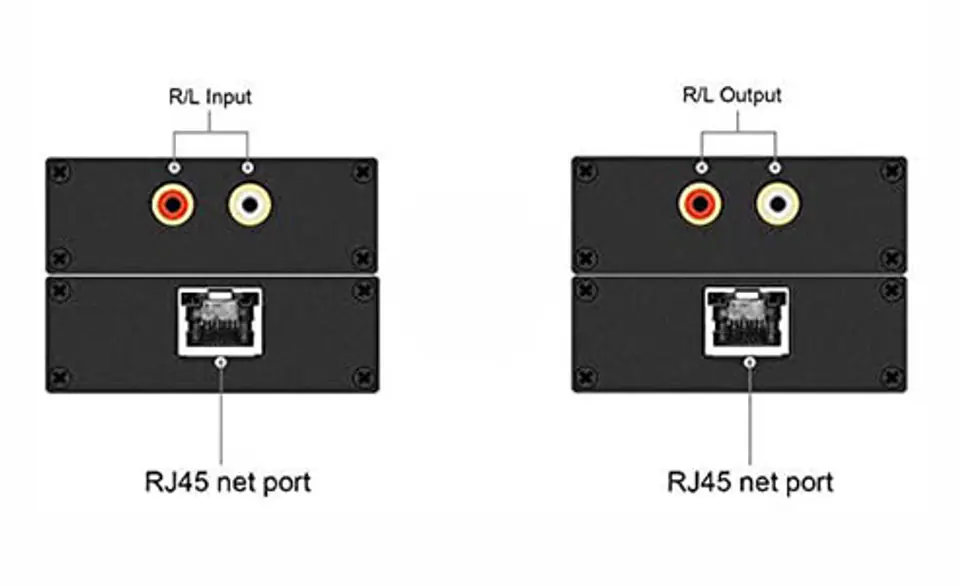

Audio transmitter Balun for distances up to 500 meters SPA-LHF02
- Max. input: 2V RMS
- Sound source impedance: Max. 100 Ohm
- Audio receiver impedance: Min. 10k Ohm
- 3dB 20Hz to 20KHz band over the entire distance range
- Loss per pair of Baluns: Less than 3 dB over the entire frequency range.
- Common mode attenuation: Greater than 60 dB at 1 KHz
- THD Maximum 0.007% at 1 KHz
