QUICK-RELEASE CLAMPING SET STC-S-MFT

Technical data:

Catalog number: STC-S-MFT
| Weight: 5.71 kg

Elbow clamps:

Vertical pressure with horizontal base STC-HH50
Quantity: 4
Working range: 40 mm
Automatic adjustment: 35 mm
Clamping force:2500 N

Horizontal pressure with horizontal base STC-IHH25
Quantity: 2
Working range: 35 mm
Automatic adjustment: 13mm
Clamping force: 2 500 N

Adapter for clamping STC-SET-T20:
Quantity: 6
Contains:
1 x Knurled nut M8
1 x Helical head screw with hexagon socket DIN912 M8 x 35
1 x Pin D20 x 17

Steel table clamp GTR12
Quantity: 2
Working range: 120 mm
Outreach: 60 mm
Rail: 13.5 x 6.5 mm



Product Details:

Multifunctional kit for fitters
with wooden insert with O 20 mm hole system
and 3 different mounting options



Kit contents:

4 x vertical pressure STC-HH50 / 2 x horizontal pressure STC-IHH25 / 6 x adapter STC-SET-T20 / 2 x table clamp steel GTR12

**

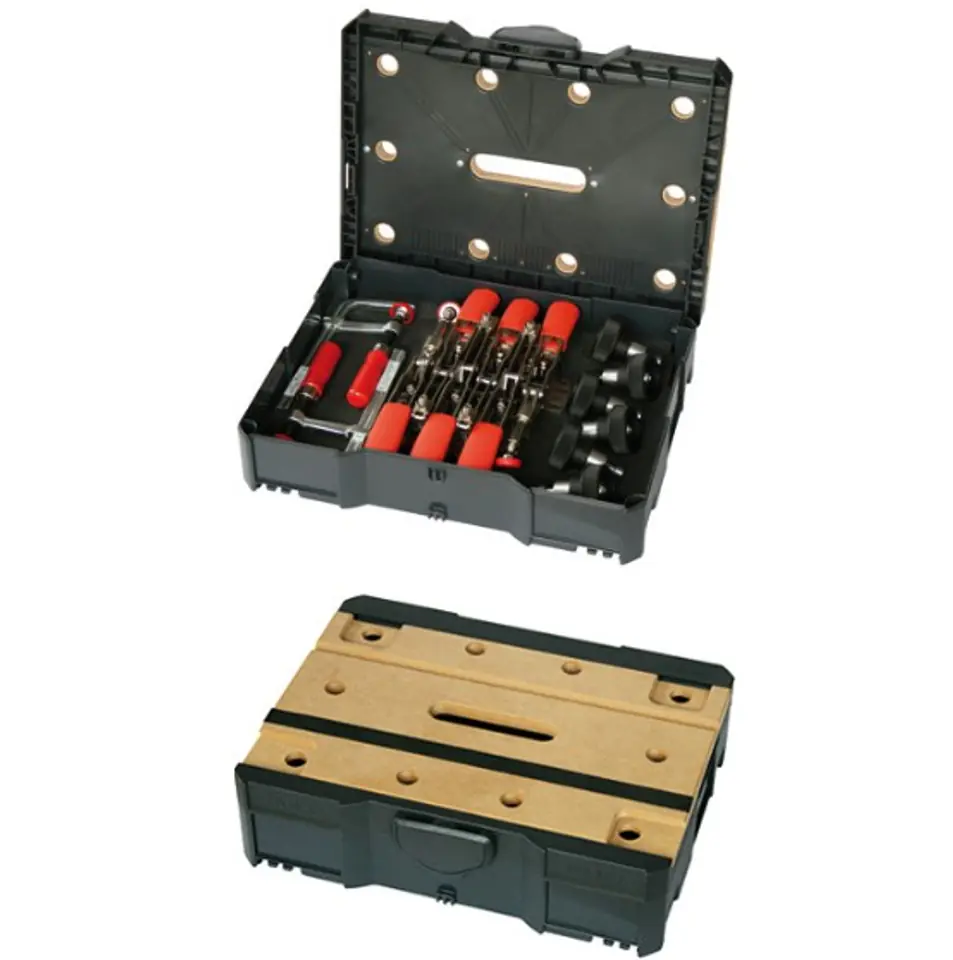

Illustrative photo.
