| Bore diameter: | 7.1 mm |
|---|---|
| Lifting capacity: | 2500 N |
| Mounting height: | 32 mm |
| Overall length: | 90 mm |
| Size: | 3 |
| Total height: | 175 mm |

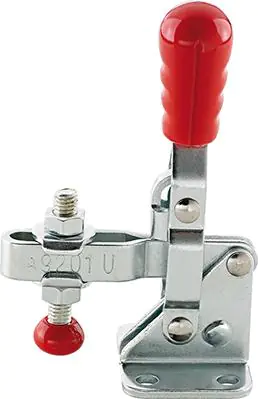

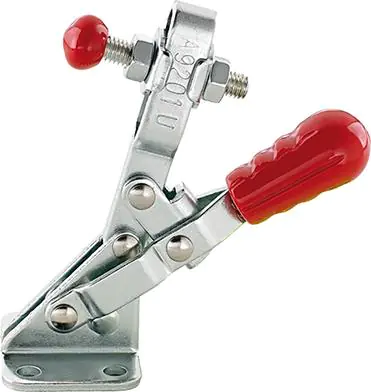

Quick clamping pressure, vertical
Design: with bent clamping foot, non-twisting bushings and stainless steel rivets. Galvanized and passivated. Plastic handle with long pressure arm.
Scope of delivery: quick-clamping pressure, vertical with pressure screw.
