| Bore diameter: | 5.1 mm |
|---|---|
| Lifting capacity: | 1500 N |
| Mounting height: | 23 mm |
| Overall length: | 69.9 mm |
| Size: | 2 |
| Total height: | 111 mm |

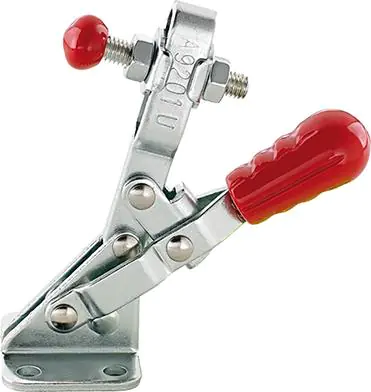

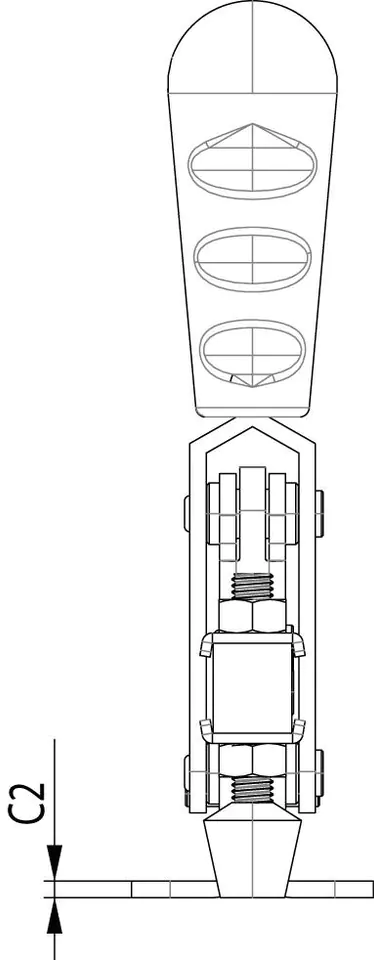

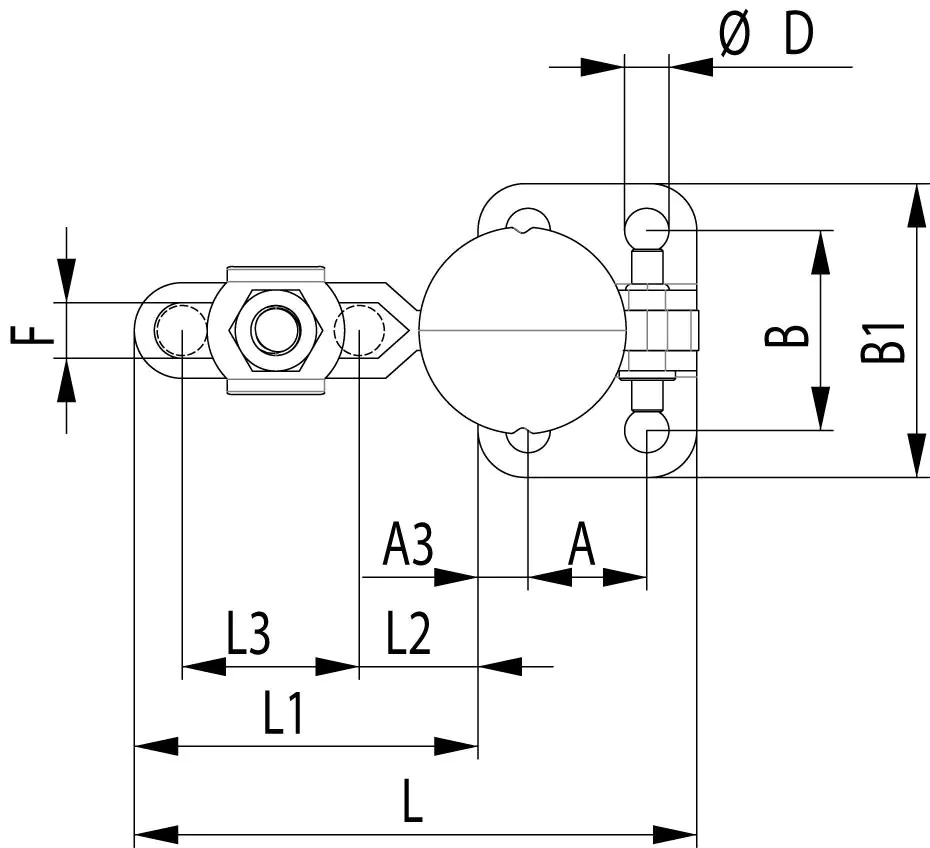

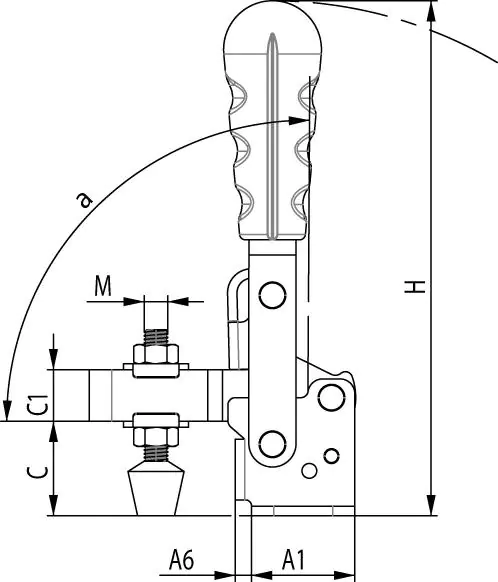

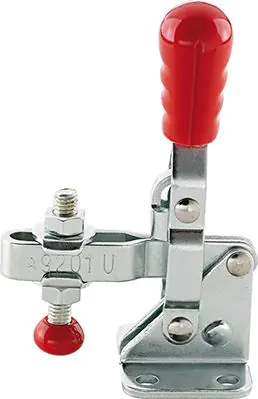

Quick clamping pressure, vertical
Design: with bent clamping foot, non-twisting bushings and stainless steel rivets. Galvanized and passivated. Plastic handle with long pressure arm.
Scope of delivery: quick-clamping pressure, vertical with pressure screw.
