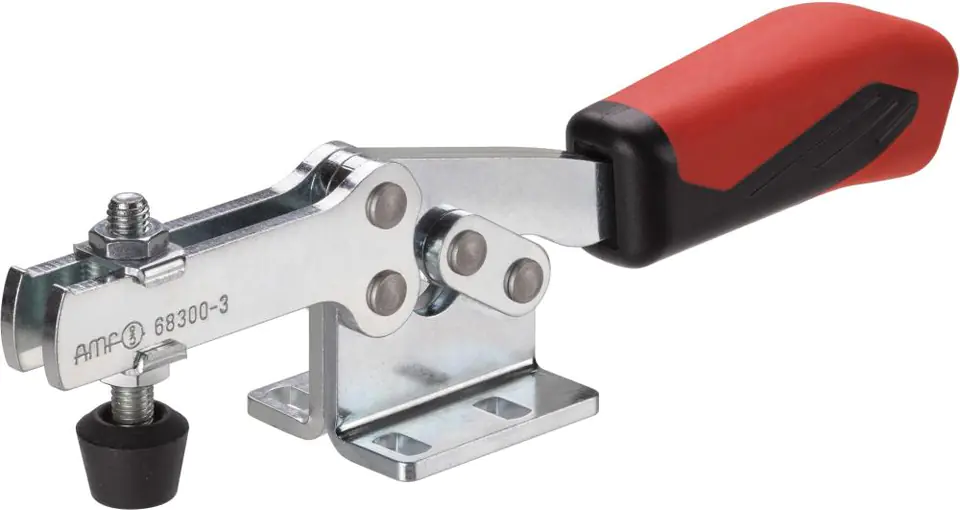

Quick clamping pressure, horizontal, plus Wlk. 2 AMF

This product is not available
Availability:
expected delivery
Brand:
AMF
Product code:
551715 / 4020772551711

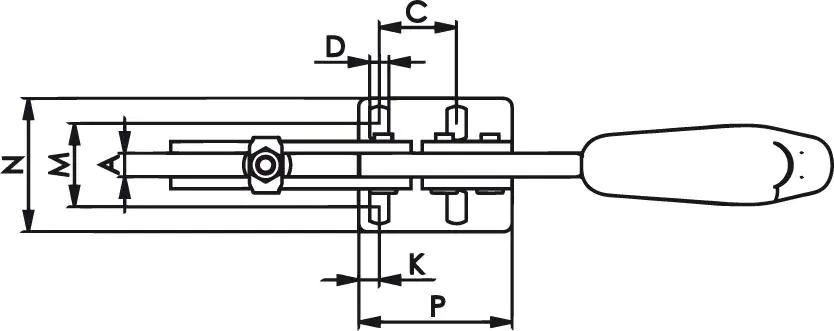

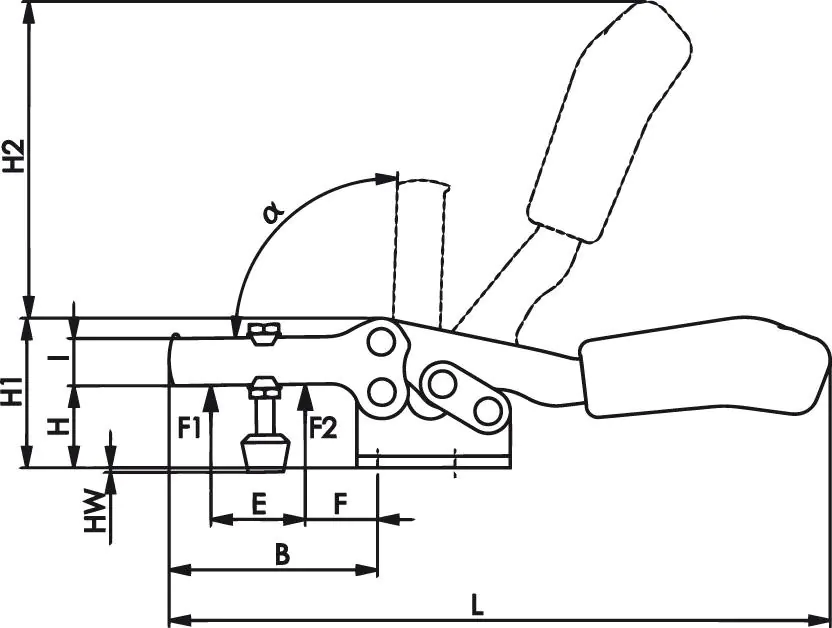

Specification

A:8
And:16
B:71
C:26
D:6,5
E:39
F:14
F1:1.6 kN
F2:3 kN
H:28
H1:51
H2:108
Hw max.:12
Hw min.:–1
K:7
L:224
M:23.5 - 34 mm
N:46
P:52
Pressure screw:M6 x 50
Scales:450 g
Size:2

Horizontal plus clamp

Design: quick-clamping pressure, horizontal, with increased clamping force, open pressure arm and horizontal foot. Galvanized and passivated, with stainless steel rivets and lubricated bearing points. Oil-resistant handle with a large grip surface. Protection against loss of the pressure screw at the end of the pressure arm.
Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
