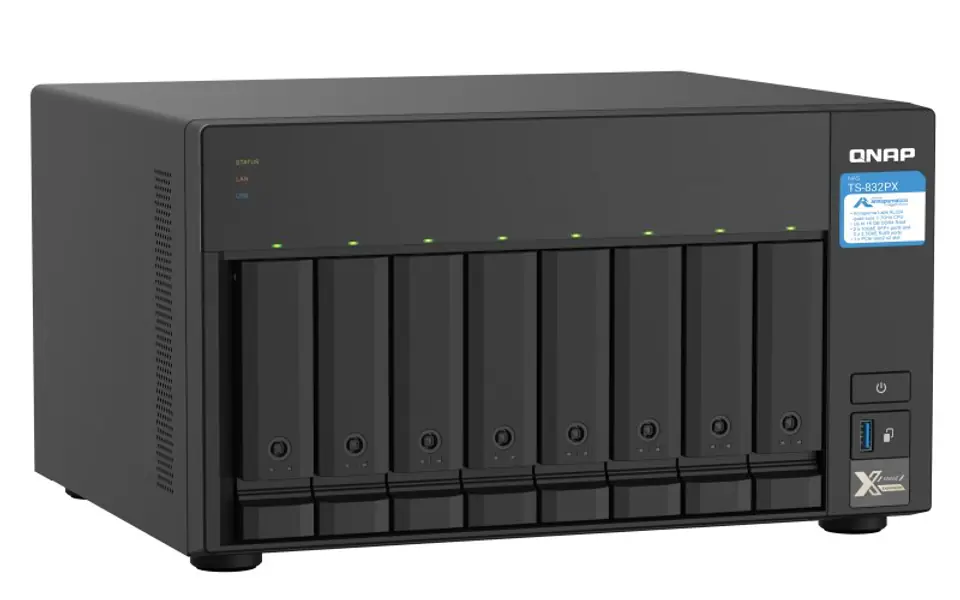

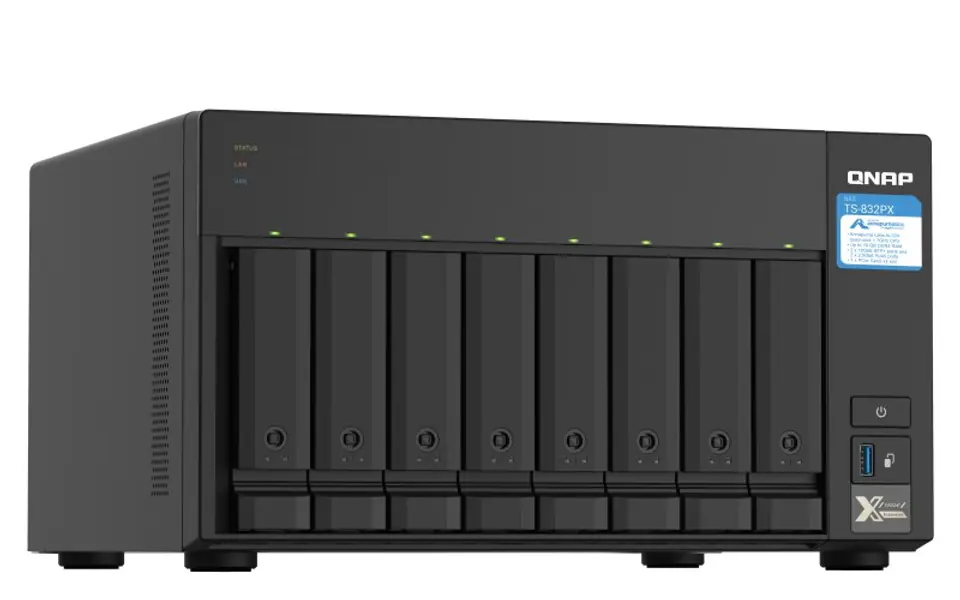

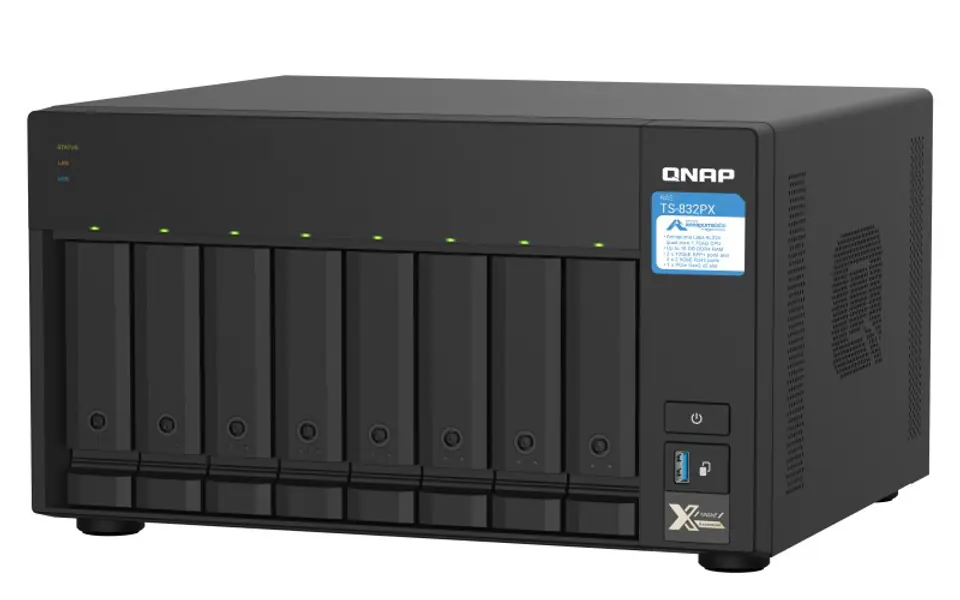

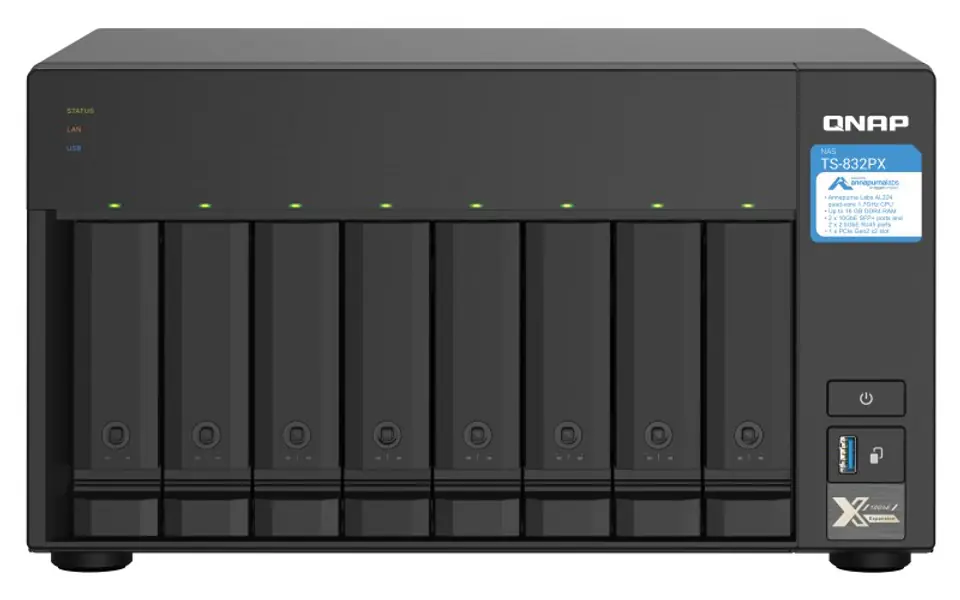

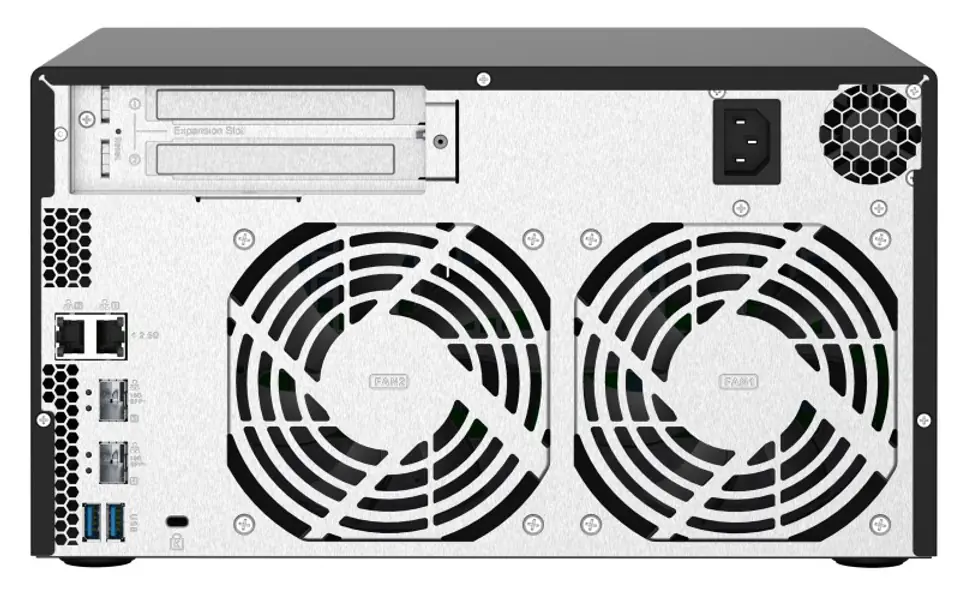

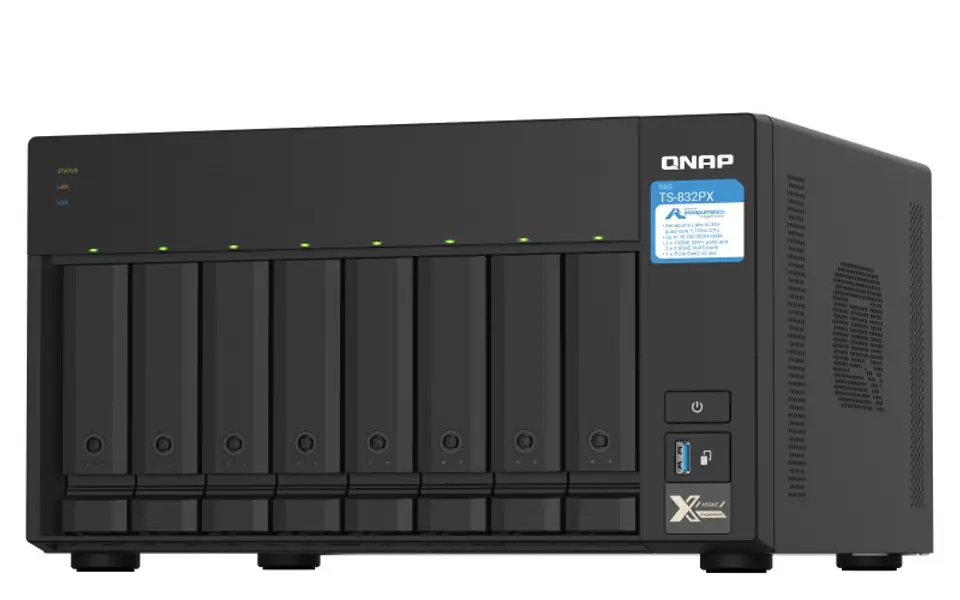

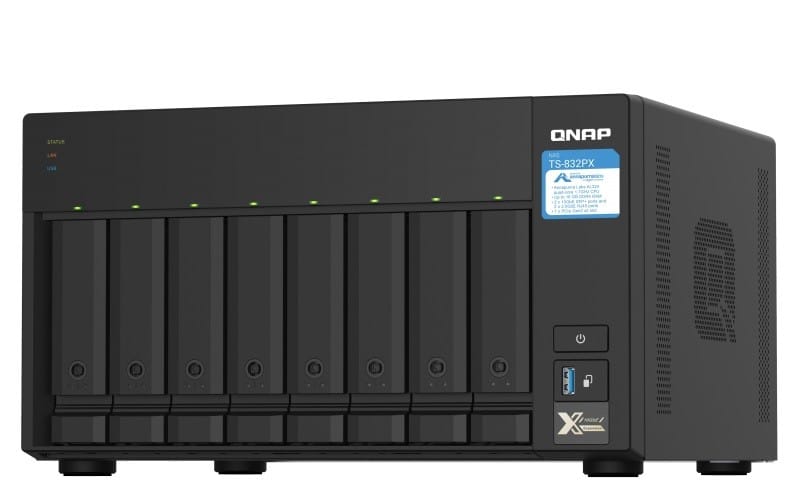

QNAP TS-832PX NAS Tower Ethernet LAN Aluminium, Black AL324
This product is not available
- Availability:
- expected delivery
- Brand:
- QNAP
- Product code:
- TS-832PX-4G / 4713213518182
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Backup button: | Yes |
| Backup features: | Cloud, USB drive, iSCSI LUN |
| Backup function: | Yes |
| Bad block scan: | Yes |
| Browser supported: | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| Built-in bittorrent client: | Yes |
| Built-in ftp server: | Yes |
| Buzzer: | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Cables included: | AC, LAN (RJ-45) |
| Chassis type: | Tower |
| Cooling type: | Active |
| Depth: | 280.8 mm |
| Device class: | Small & Medium Business |
| Dhcp client: | Yes |
| Dhcp server: | Yes |
| Disk roaming: | Yes |
| Drive bay locking: | Yes |
| Dynamic dns (ddns): | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 10000 Mbit/s, 2500 Mbit/s, 100, 1000 Mbit/s |
| Fan diameter: | 12 cm |
| Fan diameter 2: | 6 cm |
| Fan voltage: | 12 V |
| Fiber optic connector: | SFP+ |
| Fiber ports quantity: | 2 |
| Flash memory: | 512 MB |
| Harmonized system (hs) code: | 84714100 |
| Height: | 188.2 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Installed storage drive type: | No |
| Internal memory: | 4 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | LAN, USB, Status, HDD, System |
| Link aggregation: | Yes |
| Linux operating systems supported: | Ubuntu 14.04, CentOS 7.0 |
| Load balancing system: | Yes |
| Mac operating systems supported: | Mac OS X 10.0 Cheetah, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.15 Catalina, Mac OS X 10.1 Puma, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15.3 Catalina |
| Management protocols: | SNMP |
| Maximum ram supported: | 16 GB |
| Memory clock speed: | 2400 MHz |
| Memory form factor: | SO-DIMM |
| Memory slots: | 1 |
| Noise level: | 19.6 dB |
| Number of fans: | 3 fan(s) |
| Number of power supply units: | 1 |
| Number of processors supported: | 1 |
| Number of screws: | 56 |
| Number of storage drives supported: | 8 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | QNAP Turbo System |
| Operating system version: | 5.0.0 |
| Operating temperature (t-t): | 0 - 40 °C |
| Other operating systems supported: | IBM AIX 7.1, IBM AIX 7.2, Solaris 10 |
| Output current: | 3.5 A |
| Package width: | 8610 mm |
| Power consumption (sleep): | 27.949 W |
| Power consumption (typical): | 50.858 W |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 250 W |
| Processor architecture: | ARM Cortex-A57 |
| Processor cores: | 4 |
| Processor family: | Annapurna Labs |
| Processor frequency: | 1.7 GHz |
| Processor manufacturer: | Annapurna Labs |
| Processor model: | AL324 |
| Product colour: | Black, Aluminium |
| Raid levels: | 0, JBOD, 6, 10, 5+S, 1, 50, 60, 5, 10+HS, 6+HS |
| Raid rebuild: | Yes |
| Raid support: | Yes |
| Remote administration: | 256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH |
| Remotely operated: | Yes |
| Reset button: | Yes |
| S.m.a.r.t. support: | Yes |
| Security algorithms: | SNMP, HTTPS, FIPS 140-2, 256-bit AES, SSH |
| Server operating systems supported: | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2008 R2 |
| Share folder access right management: | Yes |
| Snapshot: | Yes |
| Storage drive interface: | Serial ATA III |
| Storage drive sizes supported: | 3.5", 2.5 |
| Storage drives installed: | No |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported file systems: | HFS+, ext3, FAT32, ext4 |
| Supported storage drive interfaces: | Serial ATA II, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Third-party support: | Yes |
| Type: | NAS |
| Universal plug and play (upnp): | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb copy function: | Yes |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |
| Web-based management: | Yes |
| Weight: | 6.38 kg |
| Width: | 329.3 mm |
| Windows operating systems supported: | Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 10, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Pro x64, Windows 8 Enterprise, Windows 7 Ultimate x64, Windows 7 x64, Windows 7 Home Basic, Windows 7 Ultimate, Windows 10 Education x64, Windows 10 Home x64, Windows 8, Windows 10 Home, Windows 7 Starter x64, Windows 7 Professional, Windows 7, Windows 7 Professional x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 8 x64, Windows 10 Education, Windows 8 Pro x64, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter |
| Wlan adapter supported: | Yes |
