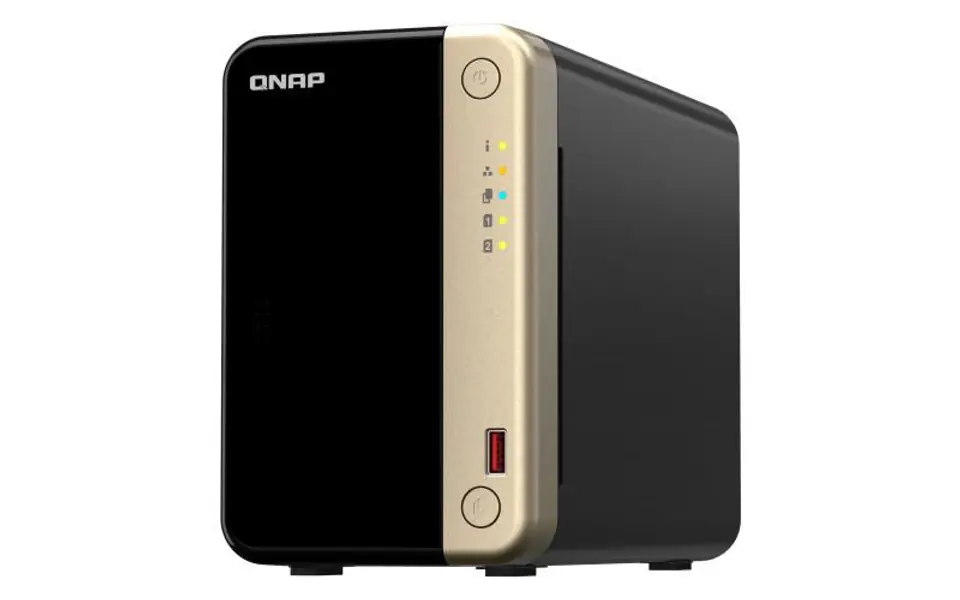

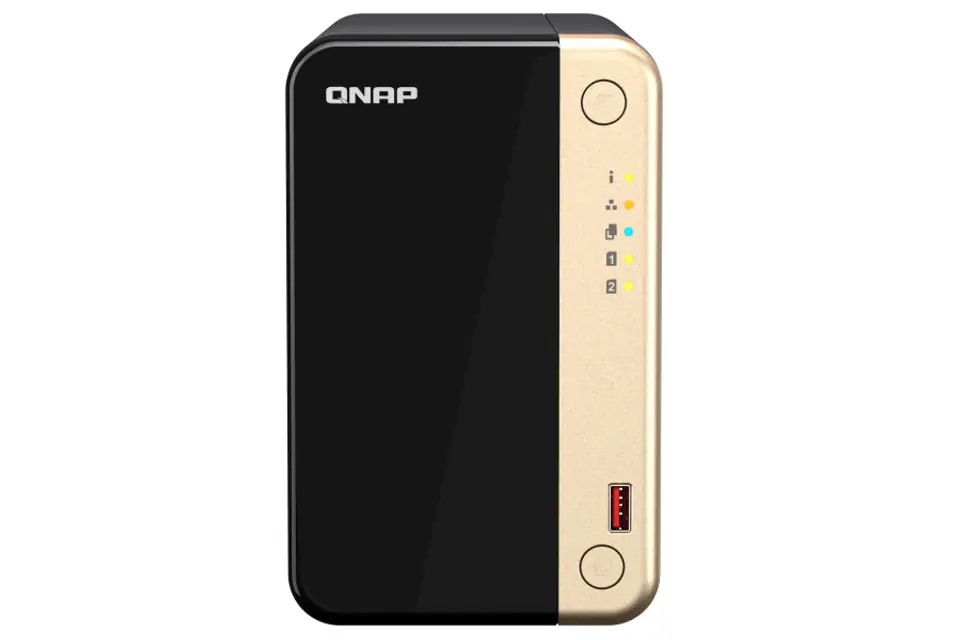

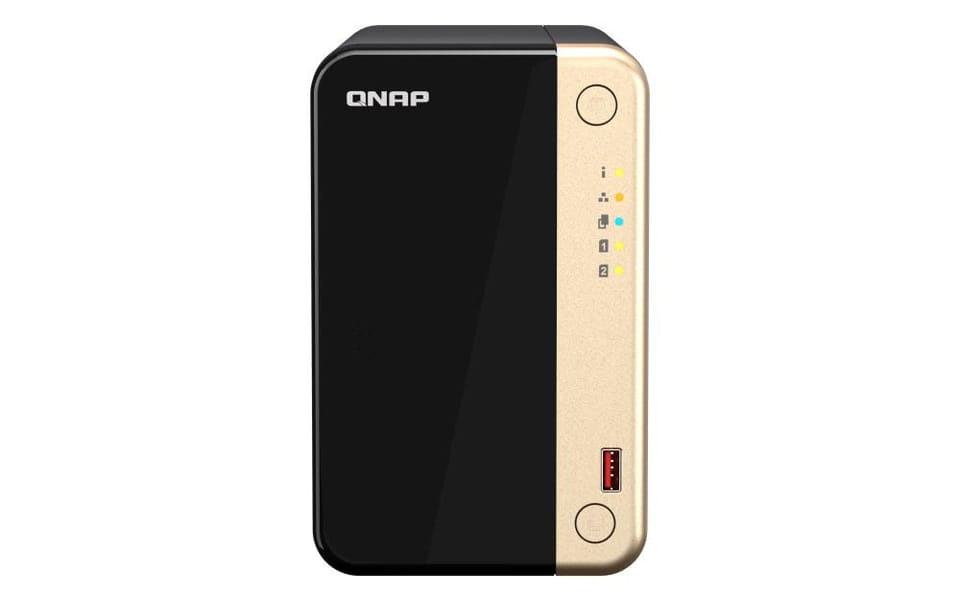

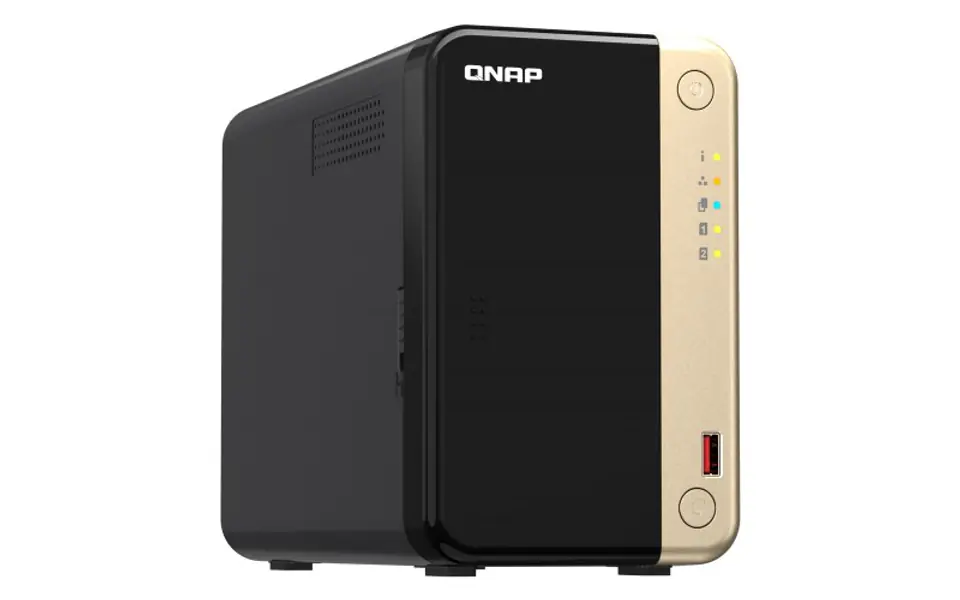

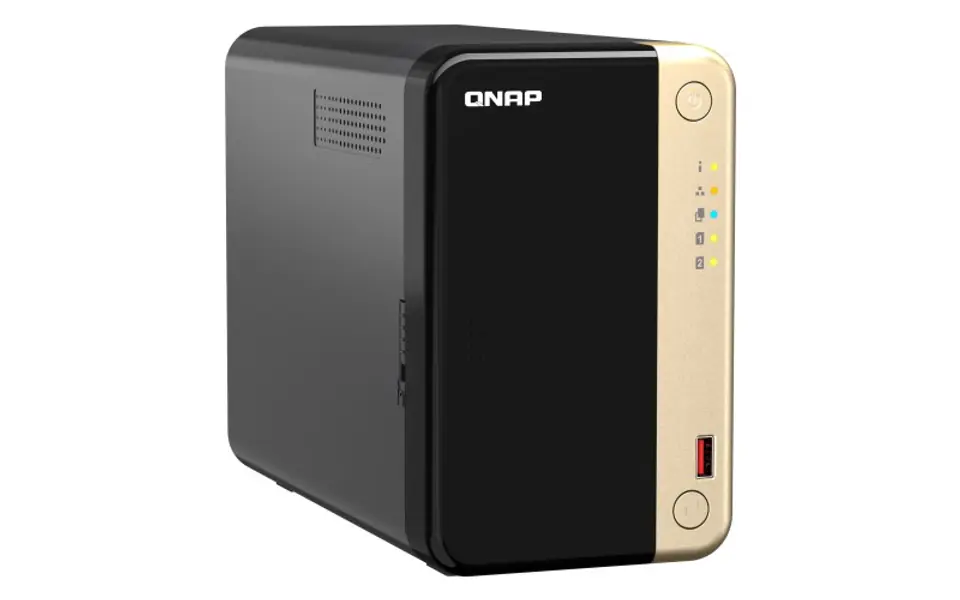

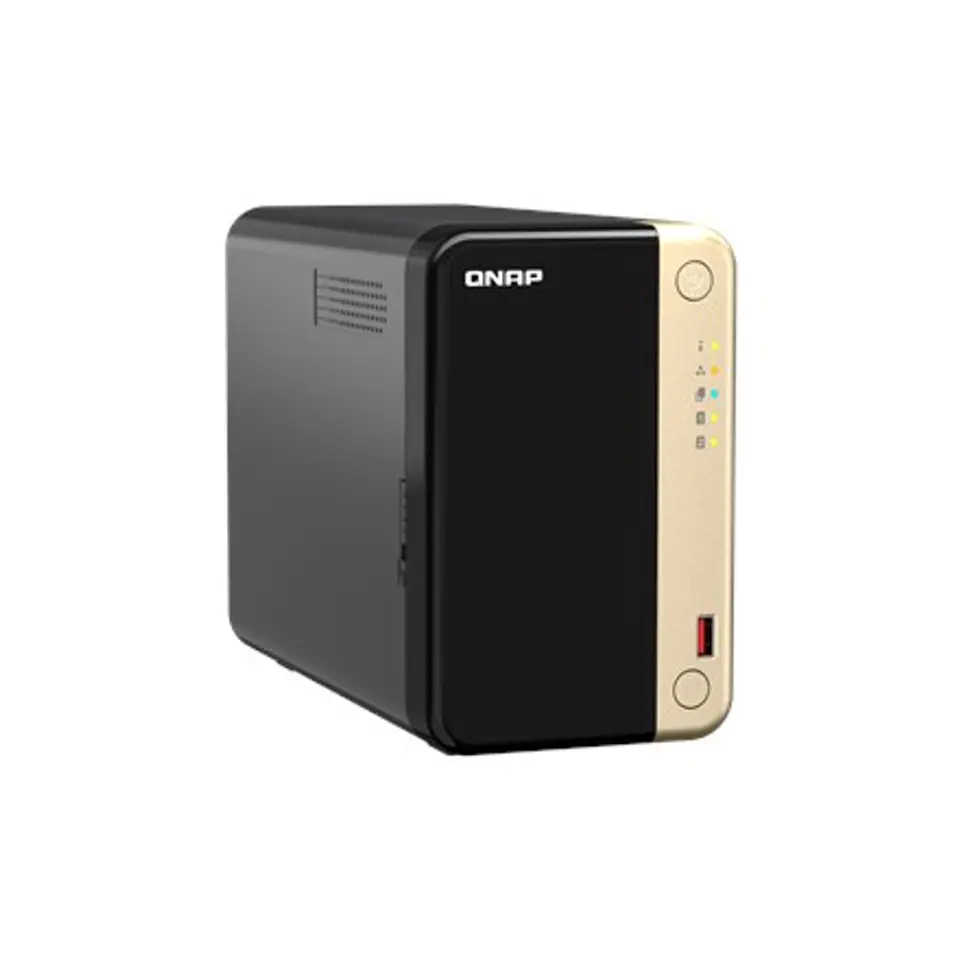

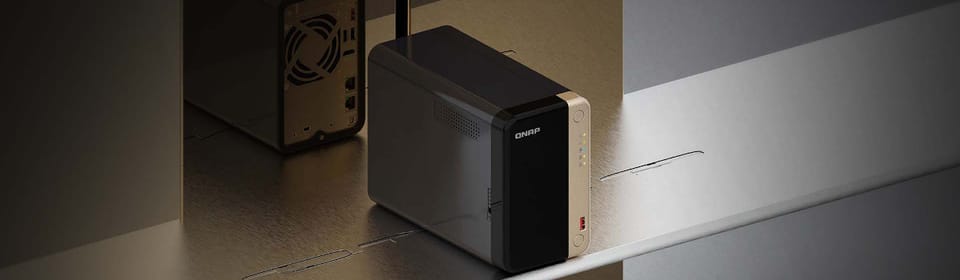

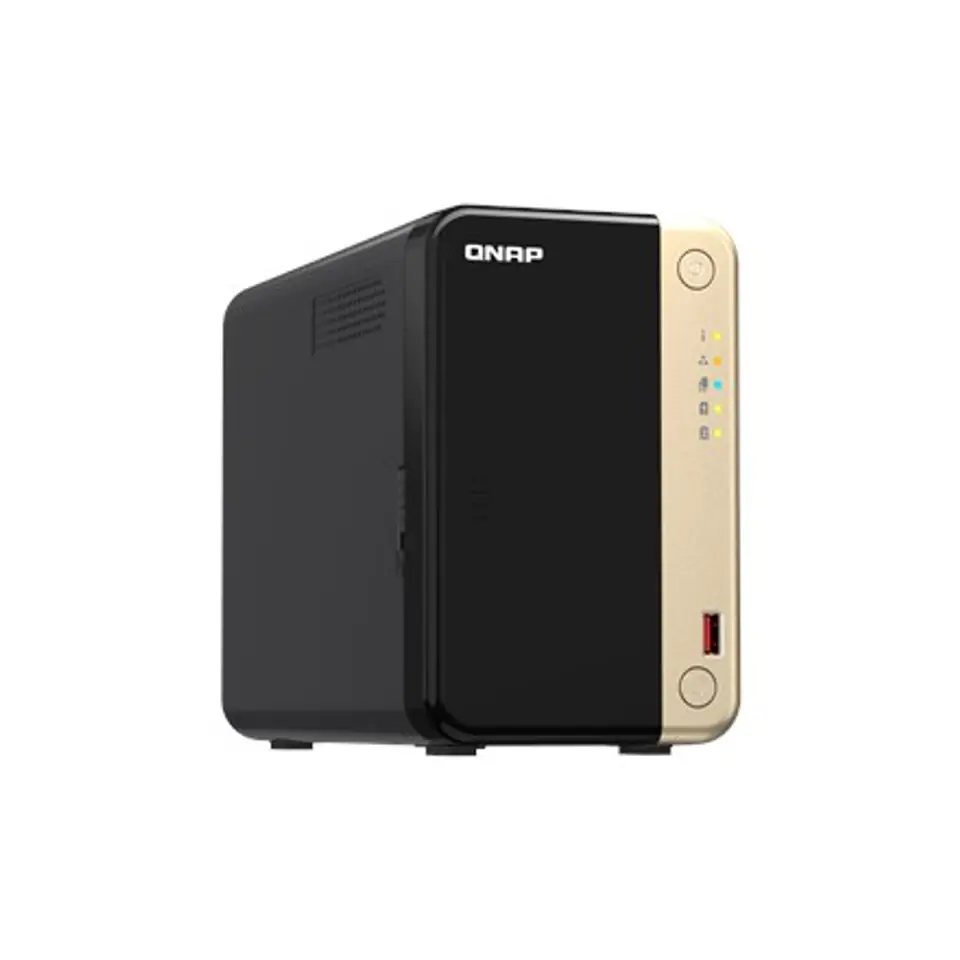

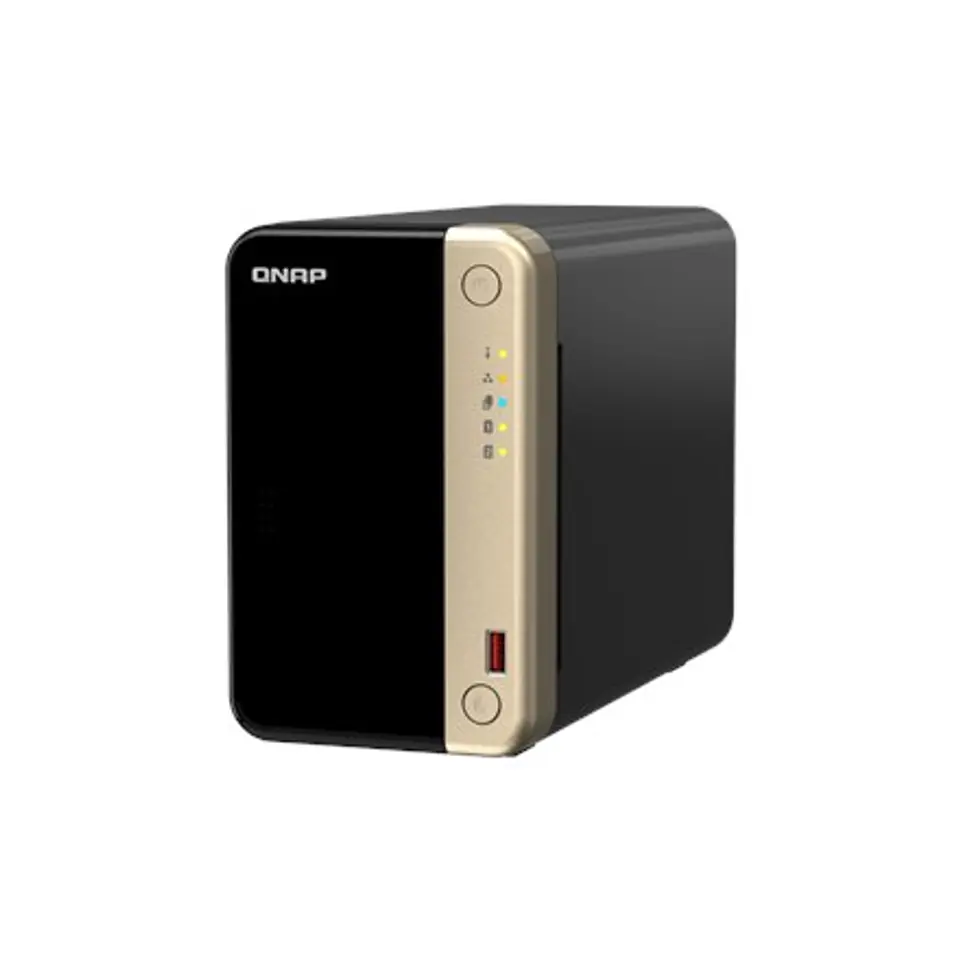

QNAP TS-264-8G File Server
This product is not available
- Availability:
- expected delivery
- Brand:
- QNAP
- Product code:
- TS-264-8G / 4711103082331
Share this product:
Specification
| Ac input voltage: | 100 - 240 V |
|---|---|
| Access control list (acl): | Yes |
| Backup features: | USB drive, iSCSI LUN |
| Backup function: | Yes |
| Browser supported: | Apple Safar, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Built-in ftp server: | Yes |
| Buzzer: | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Cables included: | LAN (RJ-45), AC |
| Chassis type: | Tower |
| Concurrent connections: | 1500 |
| Cooling type: | Active |
| Cpu configuration (max): | 1 |
| Depth: | 226 mm |
| Device class: | Home & Home Office |
| Dhcp server: | Yes |
| Disk roaming: | Yes |
| Dynamic dns (ddns): | Yes |
| Enhanced intel speedstep technology: | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 100, 10, 2500 Mbit/s, 1000 Mbit/s |
| External power adapter: | Yes |
| Fan diameter: | 7 cm |
| Fan voltage: | 12 V |
| Fibre channel: | Yes |
| Flash memory: | 4000 MB |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0 |
| Height: | 168 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Idle states: | Yes |
| Installed storage drive type: | No |
| Intel 64: | Yes |
| Intel trusted execution technology: | No |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Internal memory: | 8 GB |
| Iscsi support: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | Status, LAN, USB, HDD, Power |
| Linux operating systems supported: | Yes |
| Mac operating systems supported: | Mac OS X 10.14 Mojave, Mac OS X 10.15.3 Catalina, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 12.0 Monterey |
| Maximum ram supported: | 8 GB |
| Multilingual support: | Yes |
| Number of fans: | 1 fan(s) |
| Number of m.2 (m & b) slots: | 2 |
| Number of screws: | 12 |
| Number of storage drives supported: | 2 |
| Number of users: | 4096 user(s) |
| On-board graphics card model: | Intel® UHD Graphics |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | QNAP QTS |
| Operating system version: | 5.0.1 |
| Operating temperature (t-t): | 0 - 40 °C |
| Other operating systems supported: | IBM AIX 7.2, Solaris 10 SPARC, IBM AIX 7.1, Solaris 10, Solaris 11 SPARC, Solaris 11 |
| Package weight: | 2.68 kg |

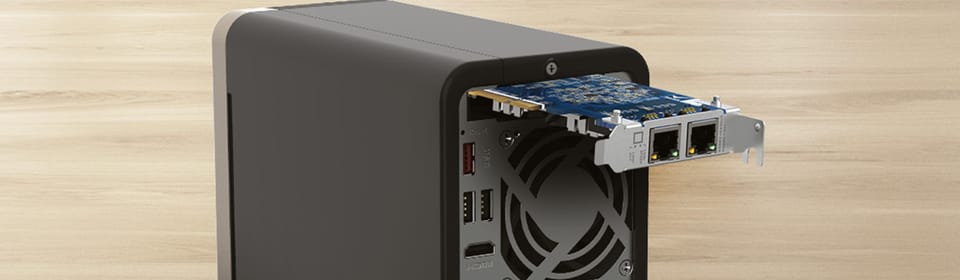

| Pci express x2 (gen 3.x) slots: | 1 |
| Power cables quantity: | 1 |
| Power consumption (sleep): | 8.198 W |
| Power consumption (typical): | 12.448 W |
| Power supply location: | External |
| Power supply unit (psu) capacity: | 65 W |
| Processor boost frequency: | 2.9 GHz |
| Processor cache: | 4 MB |
| Processor cores: | 4 |
| Processor family: | Intel® Celeron® |
| Processor frequency: | 2 GHz |
| Processor manufacturer: | Intel |
| Processor model: | N5095 |
| Processor threads: | 4 |
| Product colour: | Black, Gold |
| Quick installation guide: | Yes |
| Raid levels: | JBOD, 0, 1 |
| Raid rebuild: | Yes |
| Raid support: | Yes |
| Remotely operated: | Yes |
| Reset button: | Yes |
| S.m.a.r.t. support: | Yes |
| Security algorithms: | FIPS 140-2, 256-bit AES |
| Server operating systems supported: | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019, Windows Server 2012 |
| Share folder: | 512 |
| Share folder access right management: | Yes |
| Snapshot: | Yes |
| Storage drive sizes supported: | 2.5, 3.5 |
| Storage drives installed: | No |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported file systems: | ext4, FAT32, HFS+, ext3, NTFS, exFAT |
| Supported network protocols: | IPv4, IPv6 |
| Supported storage drive interfaces: | Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Type: | NAS |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Usb copy function: | Yes |
| Usb port: | Yes |
| Weight: | 1.55 kg |
| Width: | 105 mm |
| Windows operating systems supported: | Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 8.1, Windows 7 Ultimate x64, Windows 7 x64, Windows 8 Pro x64, Windows 8.1 Pro, Windows 10 Pro, Windows 7 Home Premium, Windows 7 Starter, Windows 10 IoT Enterprise, Windows 8.1 Enterprise, Windows 7 Professional, Windows 7, Windows 10 Education x64, Windows 10 Pro x64, Windows 8 Enterprise, Windows 8 x64, Windows 10 Education, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Home Premium x64, Windows 7 Enterprise x64, Windows 11, Windows 10 Home, Windows 7 Starter x64, Windows 7 Professional x64, Windows 10 Home x64, Windows 8, Windows 10, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 8 Pro, Windows 7 Enterprise, Windows 7 Home Basic, Windows 7 Ultimate, Windows 10 Enterprise x64, Windows 10 x64 |
