Switches are designed for manual control of electrical circuitsThe devices are equipped with a descriptive window that allows easy identification
The LE-412916 is designed for mounting on the TS-35 DIN rail

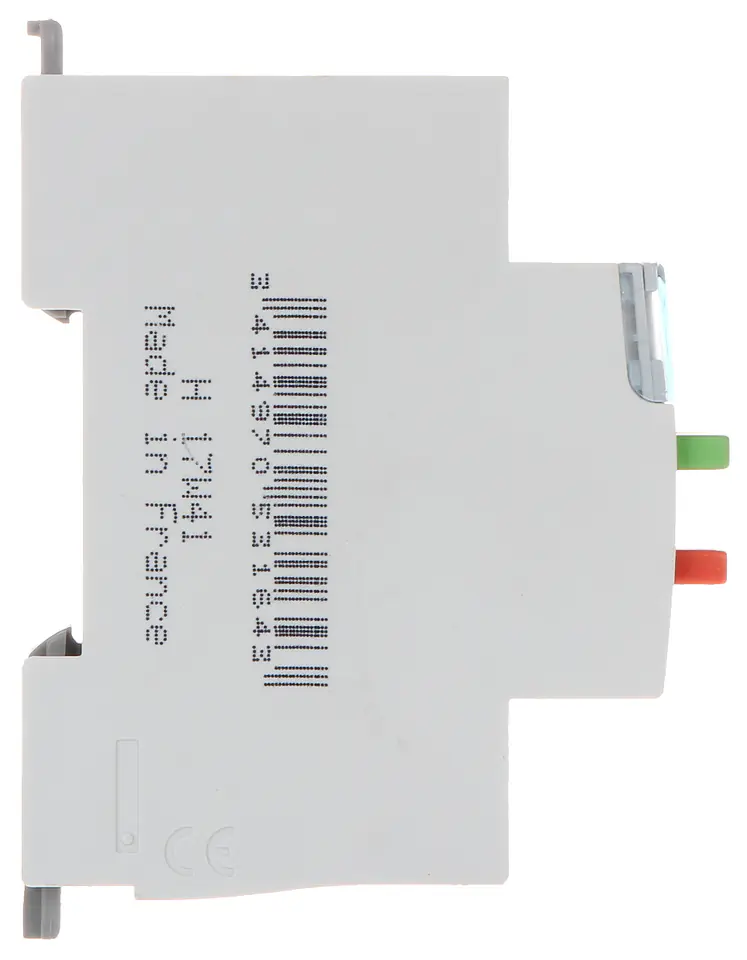

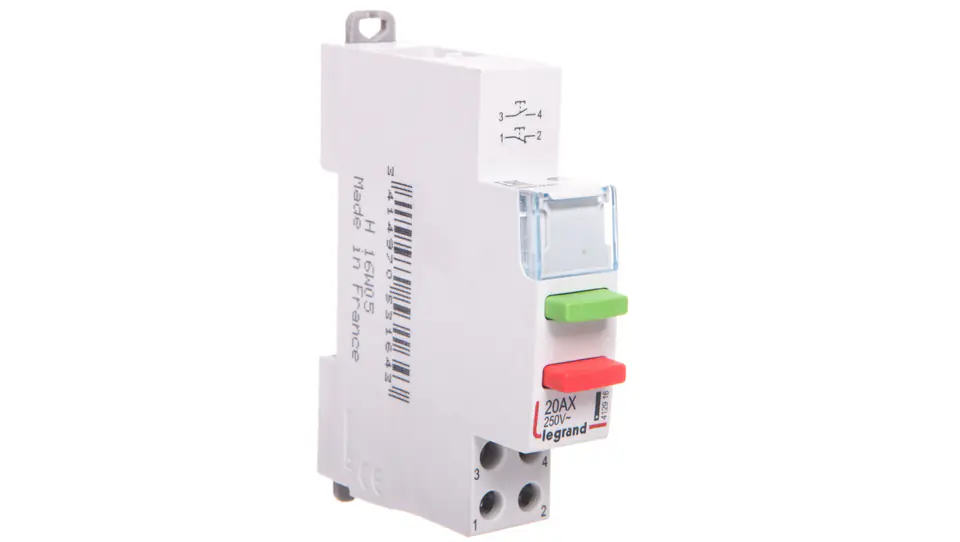

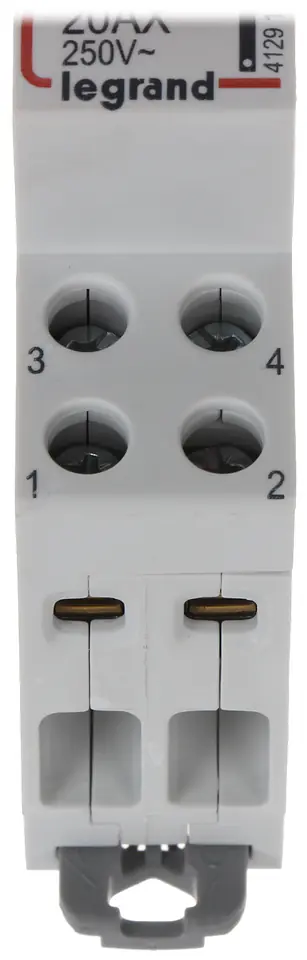

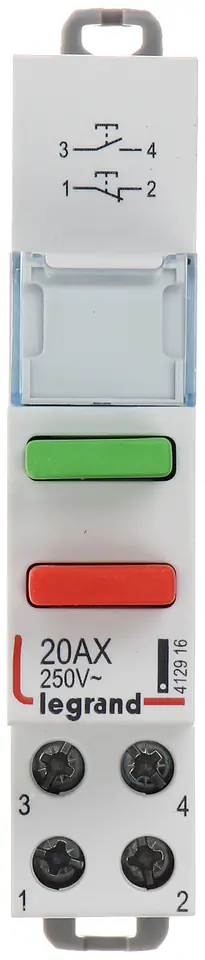

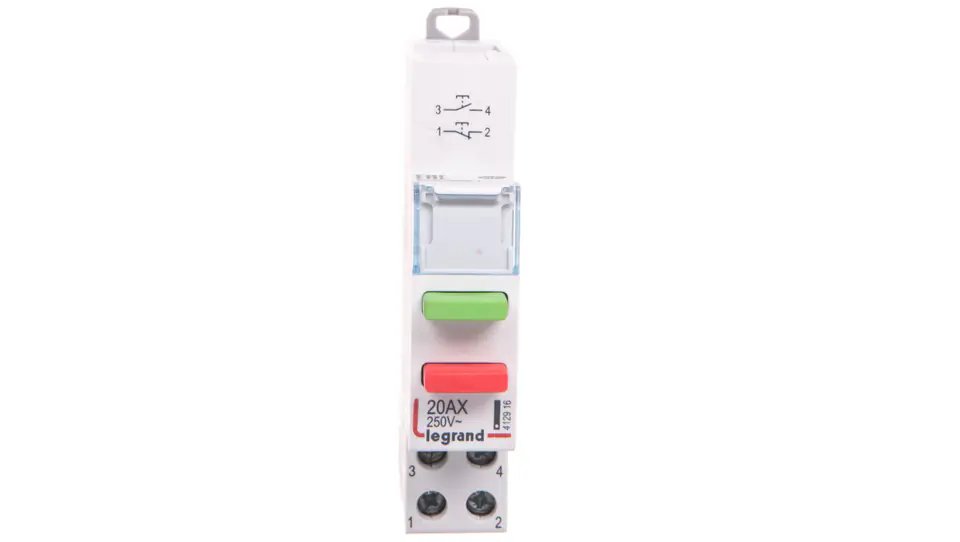

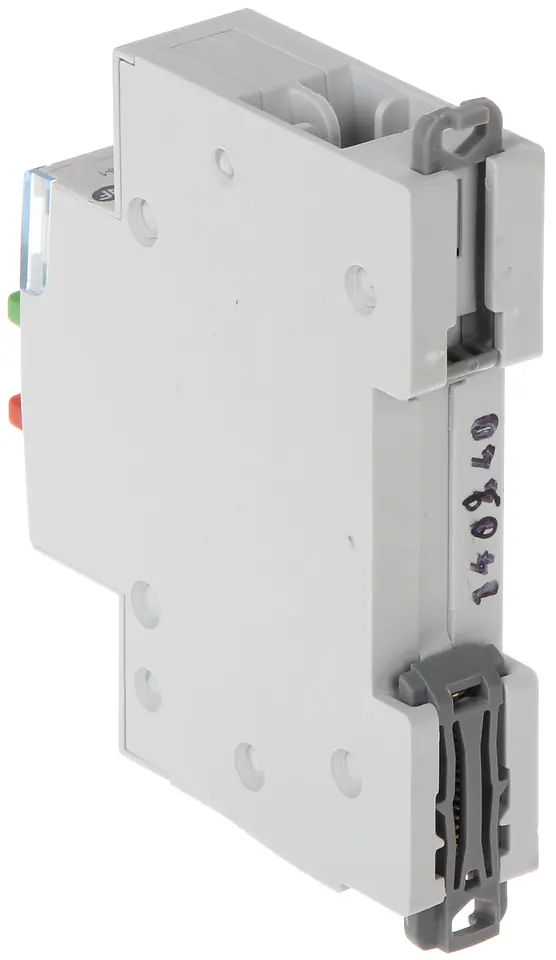

PUSHBUTTON CONNECTOR DOUBLE MONOSTABLE LE-412916 1X NO + 1X NC 20 A LEGRAND
PLN 134.55
Shipping from warehouse: D4
Estimated shipping: Thu, Oct 30 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Legrand
- Product code:
- 412916 / 3414970531643
Share this product:
Specification
| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Category of use:: | AC12 |
| Connector type:: | screw terminals |
| Current:: | 20 A |
| Device type:: | Pushbutton connector double monostable, 1x NO - Green + 1x NC - Red |
| Dimensions:: | 94.9 x 67.3 x 17.8 mm |
| Insulation rated voltage:: | 500 volts |
| Manufacturer / brand:: | LEGRAND |
| Rated surge voltage withstand:: | 4 kV |
| Scales:: | 0.06 kg |
| Selected features:: | Can be connected by stick rails Provided space for a sheet of paper with a description Compatible with fluorescent lamps (20 AX) |
| Voltage:: | 250 V AC, 50/60 Hz |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 1 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
