Tuner 106

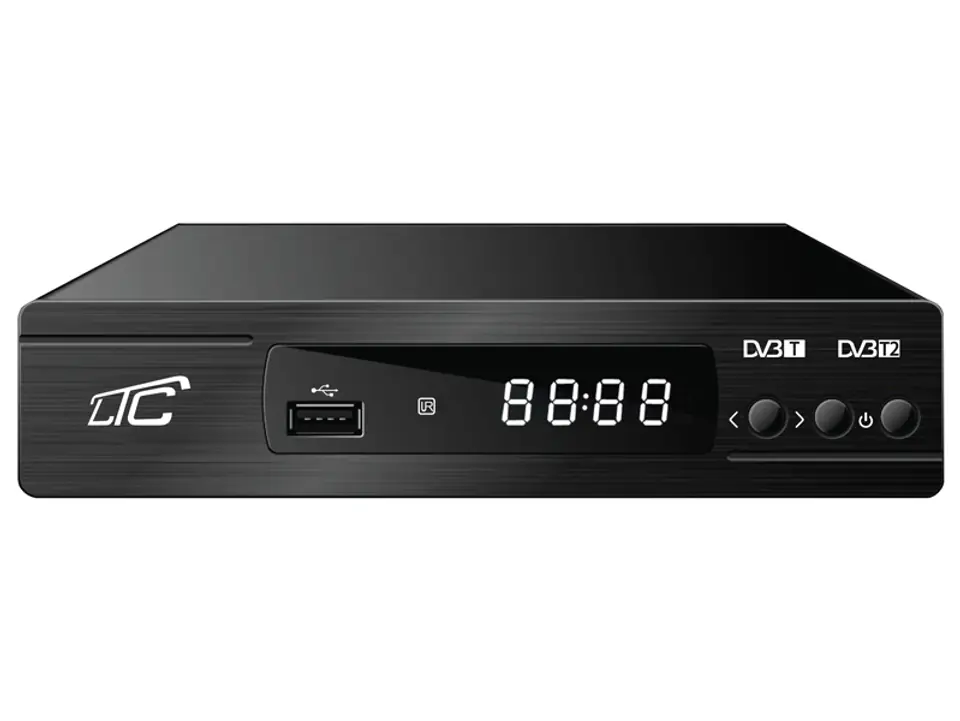

High quality set-top box for receiving digital terrestrial DVB-T Full HD television programs from LTC. The device is equipped with a number of practical functions and a numeric display and buttons located on the front panel, which significantly increases the comfort of use.
A good STB HD set-top box guarantees reception of all free-to-air DVB-T programs and DVB-T2 digital terrestrial television system. Built-in MPEG layer 1&2 and AAC decoders guarantee excellent sound reception. The device receives TV programs broadcast in Full HD 1080 high definition.
Connection of the tuner to any type of TV is guaranteed via HDMI or via EURO. The decoder is equipped with a very sensitive head. The device also gives the ability to power the antenna amplifier through a decoder, and using the USB connector and advanced multimedia functions you can watch movies, view photos and listen to music from an external memory.

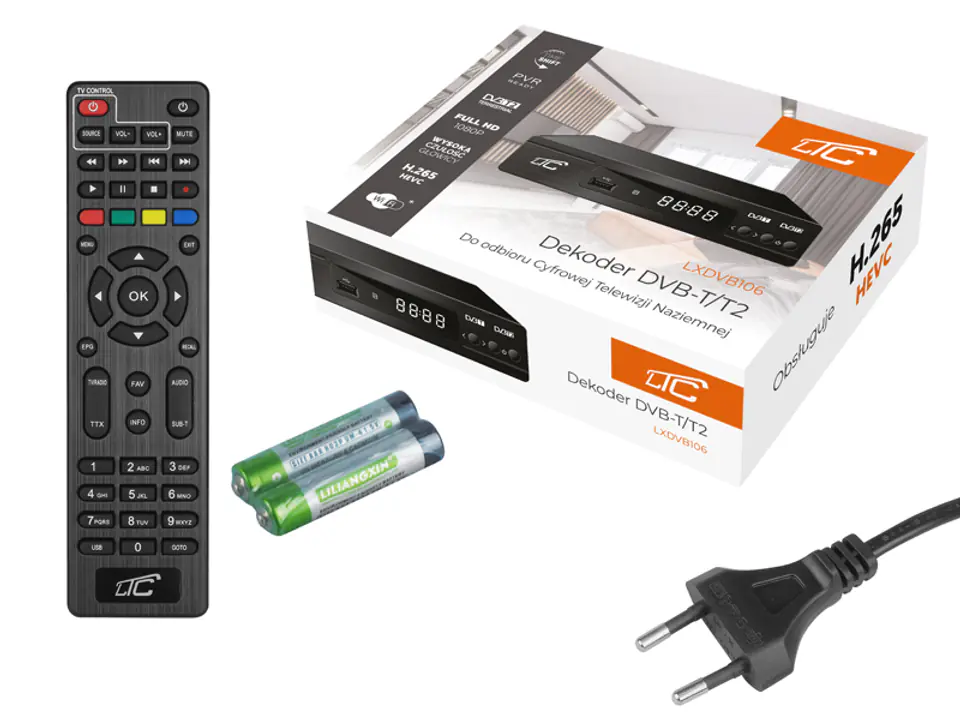

Remote control
Another advantage of the set is the remote control, equipped with 4 programmable buttons. Thanks to this, the user has the ability to program one remote control to operate both the set-top box and, for example, the TV, which greatly facilitates the use of devices. Only one remote control is enough for full operation.
Decoder features
*The set-top box has the function of receiving WiFi signal using a WiFi antenna, connected to the USB socket! (Antenna not included, unit sold separately.)
br>
| Brand | LTC |
| Model | DVB105 |
| Standard | DVB-T, DVB-T2 |
| VHF frequency range | 170 - 230 MHz |
| UHF frequency range | 470 - 860 MHz |
| Codecs | MPEG-1, MPEG-2, MPEG-4, H.264, H.265 8-bit, HEVC H.265 HDR 10-bit |
| Input signal level | 78 dBm to -20 dBm (average power) |
| Input impedance | 75 ohms |
| IF bandwidth | 7/8 MHz |
| Audio Decoding | MPEG layer 1 & 2, AAC |
| Audio modes | Mono / Stereo / Stereo Combined / Dolby Digital Plus |
| Image resolution | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p |
| Image format | 4:3 or 16:9 |
| Flash | 32 MB |
| SD RAM | 512 MB |
| Supply voltage | 100 - 240 V ~ 50/60 Hz |
| Maximum power consumption | <10 watts |
