Outdoor card and key ring reader designed to work in the access control and building automation system RACS 5Standard MIFARE DESFire/Plus

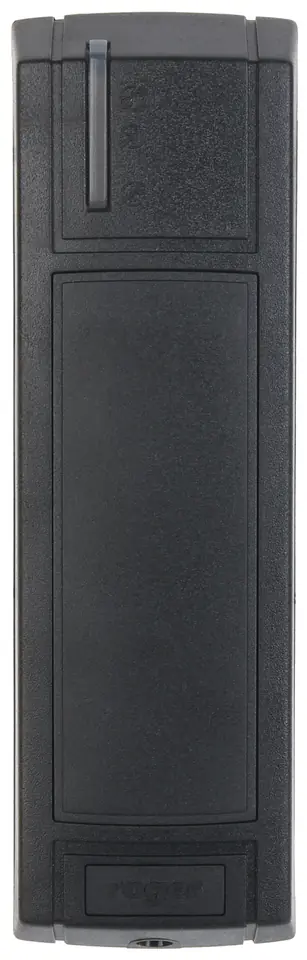

PROXIMITY READER MCT12M-BK-DES-IO ROGER
€180.93
Shipping from warehouse: D4
Estimated shipping: Fri, Oct 31 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- MCT12M-BK-DES-IO / 5907608961120
Share this product:
Specification
| Average current consumption: | ~ 50 mA |
|---|---|
| Card read range: | .max. 7 cm |
| Card support: | MIFARE Ultralight, MIFARE Classic, MIFARE Plus, MIFARE DESFire |
| Communication: | RS-485 |
| Cooperation: | RACS 5 (Roger) |
| Dimensions: | 152 x 46 x 23 mm |
| Operating temperature: | -25 °C ... 60 °C |
| Permissible relative ambient humidity: | 10 ... 95 % (non-condensing) |
| Power: | 10 ... 15 volts DC |
| Producer / brand: | ROGER |
| Scales: | 0.15 kg |
| Sealing: | IP65 |
| Selected features: | Tamper protection (detection of detachment from the mount and opening of the enclosure) LED signaling Beep Built-in I/O lines 3 inputs 1 Relay output : REL1 - NO/NC, 30 V AC/DC / 1.5 A Two transistor outputs: IO1, IO2 - Open collector type (OC), max. 15 V DC / 1 A |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
