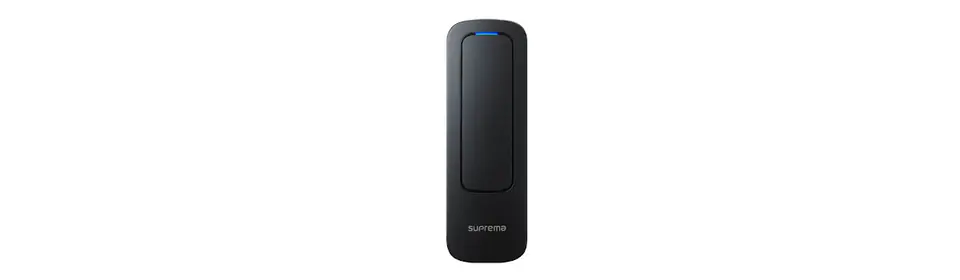

Proximity Card Reader Suprema Xpass 2 XP2 MDPB

This product is not available
Availability:
expected delivery
Brand:
Suprema
Product code:
XP2 MDPB / 5900626930222

Specification

Access chip/card reader:Yes
Access chip/card reader type:Contactless
Additional information:Limit of users: 200,000 | Event limit: | 1,000,000 Certificates: CE, FCC, KC, RoHS, REACH, WEEE, SIG | Mobile Card: NFC, BLE
Authentication type:Access chip/card
Bluetooth:Yes
Built-in display:No
Built-in processor:Yes
Colour:Black
Compatibility:125kHz card - EM | 13.56 MHz cards - MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
Connectors:RS-485, 100M Ethernet, Wiegand, 2x TTL
Dc voltage range:12 - 24 V
Depth:27 mm
Dimensions:48 x 145 x 27 mm
Ethernet lan data rates:100 Mbit/s
Flash:4 GB
Front camera:No
Gsm module:N
Height:145 mm
International protection (ip) code:IP67
Iris reader:N
Led indicators:Status
Manufacturer's warranty:24 months
Memory:64 MB SDRAM
Mounting type:surface-mounted
Near field communication (nfc):Yes
Operating temperature:-35°C to 65°C
Operating temperature (t-t):-35 - 65 °C
Permissible humidity:0%~95%RH non-condensing
Power:24 volts
Processor:1.00 GHz
Processor frequency:1000 MHz
Product colour:Black
Protection class:IP67, IK08
Storage relative humidity (h-h):0 - 95%
Type:Basic access control reader
Vandal-proof:Y
Waterproof:Yes
Wi-fi:No
Width:48 mm

Suprema Xpass 2 XP2 MDPB

XPass 2 is an external compact proximity reader, based on Suprema's state-of-the-art RFID technology and versatile hardware platform. Mounted as surface-mounted. XPass 2 also supports dual-frequency RFID technology (125kHz / 13.56MHz) and can support mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a dust- and water-resistant (IP67) and vandal-resistant (IK08) housing, suitable for installation in harsh ambient and outdoor conditions.

Proximity Card Reader Suprema Xpass 2 XP2 MDPB

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
