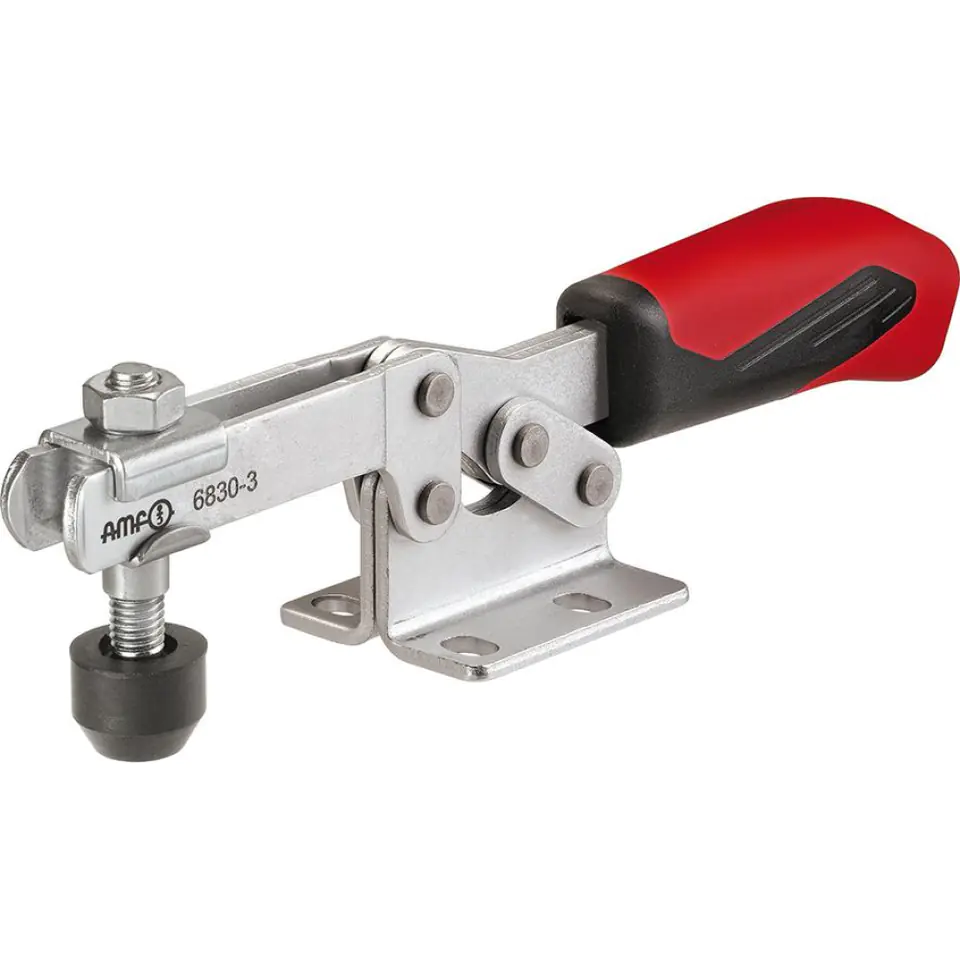

Quick clamping, horizontal, horizontal, galvanized and passivated
Delivery: complete with heat-treated, galvanized pressure screw.
Pressure fast power.levels 6830 wlk.6 AMF
€93.37
Shipping from warehouse: B6
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AMF
- Product code:
- 561275 / 4020772022341
Share this product:

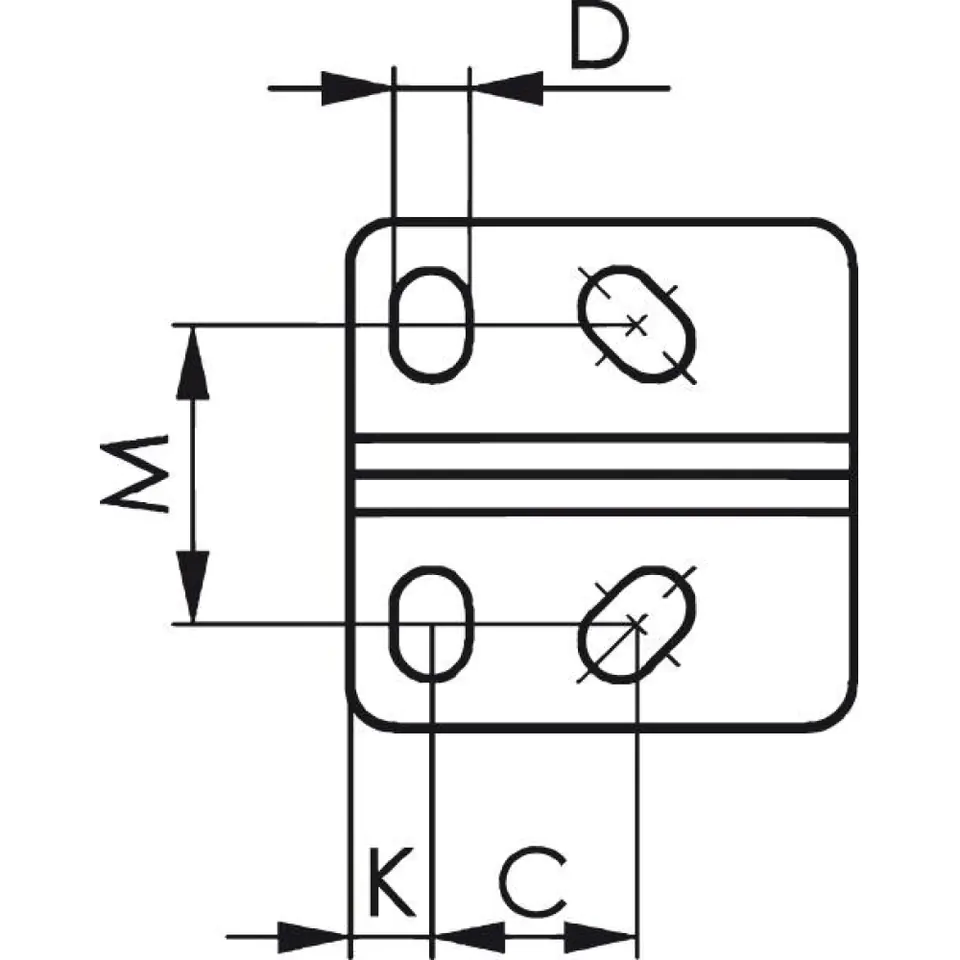

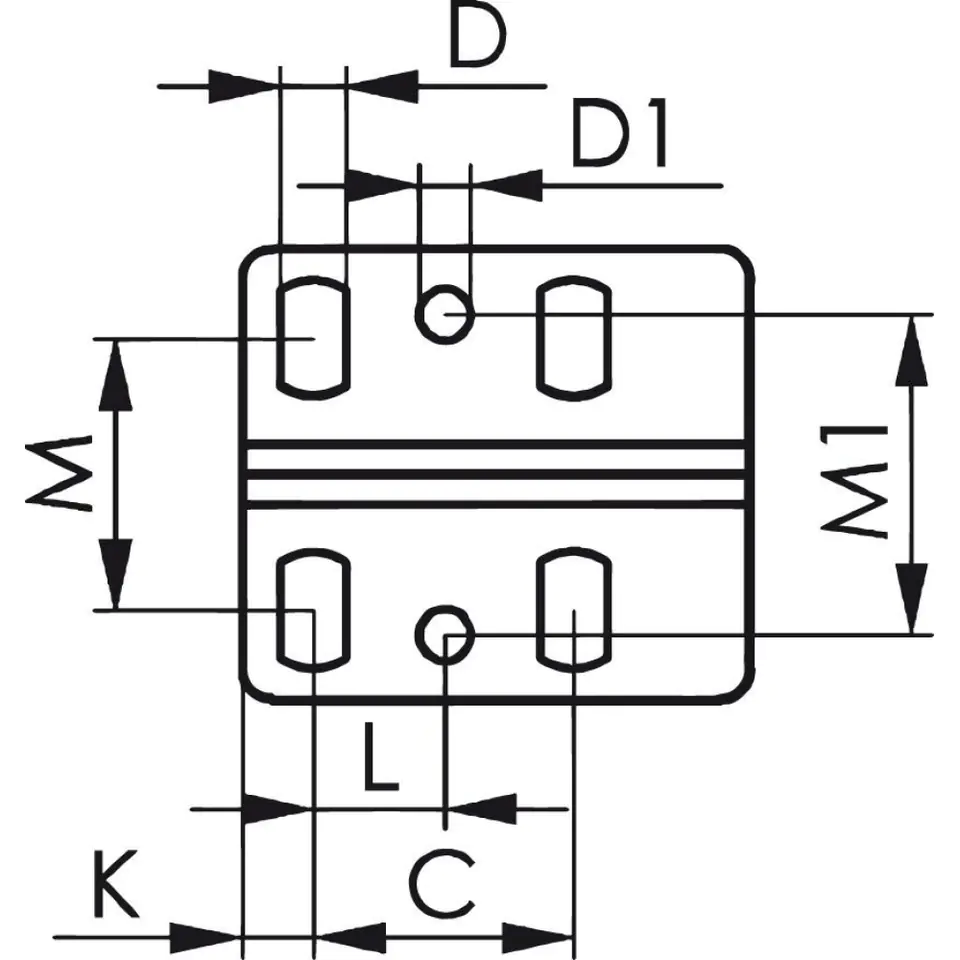

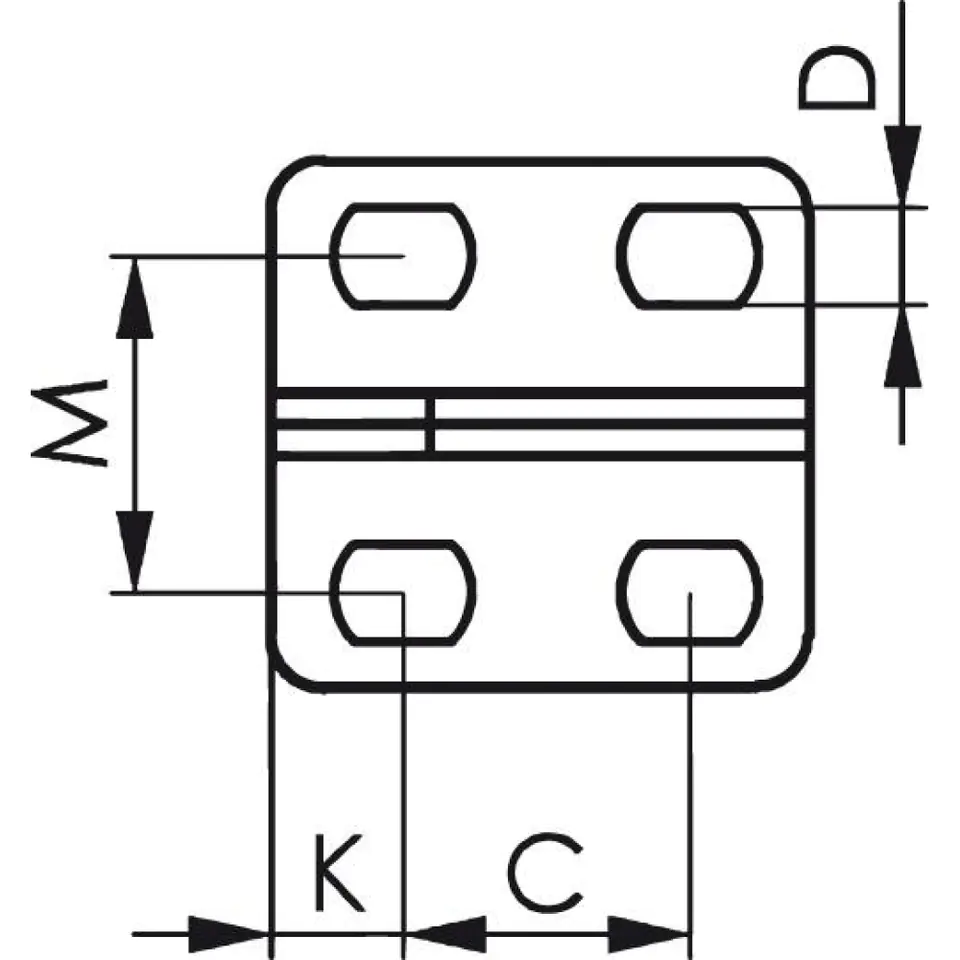

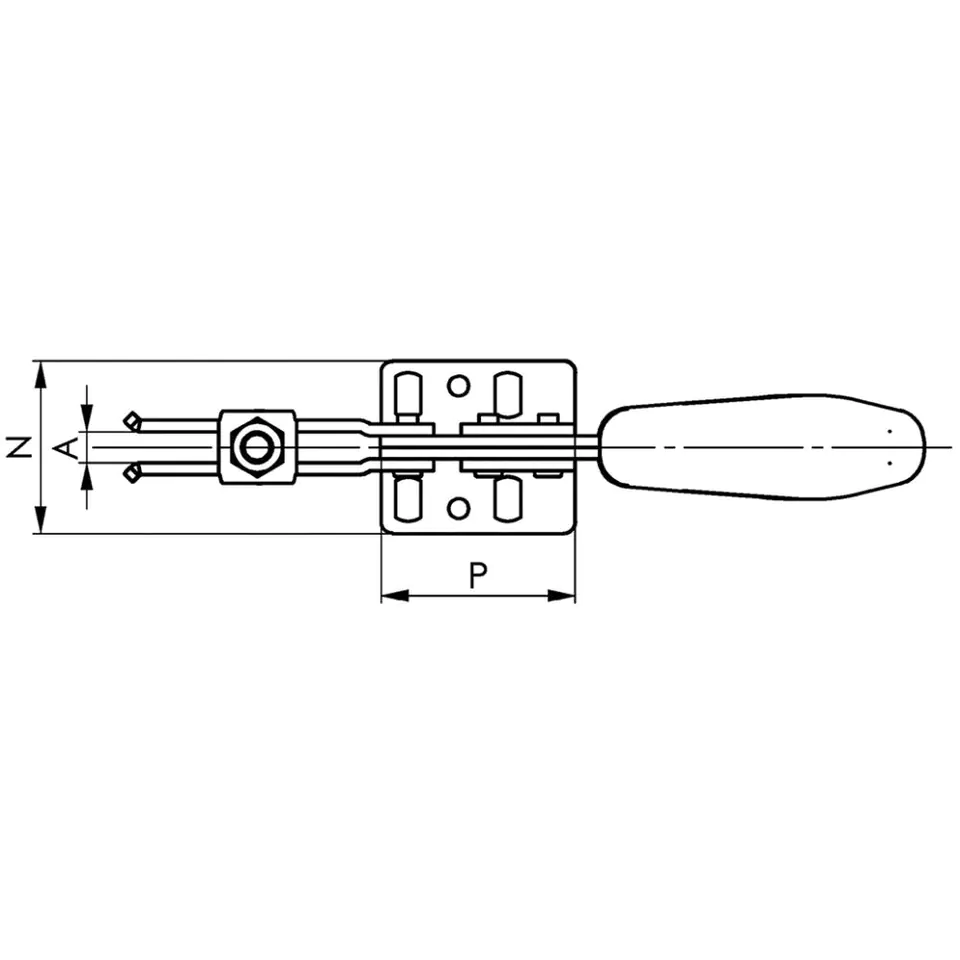

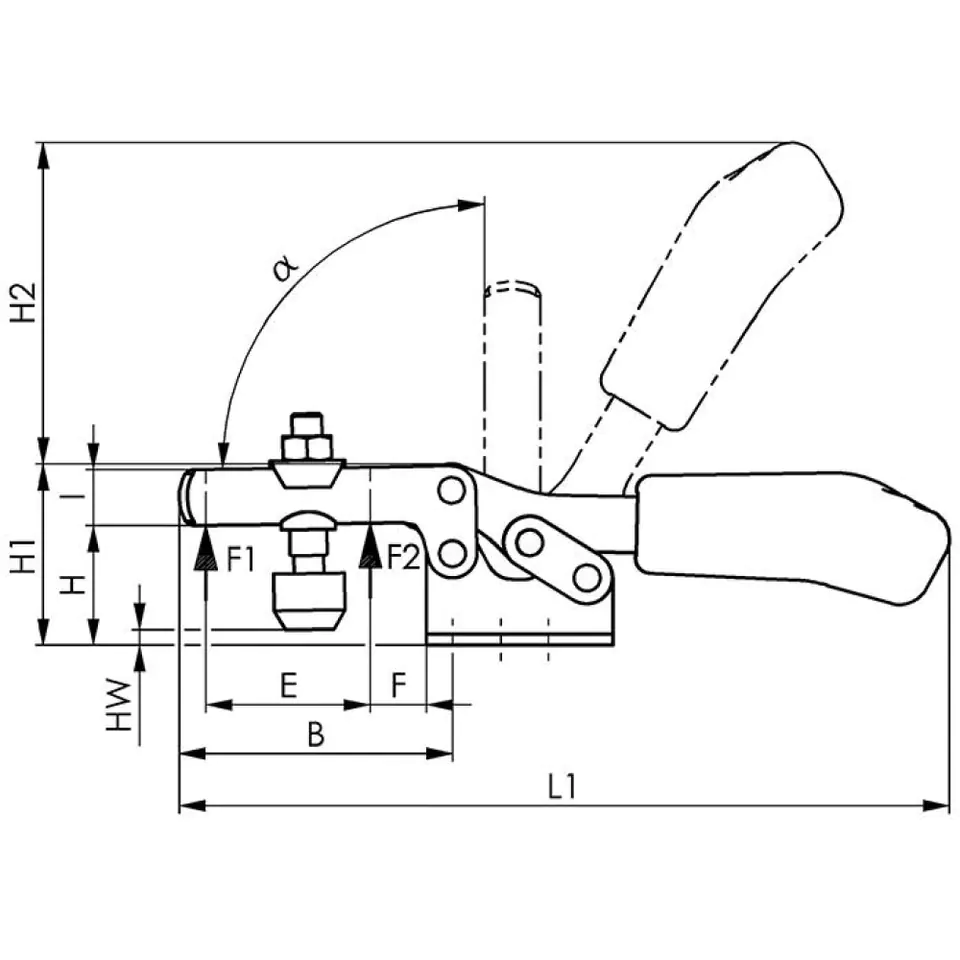

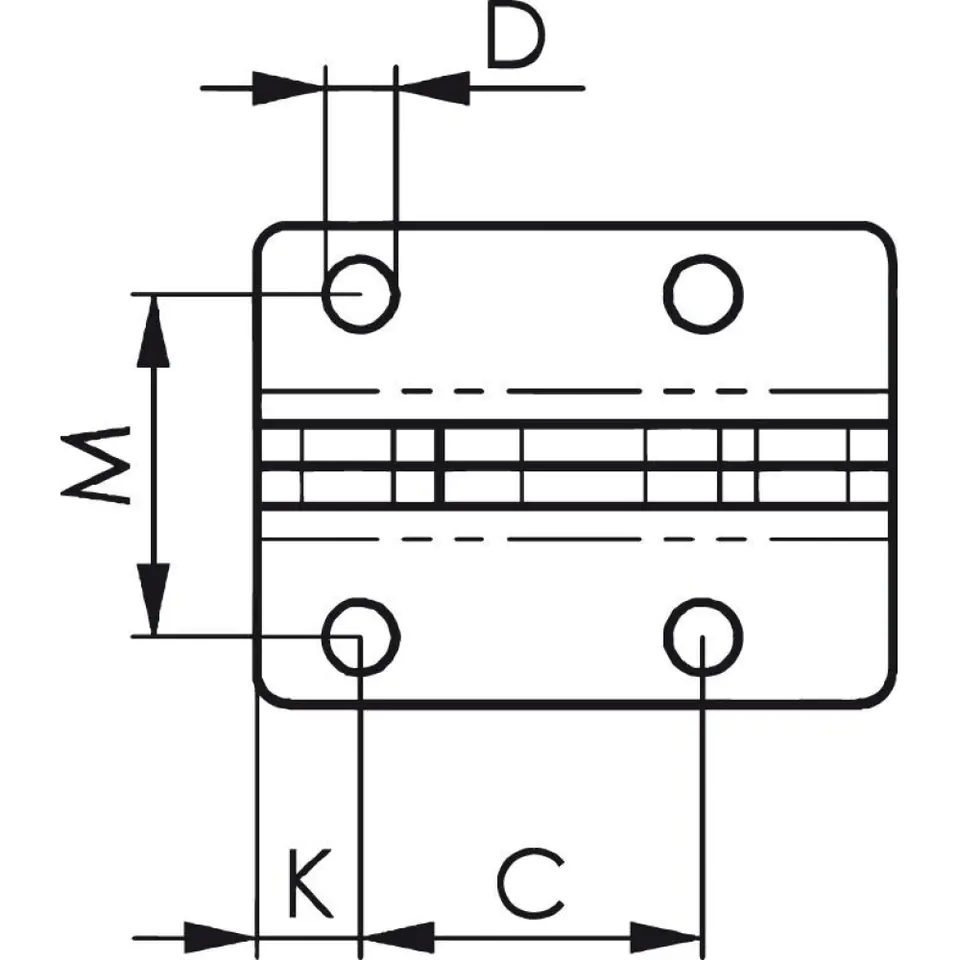

Specification
| A: | 10 |
|---|---|
| Alpha: | 83° |
| And: | 30 |
| B: | 110 |
| C: | 57,7 |
| D: | 9,8 |
| D1: | 8,7 |
| E: | 59,3 |
| F: | 20,6 |
| F1: | 4 kN |
| F2: | 7 kN |
| H: | 71,5 |
| H1: | 114,5 |
| H2: | 181 |
| Hw max.: | 44 |
| Hw min.: | –6 |
| K: | 11,5 |
| L: | 43,5 |
| L1: | 354 |
| M: | 32,1–43,8 |
| M 1: | 31,6 |
| N: | 66,5 |
| No: | 561275 |
| P: | 95 |
| Pressure screw: | M10 x 116 |
| Scales: | 1925 g |
| Size: | 6 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
