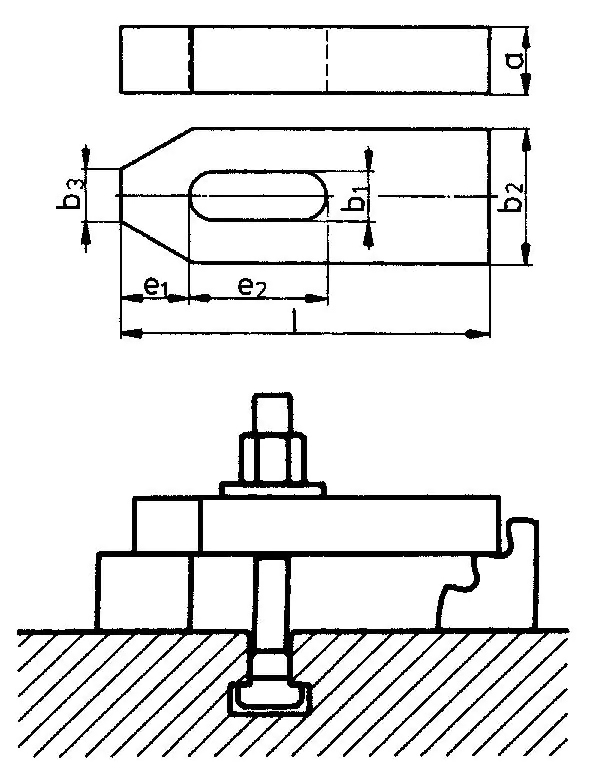

| A: | 12 mm |
|---|---|
| B2: | 25 mm |
| B3: | 10 mm |
| E1: | 13 mm |
| E2: | 22 mm |
| For screws: | M8 |
| Gap width b1: | 9 mm |
| Length l: | 60 mm |

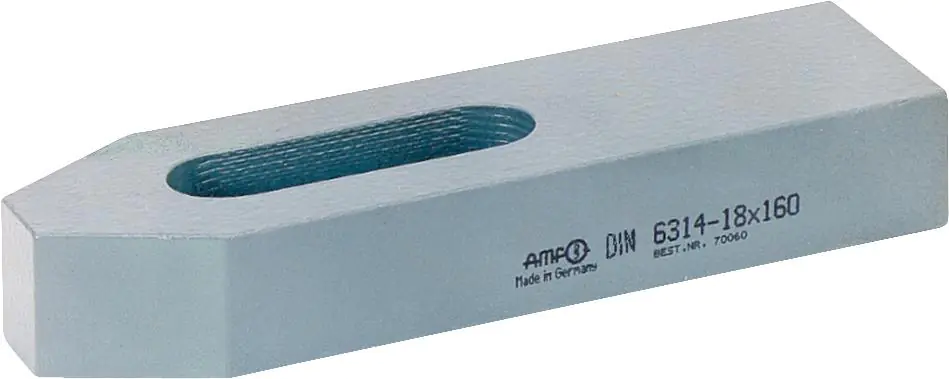

Single pressure foot, DIN 6314
Material: heat treated steel, varnished. With parallel contact and pressure surfaces.
Application: the pressure feet can be combined with various attachment pads to suit the most diverse shapes and sizes of workpieces.
