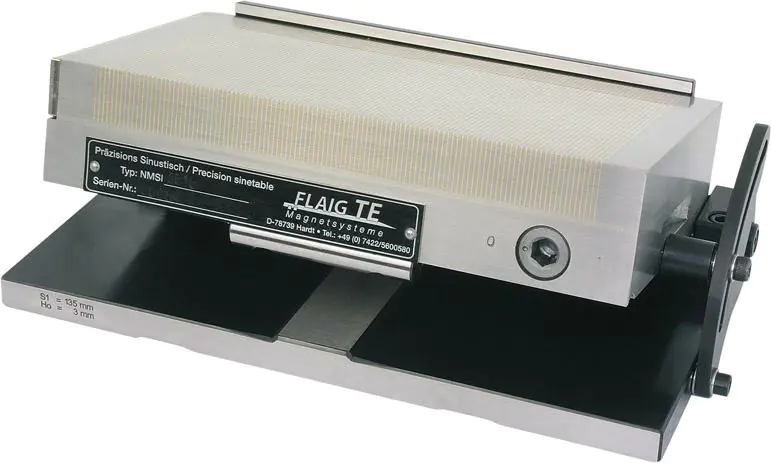

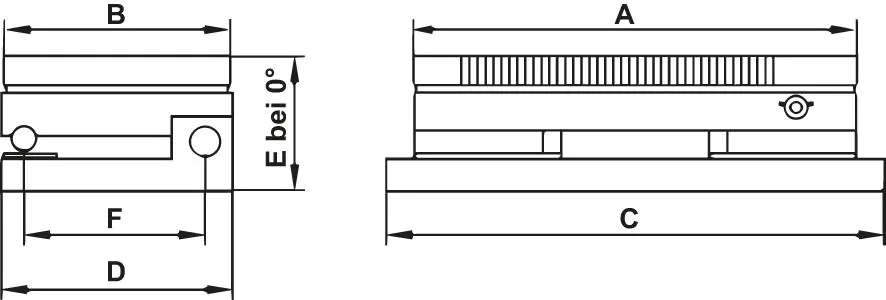

Sine table, precision
Design: high-precision sine table with built-in magnetic fixing plate with permanent magnets. Body hardened to 60 HRC, oxidized, precisely ground. Deviation in the longitudinal axis up to 45°. Angle adjustment according to the principle of sinusoid using standard plates. Processing of the top plate without adversely affecting its operation is possible up to a depth of 5 mm.
Adhesion force: approx. 100 N/cm2
Magnetic field height: approx. 5 mm
Surface parallelism: 0.005/100 mm
Angle accuracy: ±0.0013°/±5 sec
Application: for fixing parts during EDM machining, grinding and measuring with the highest precision.
