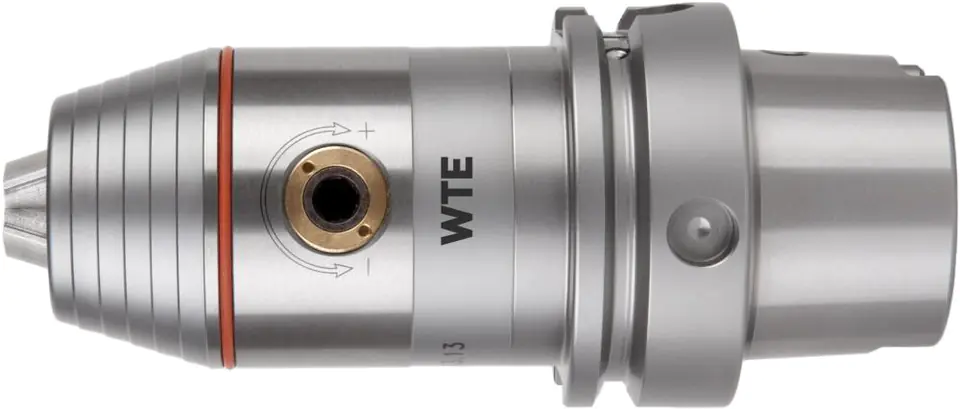

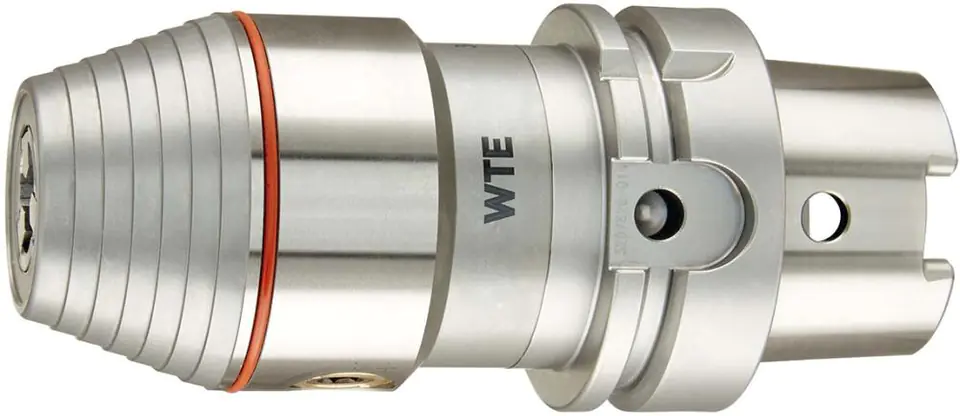

CNC precision chuck, right- and left-hand, DIN 69893, shape A, with central coolant supply
Material: special carburizing steel for heavy loads with a minimum core tensile strength of 1000 N/mm2. Modular design. The clamping (using a hex wrench) allows a significant increase in clamping force compared to traditional chucks. At the same time, the handle is protected against loosening at left turns and fast deceleration from high rotational speeds.
Cone angle tolerance: AT3
Hardness after hardening: 58 ±2 HRC
Application: for use on CNC machines and machining centers. For clamping tools with cylindrical shank.
Scope of delivery: precision CNC chuck with hex wrench with drill gasket with cooling channel with a diameter of 3-6 mm.
