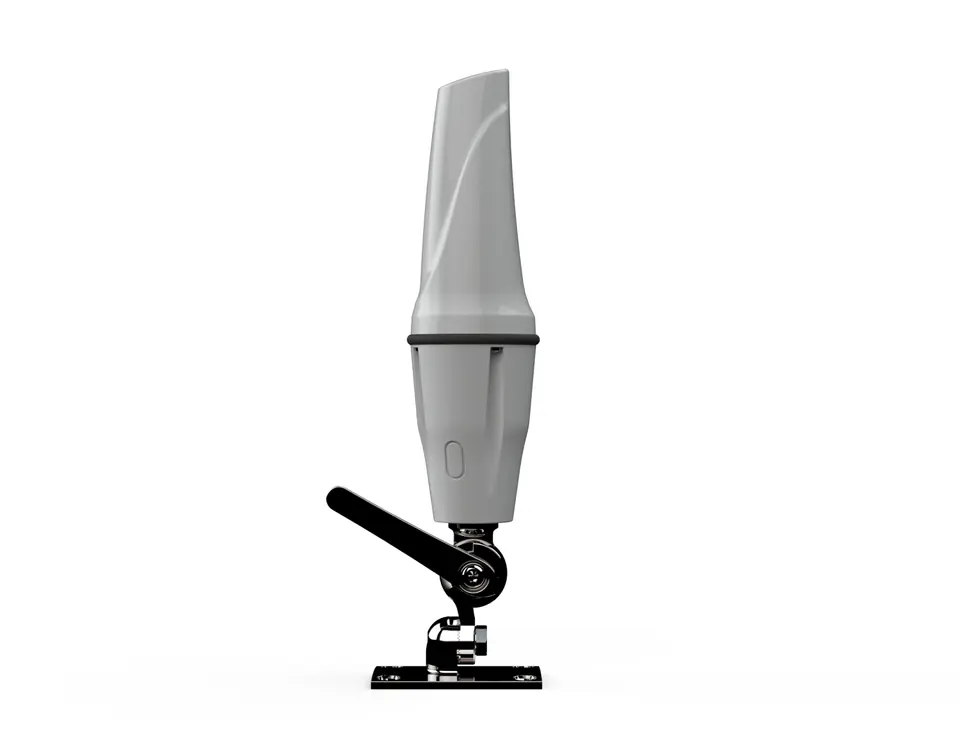

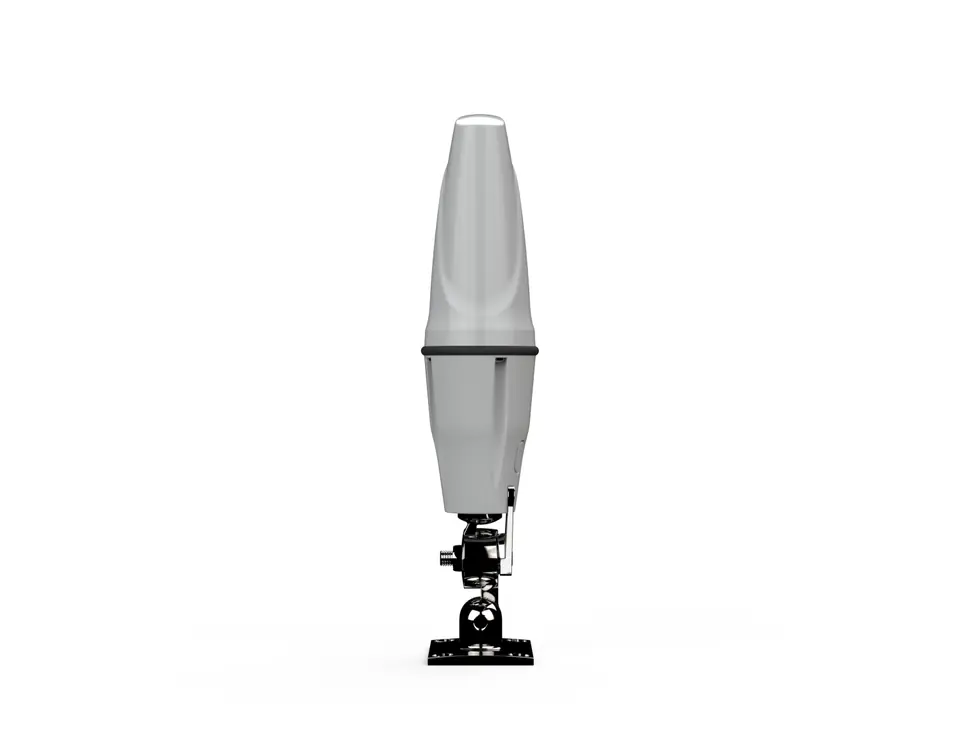

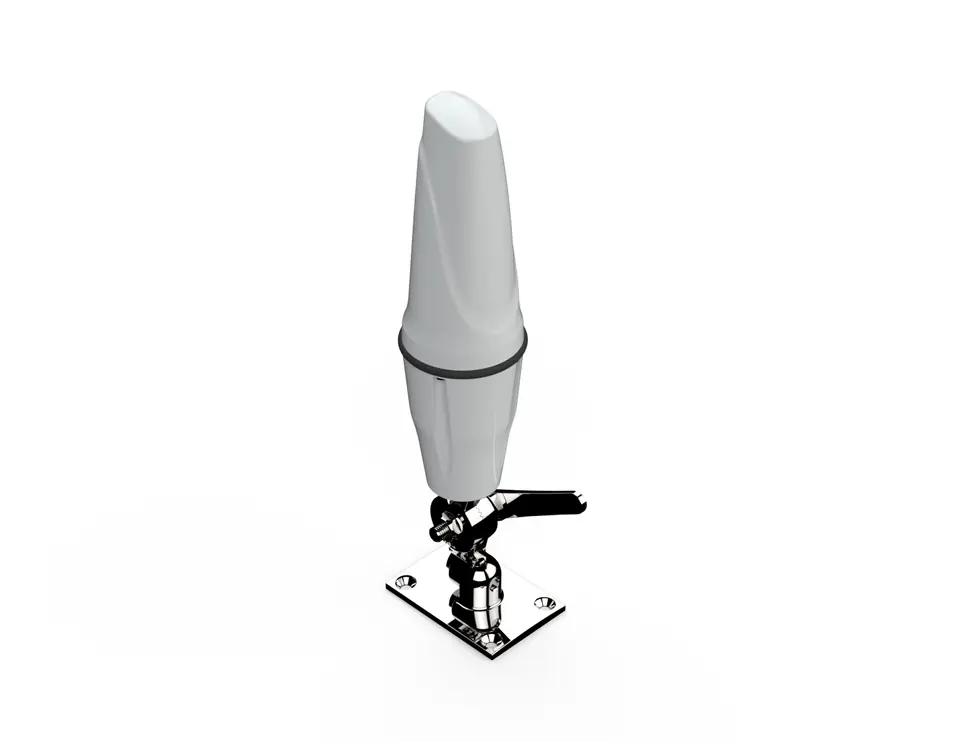

Poynting Omni-404 Wideband Omni-directional Antenna
The OMNI-404 is a wider LTE/5G antenna with a smaller profile shield, specifically designed for harsh marine and coastal environments. This antenna covers all modern LTE operating frequencies, from 698 to 3800 MHz, with perfectly balanced gain on all frequencies, enhancing LTE performance capabilities such as multi-carrier aggregation (CA). This antenna is also suitable for all 5G networks up to 3800 MHz. The antenna has been designed for excellent pattern control over the entire frequency range, making the OMNI-404 a unique omnidirectional antenna due to its size and application. Poynting achieves this thanks to a new antenna design using multiple dipoles and a unique (patented) power grid. The standard 1-inch (14 TPI) offshore connector is used to simplify installation in most standard marine attachments.
- Medium gain omnidirectional antenna
- The antenna is designed for marine and coastal applications

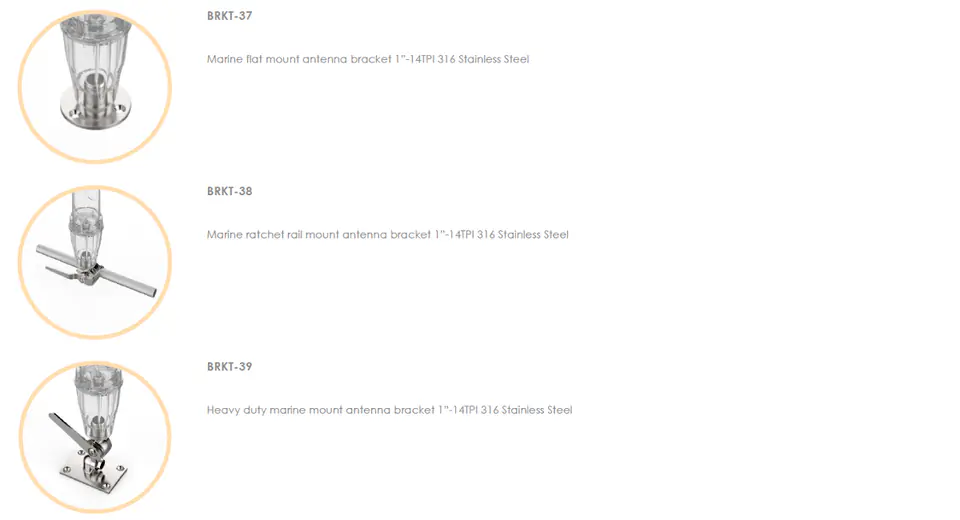

- Fits directly into standard 1-inch (14 TPI) marine mount
- UV and salt water resistant
- Robust and weatherproof with IP 69K rating

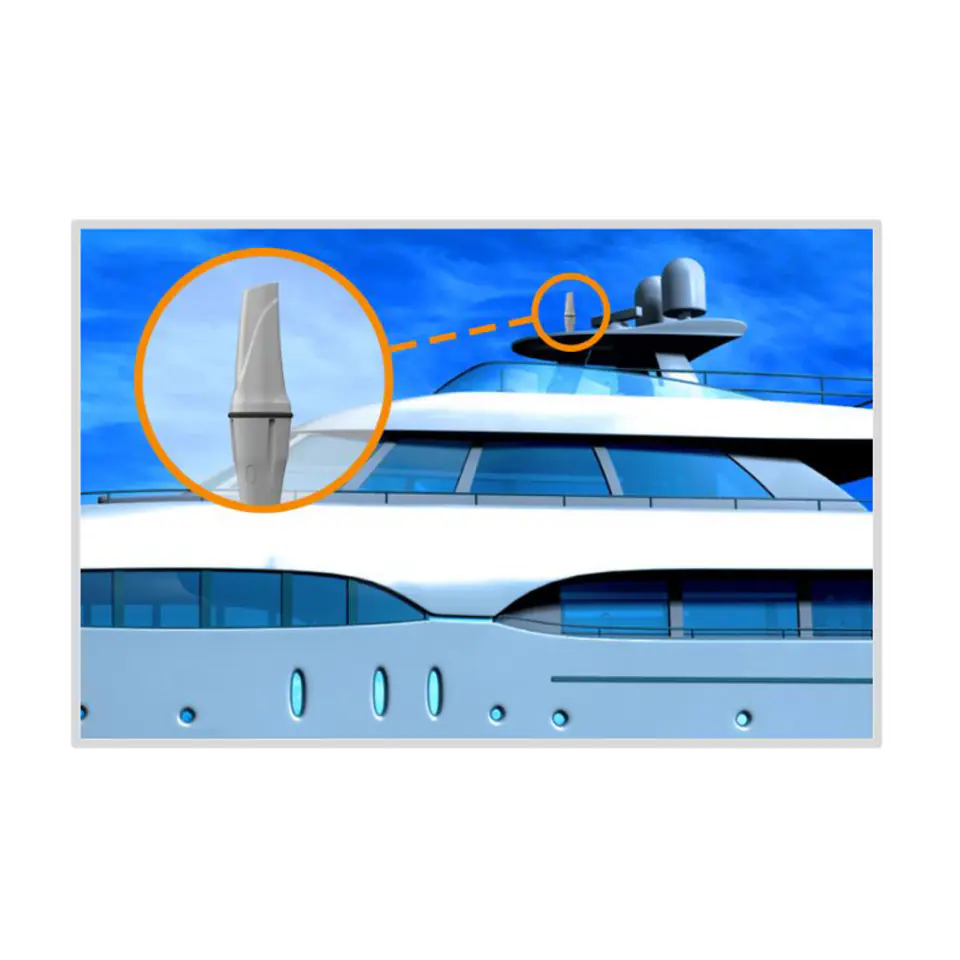

- Marine applications / Yachts / Boats / Ferries
- Improved LTE reception
- Internet of Things and M2M
- Poor data signal reception
- Improved reliability and stability of data connection

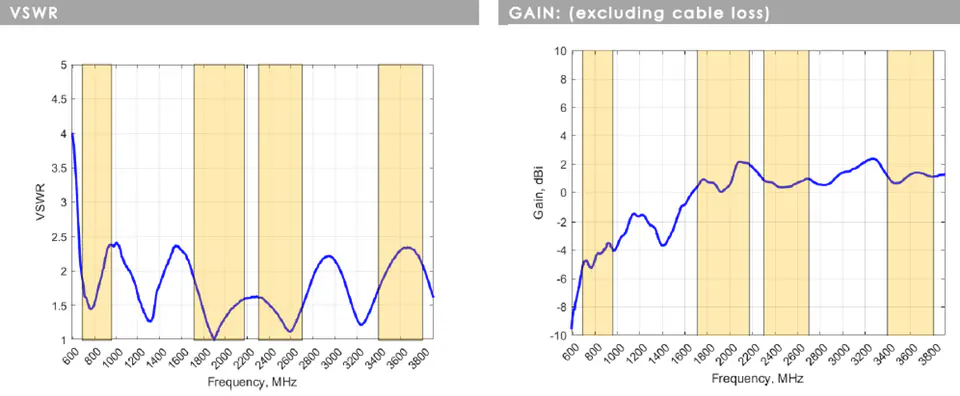

VSWR is a measure of how efficiently radio frequency power is transmitted from a power source through a transmission line to a load. In an ideal system, 100% of the energy is transmitted, equivalent to VSWR 1:1 The OMNI-404 delivers excellent performance on all bands with a VSWR ratio of <2.5:1
*VSWR antenna measured with 2m low-loss cable

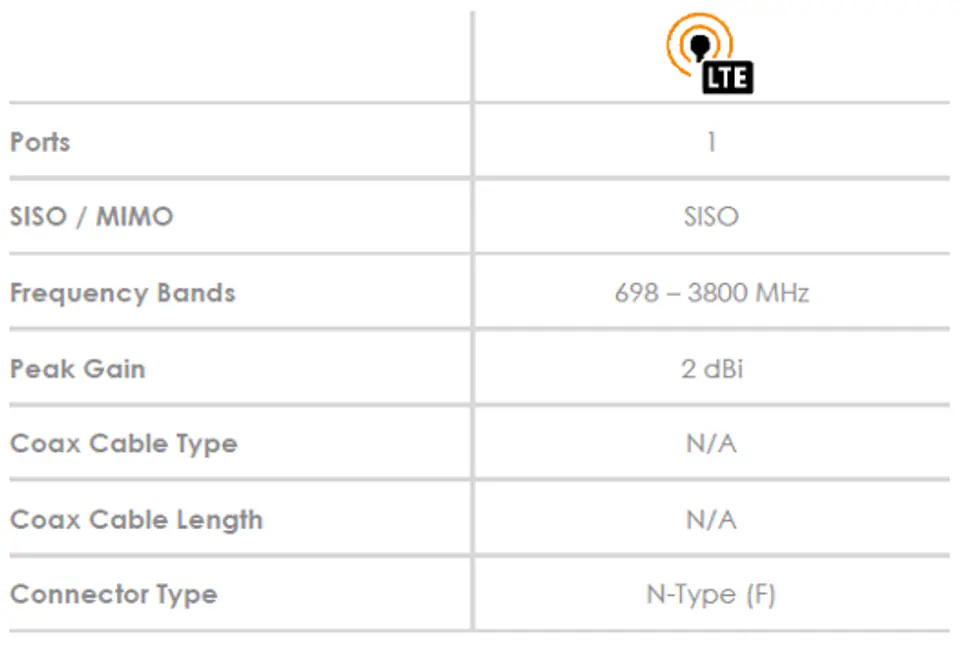

2 dBi is the peak gain in all bands from 698 – 3800 MHz
- Gain @ 698-960 MHz: -4 dBi
- Gain @ 1710-2700 MHz: 2 dBi
- Gain @ 3400-3800 MHz: 1.5 dBi
*Antenna gain measured with standard polarization-aligned antenna

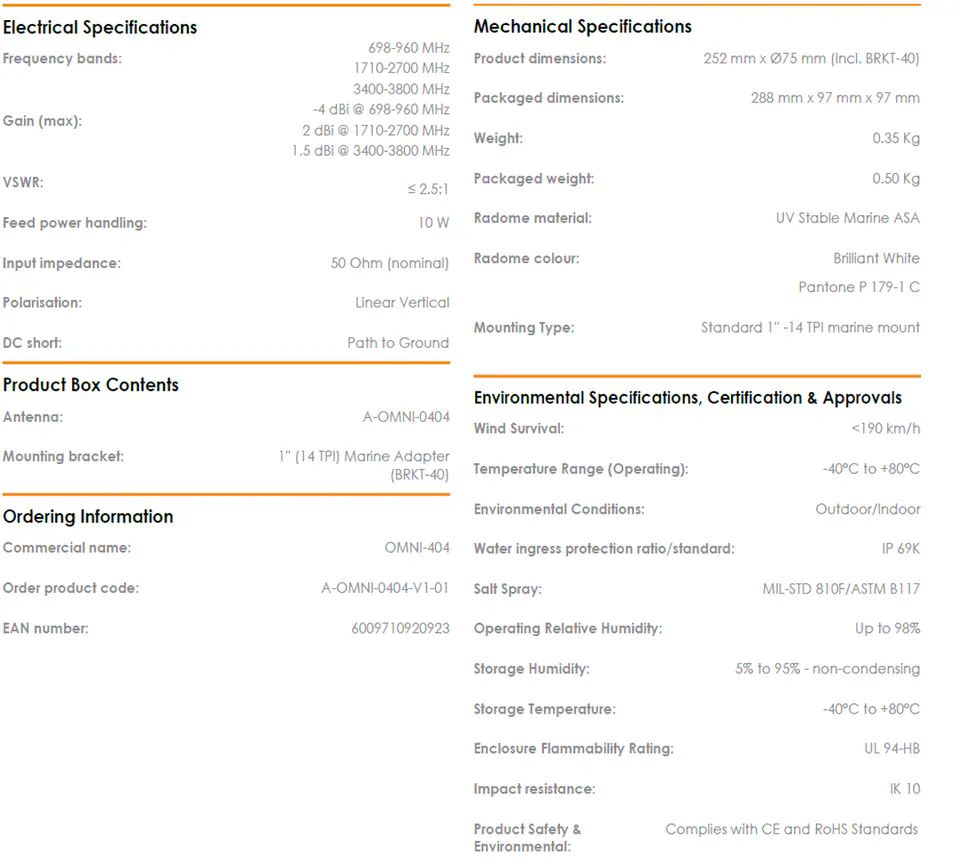

Click here for full antenna technical documentation.
