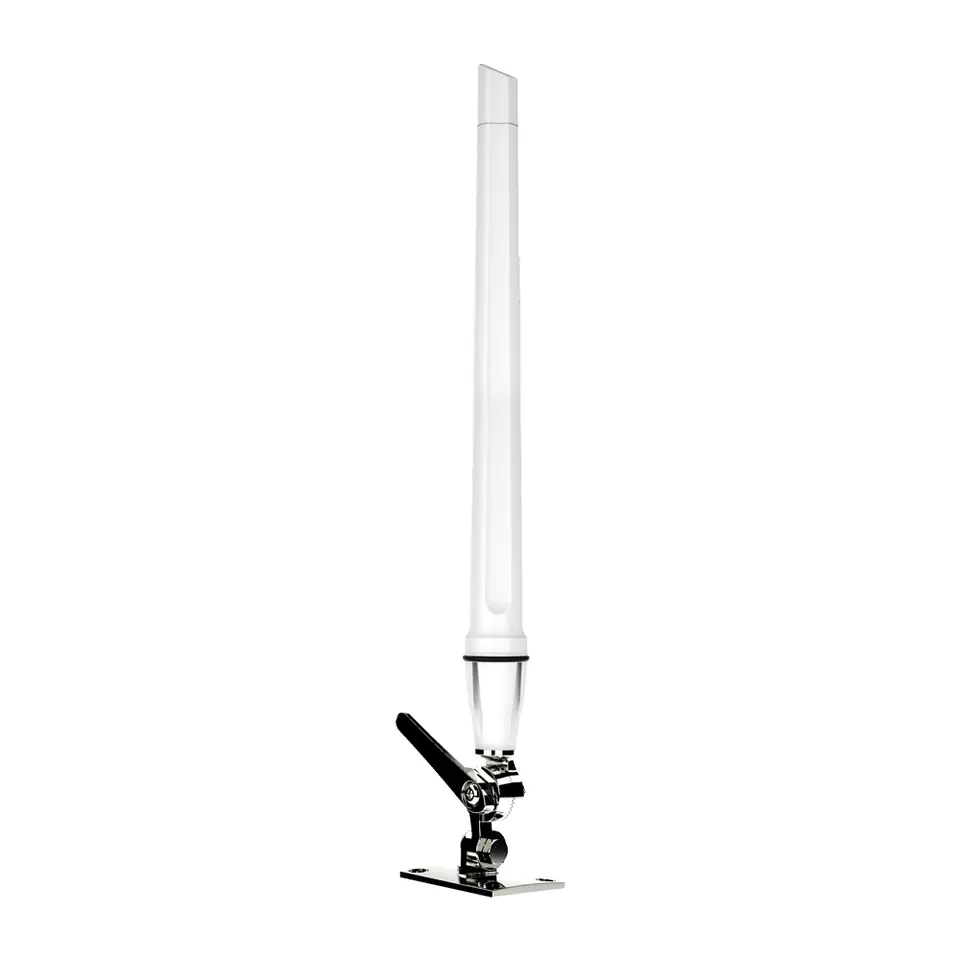

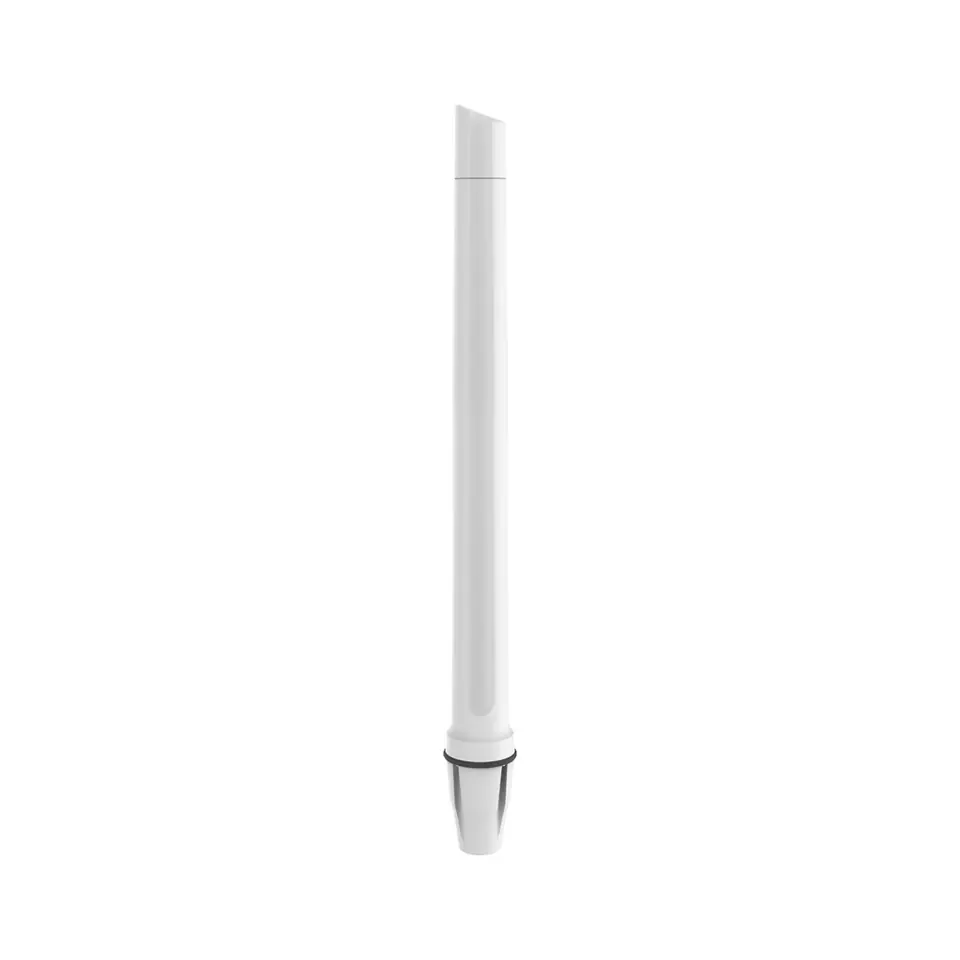

Poynting Broadband Omni-402-V1-01 Omnidirectional Antenna

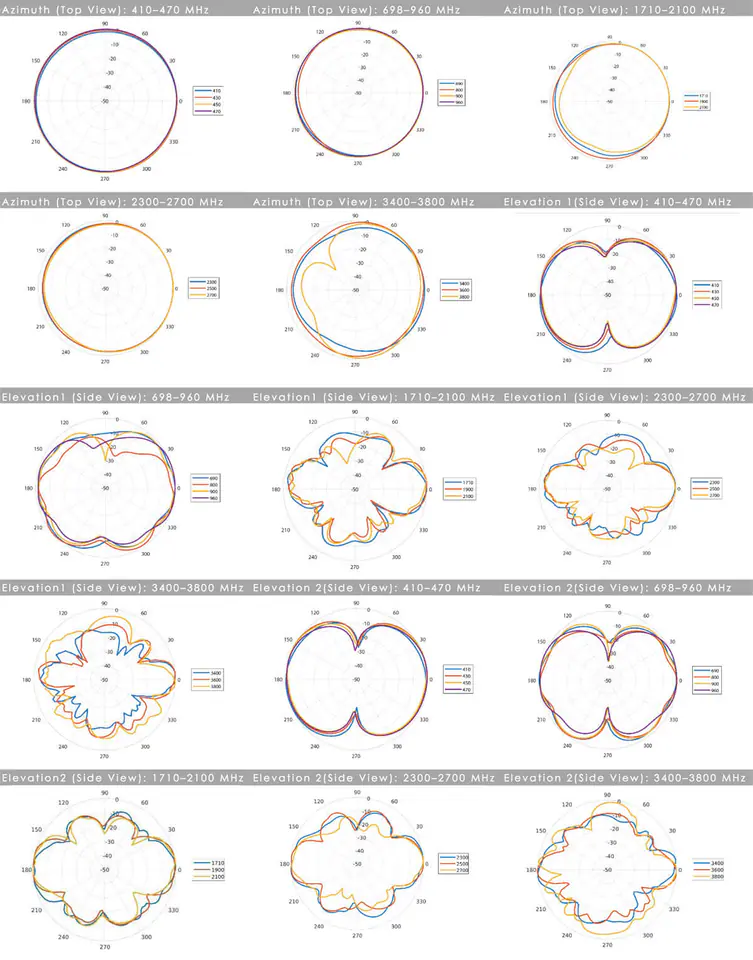

The OMNI-402 is an ultra-wideband antenna that covers all modern LTE operating frequencies with excellent balanced gain on all frequencies. The antenna also offers the possibility of 2X2 MIMO thanks to vertically separated radiating elements, all in the same dome. The antenna's design allows excellent pattern control over the entire frequency range, making the OMNI-402 a true high-performance omnidirectional MIMO antenna, suitable for marine and offshore applications. Suitable for use in all parts of the world, the OMNI-402 guarantees signal reception almost anywhere. Poynting achieves this through a new antenna configuration using multiple dipoles and a unique (patented) power grid. The antenna is future-proof as it covers the LTE 450 MHz frequency band, which is becoming increasingly popular in different regions and countries. This antenna is also suitable for operation in the 3300-3800 MHz range for coastal and inland use.
- High-performance broadband omnidirectional marine antenna
- 2X2 MIMO function for better performance

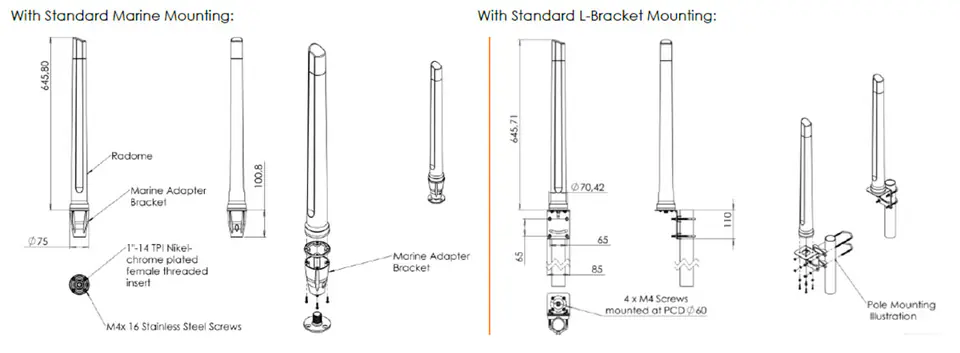

- Easy to install with 1" bushing, standard marine adapter
- Handle included
- Robust and all-weather resistant in harsh sea conditions (IP68 protection)
- UV and salt water protection
- Covers the 3.5GHz CBRS band and is 5G ready

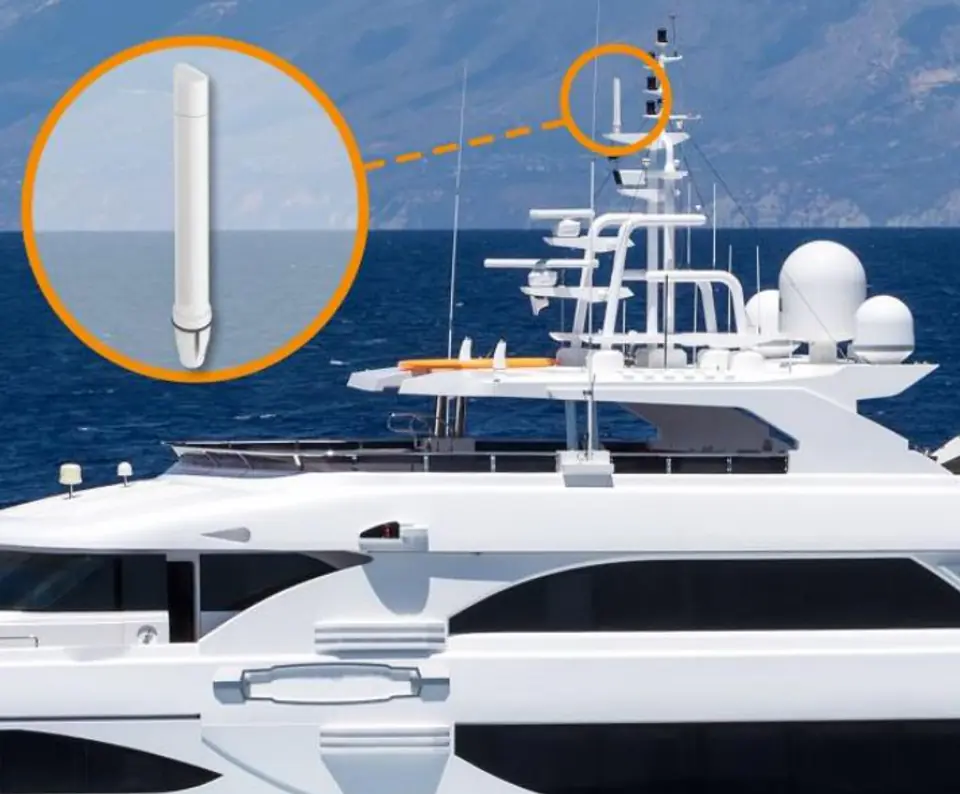

- Marine applications / Yachts / Boats / Ferries
- IoT and M2M applications
- Stability of data connection
- Areas with poor data reception
- Wi-Fi apps

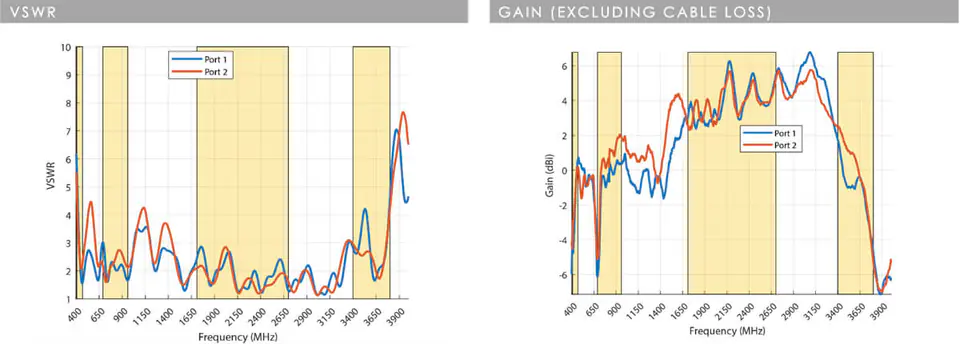

Gain* in dBi
6.2 dBi is the peak gain in all bands from 410 to 3800 MHz. (Gain at 410-470 MHz: 1 dBi; Gain at 698-2700 MHz: 6.5 dBi; Gain at 3400-3800 MHz: 2.5 dBi)
* Antenna gain measured as standard with equalized antenna polarization
Link: https://www.youtube.com/watch?v=YY6_YSa3T5o

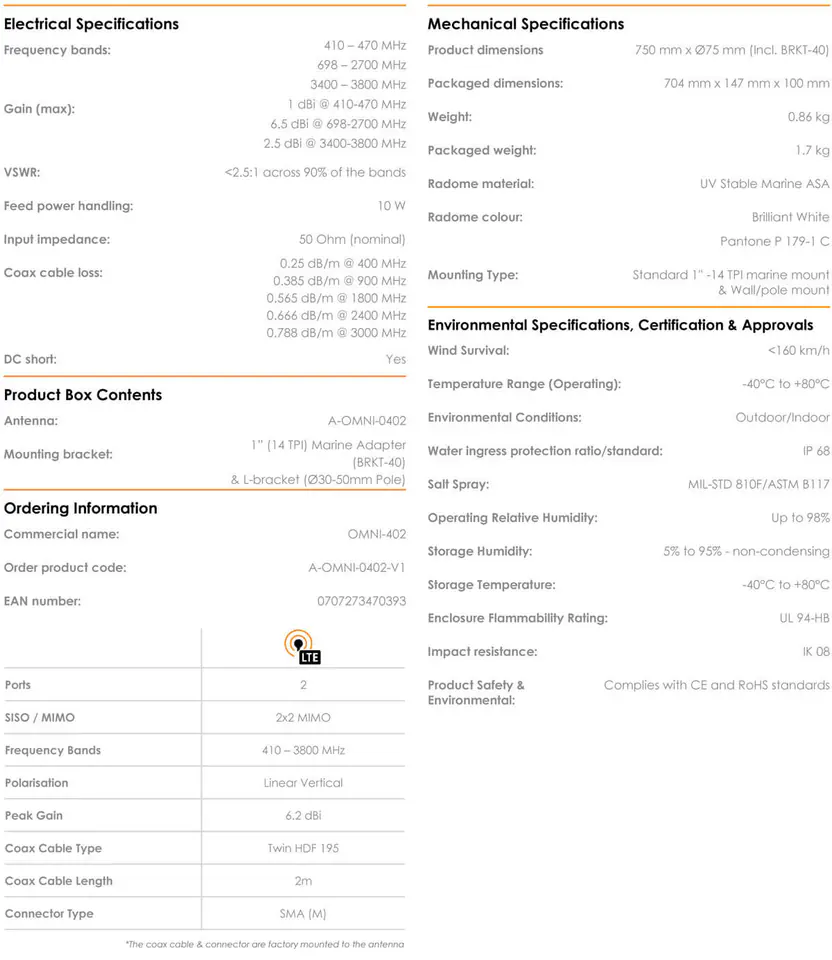

Click here for full antenna technical documentation.
