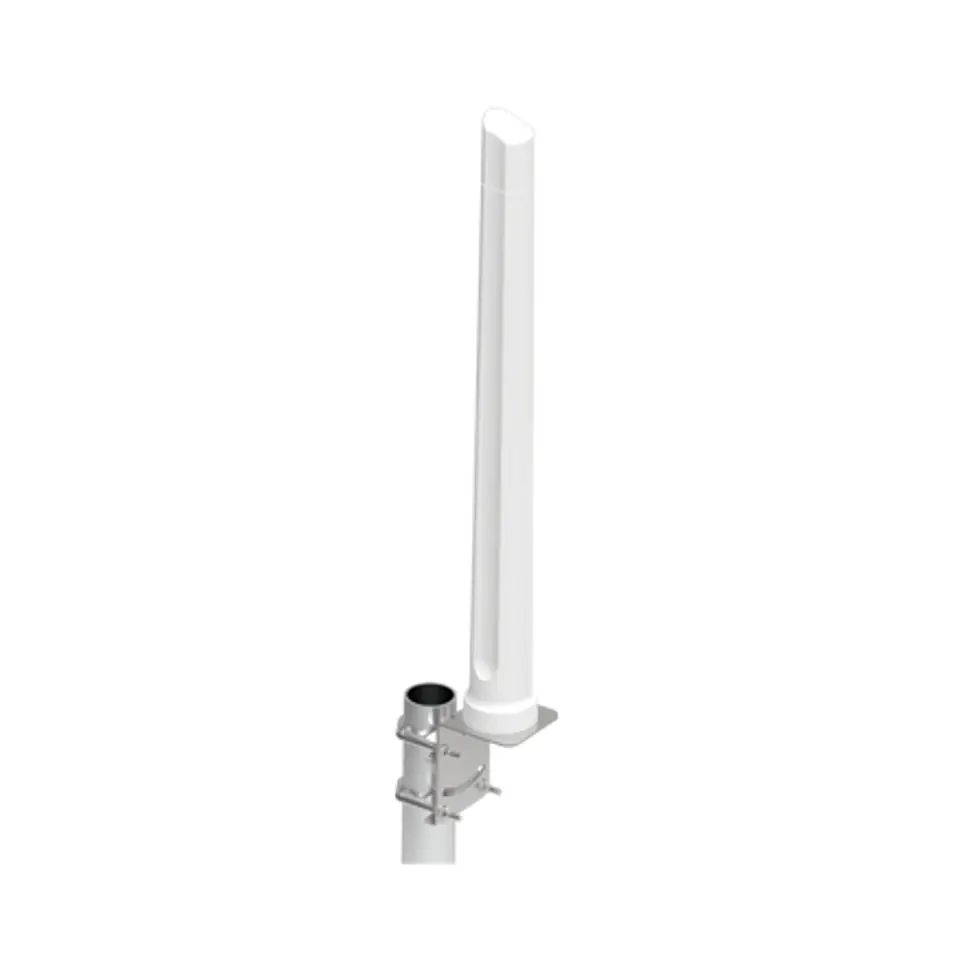

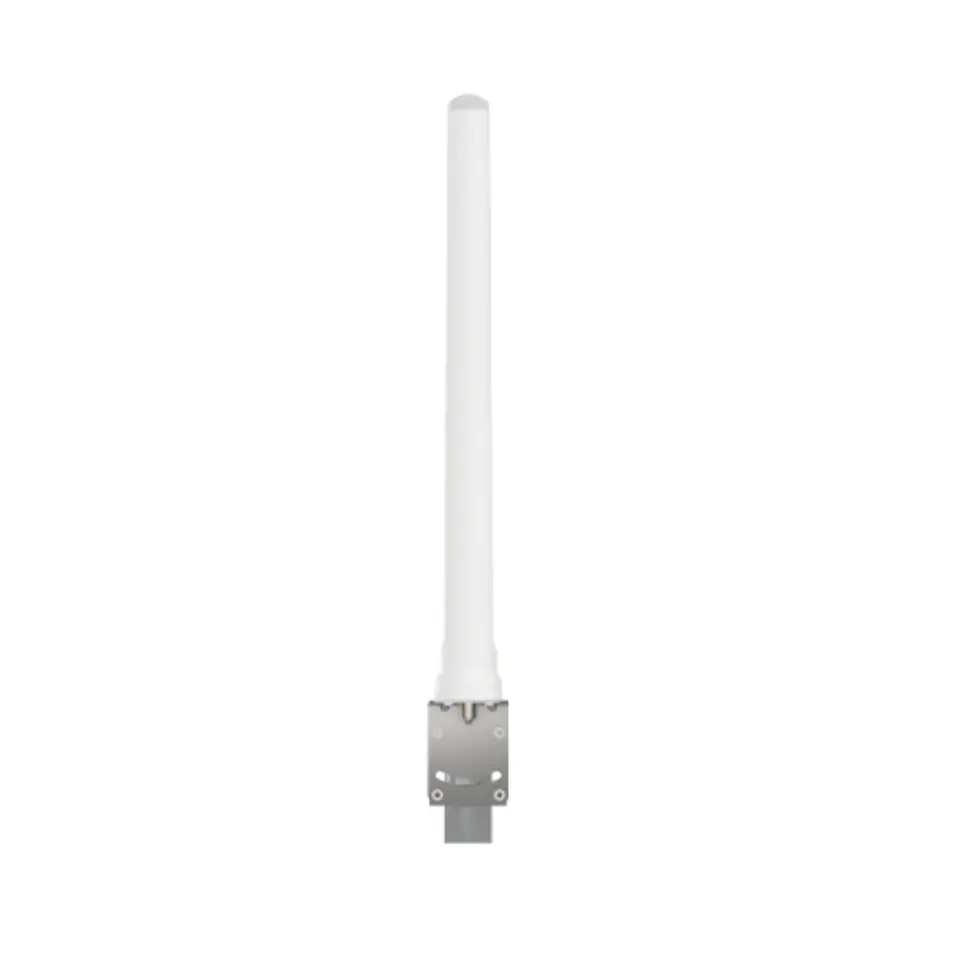

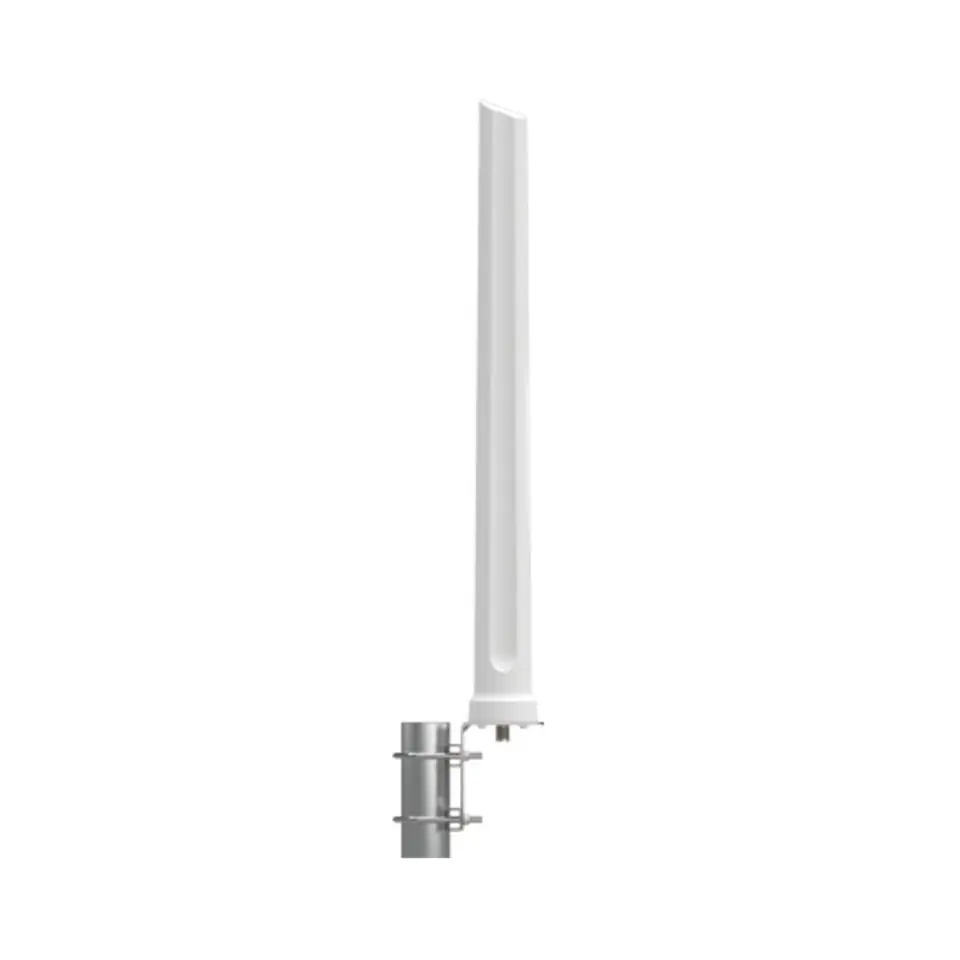

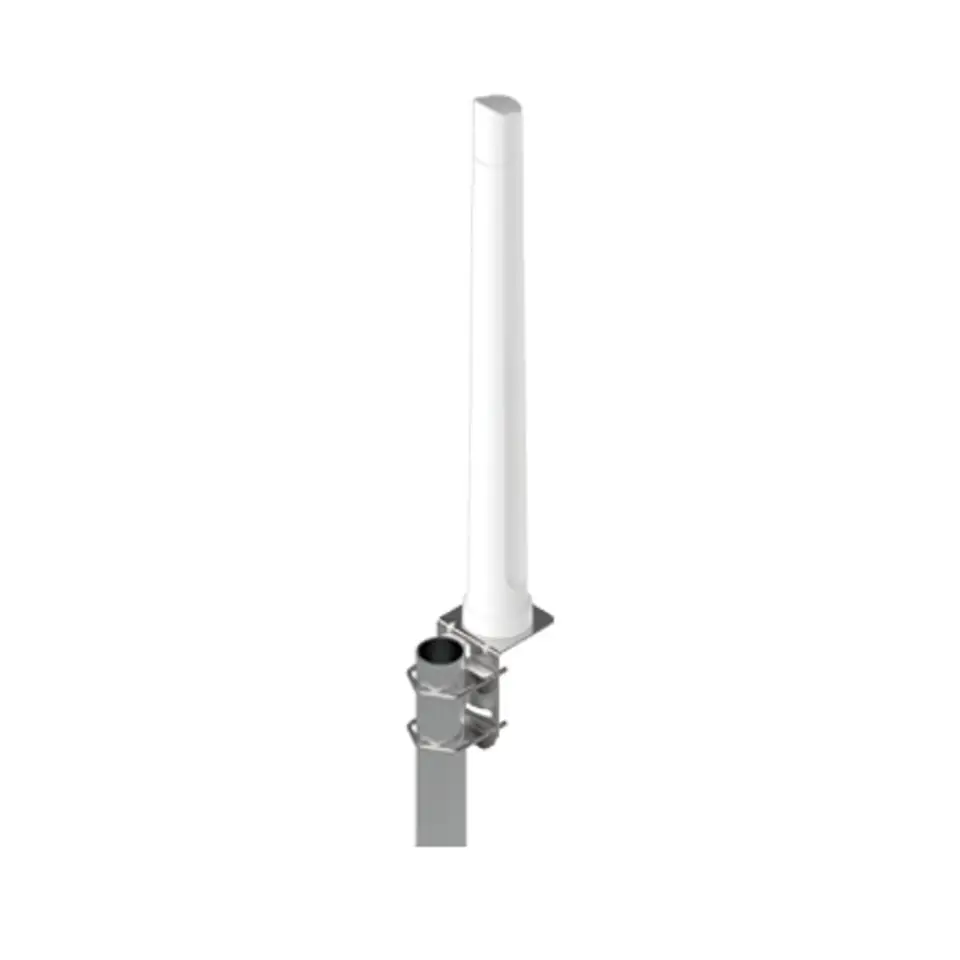

Poynting Omni-293 Omni-directional Broadband Antenna

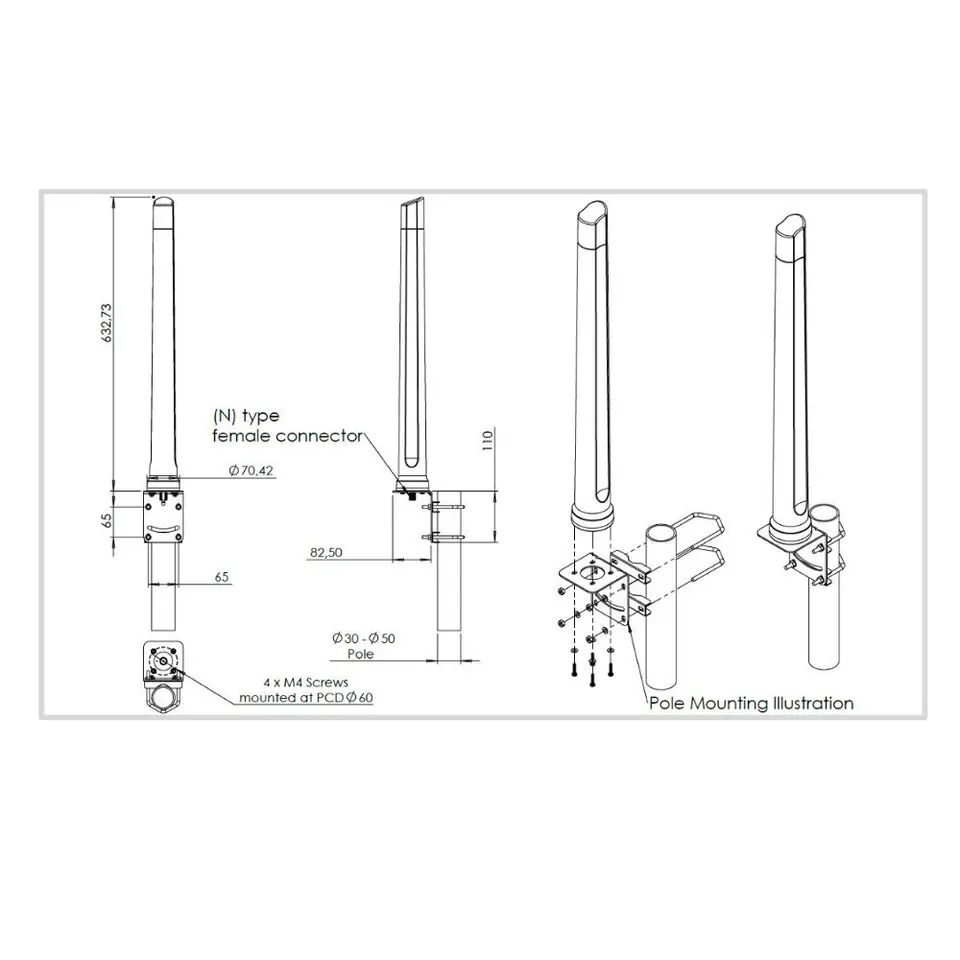

The OMNI-293 is an ultra-wideband, high-performance, omnidirectional antenna that covers today's 4G/LTE frequencies and future 5G with excellent balanced gain on all frequencies. The antenna's ultra-wideband performance allows operation in the range from 617 to 3800 MHz, with a peak gain of 9 dBi. The antenna is future-proof as it covers the upcoming 617 to 698 MHz band, as well as the 3400 to 3800 MHz band that will be used in future 5G applications. Thanks to this, the antenna can be used in all parts of the world and guarantees almost signal reception. everywhere. The antenna's design allows for excellent pattern control over the entire frequency range, making the OMNI-293 a truly high-performance omnidirectional antenna, suitable for urban and rural applications. Exceptional broadband performance is an important factor for LTE and future 5G technologies, where these technologies rely on features such as Carrier Aggregation (CA) to ensure the best possible reception and throughput across multiple frequency bands simultaneously. The antenna is equipped with an N-type female connector at the base, which can be connected to the cable of the desired type and length.
- High gain omnidirectional antenna
- Covers the 617 to 698 MHz band and the 3.5 GHz 5G band
- Works wideband, making the antenna future-proof
- The antenna is specially designed for urban and rural applications
- Robust and weatherproof IP65-rated design
- Improved reliability and stability of data connection
- Machine-to-machine (M2M) and IoT applications
- Advanced industrial router applications
- Areas with poor data reception
- Improved 4G/LTE and 5G reception

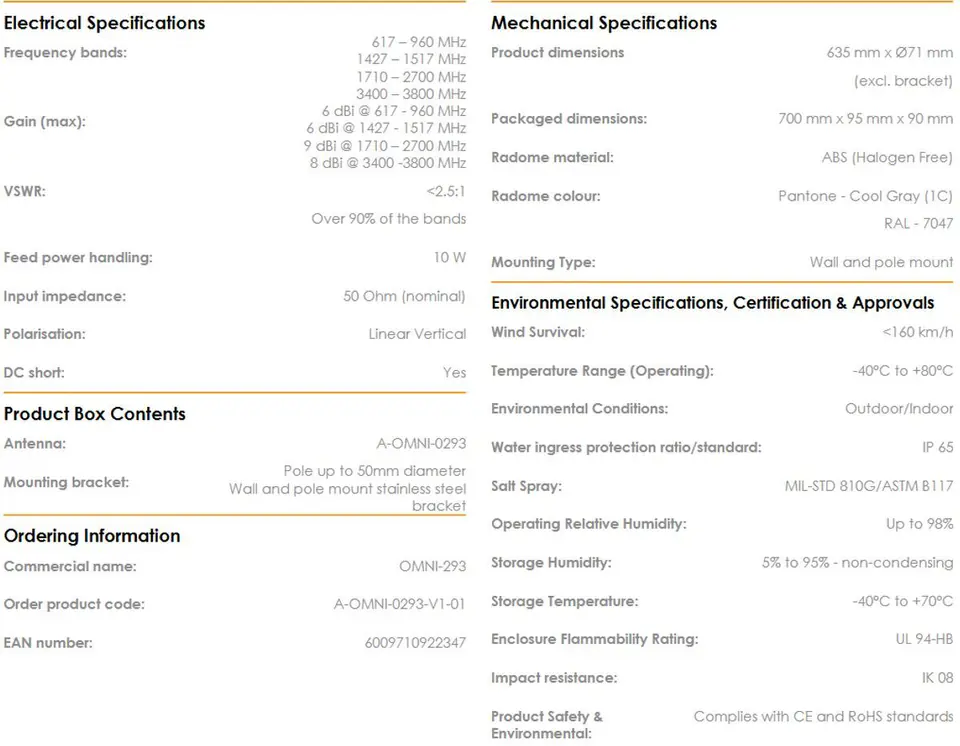

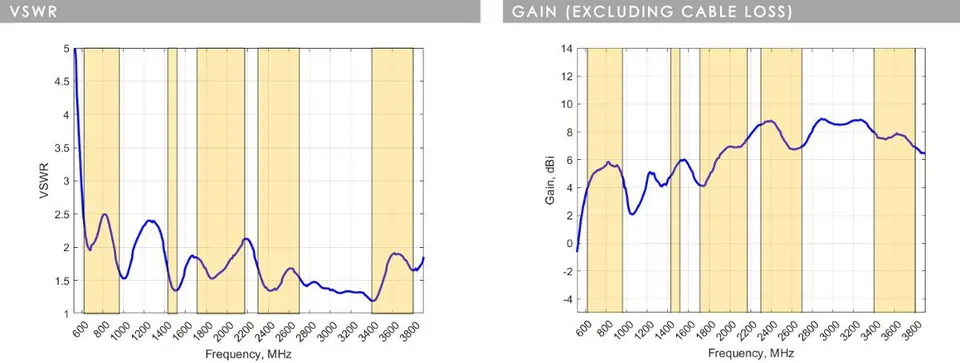

VSWR is a measure of how efficiently radio frequency power is transmitted from a power source through a transmission line to a load. In an ideal system, 100% of the energy is transmitted, which corresponds to a VSWR ratio of 1:1. TheOMNI-293 delivers excellent performance on all bands with a VSWR of 2.5:1 or better on more than 90% bandwidth. + VSWR antennas measured with 2-meter cable with low losses

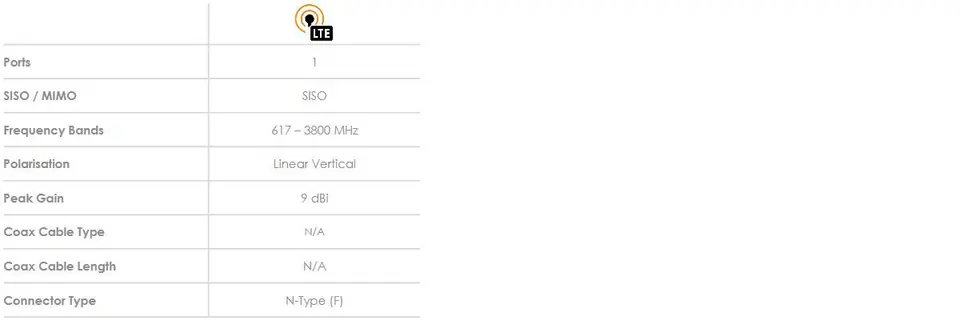

9dBi is peak gain in all bands from 617-3800 MHz
- Gain @ 617 –960 MHz: 6dBi
- Gain @ 1427 –1517 MHz: 6 dBi
- Gain @ 1710–2700 MHz: 9 dBi
- Gain @ 3400 –3800 MHz: 8 dBi

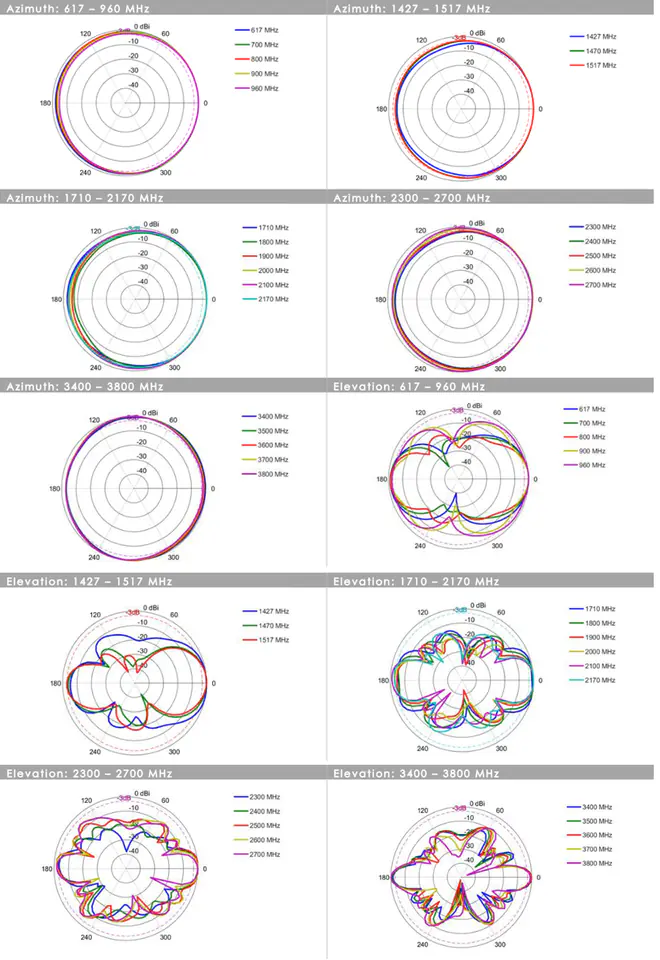

*Antenna gain measured polarization, aligned standard antenna
Click here for full antenna technical documentation.
