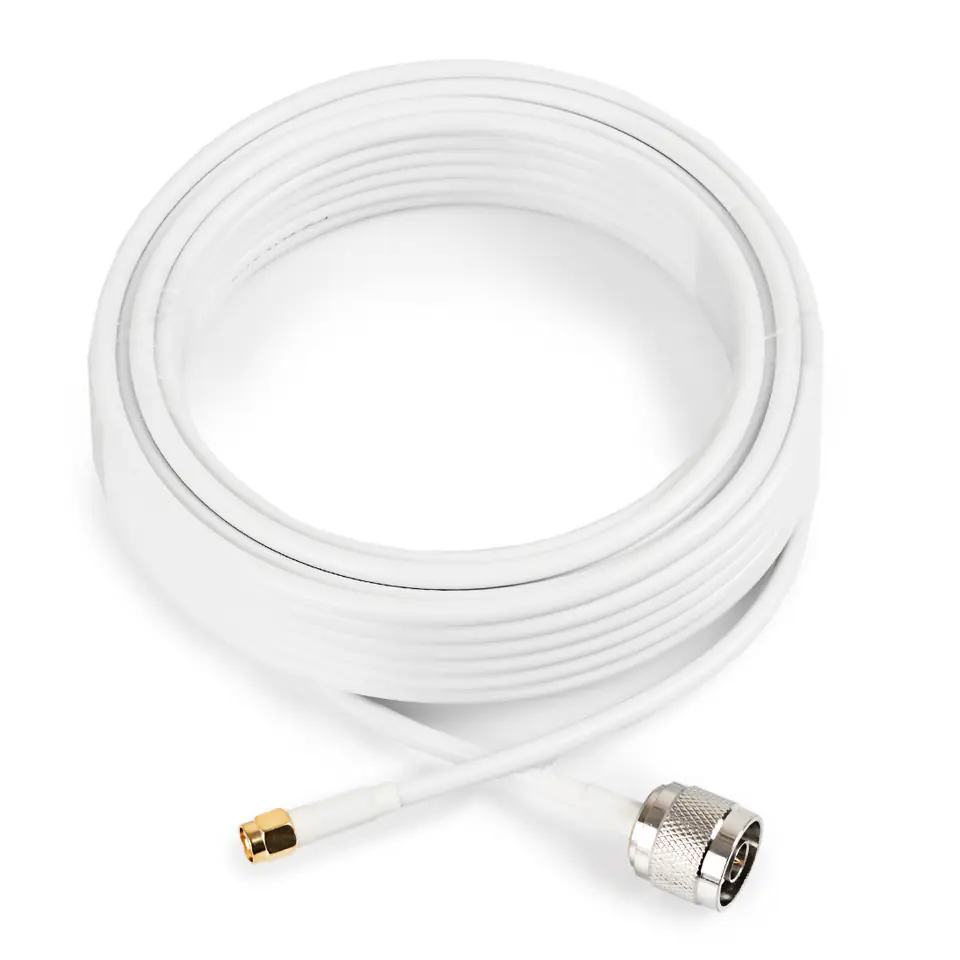

Cable GSM Poynting CAB-150 HDF195 N (M) - SMA (M) 10m
High quality cable for LTE antenna. The highest quality materials and precision of workmanship guarantee excellent parameters, long life and user satisfaction.

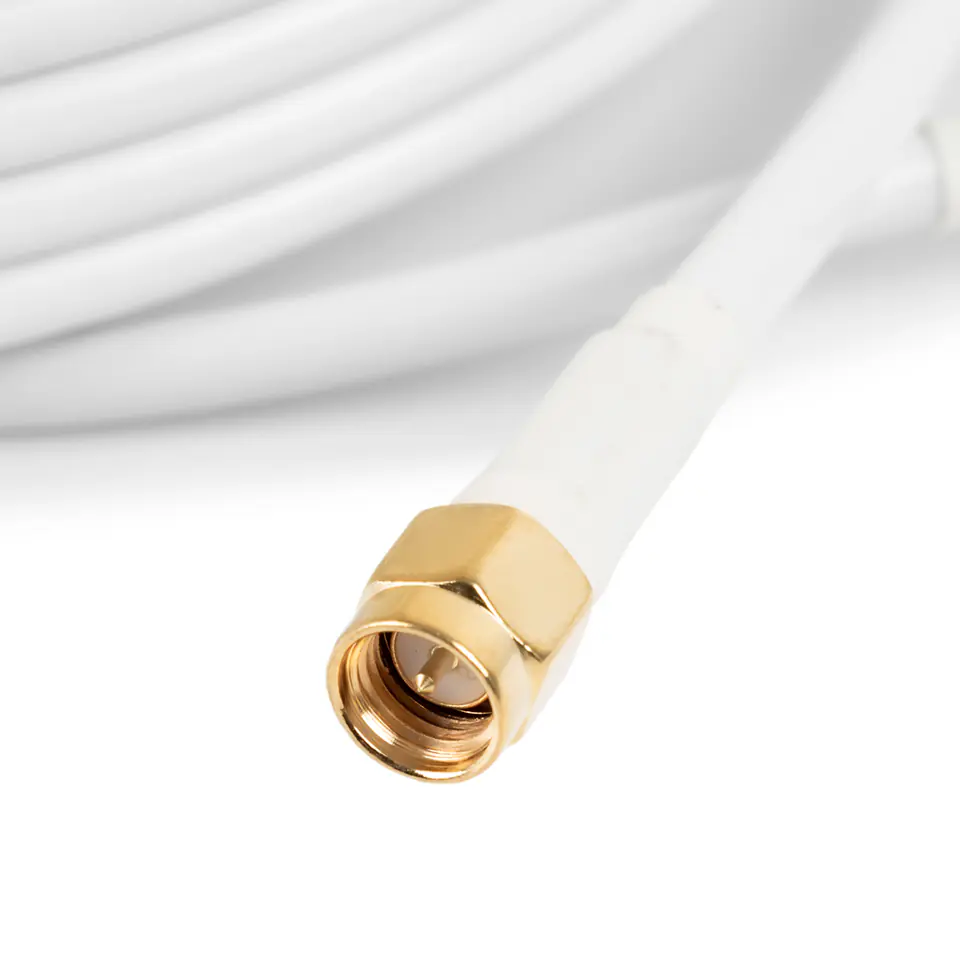

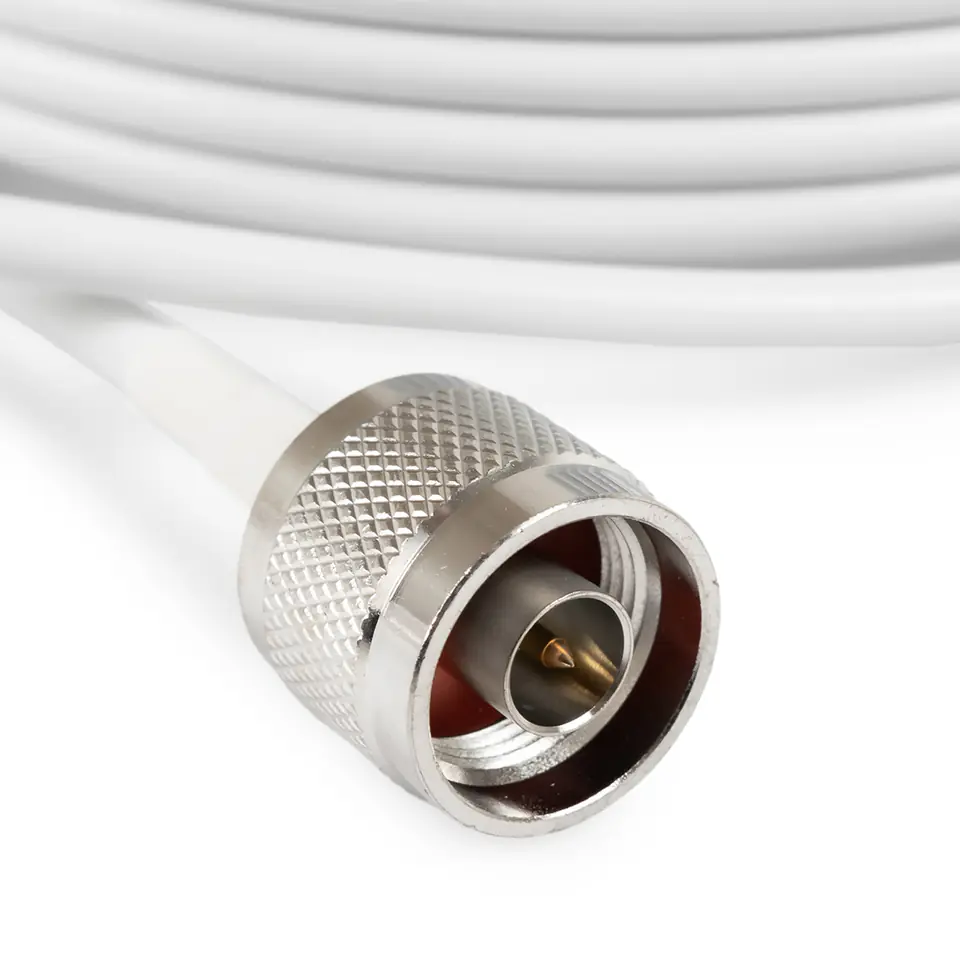

10 meter HDF195 cable with impedance of 50 Ohm, terminated with N male plug and SMA plug, will meet the requirements of even the most demanding users.
Electrical Specifications - Cable Type HDF 195
Operating Frequency (MHz) - 0~6000MHz
VSWR - 0~6000MHz: 1.35 Max
Input Impedance (Ohm) - 50 Ω (nominal)
Capacitance(pF/m) - 83.3 pF/m
Velocity of Propagation (%) - 0.8
Time Delay (ns/m) - 4 ns/m
Attenuation (dB/m):
0.1GHz : 0.135dB/m
0.4GHz: 0.250dB/m
0.9GHz : 0.385dB/m
1.5GHz : 0.507dB/m
1.8GHz : 0.565dB/m
2.4GHz : 0.666dB/m
3.0GHz : 0.788dB/m
5.8GHz: 1.15dB/m
Mechanical Specifications
Inner Conductor: Material, Diameter (mm) - Copper Clad Aluminium 0.94
Dielectric: Material, Diameter (mm) - Foam PE 2.79
Outer Conductor: Material, Diameter (mm) - Tinned Copper 3.40
Jacket: Material, Diameter (mm) - Black PVC 4.95
Minimum Bending Radius (mm) - 50
Environmental Specifications
Operating Temperature - -30° to + 70°C
Environmental Conditions - Outdoor/Indoor
