High quality professional switching power supply with short-circuit, surge and overload protection
POWER SUPPLY ZR48-158 48 V DC 3.3 A
This product is not available
- Availability:
- expected delivery
- Brand:
- Delta
- Product code:
- ZR48-158 / 5902887038136
Share this product:
Specification
| Current efficiency of the power supply:: | 3.3 A |
|---|---|
| Dimensions:: | 482 x 44 x 100 mm |
| Efficiency:: | 89 % |

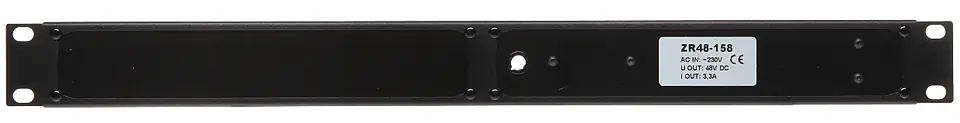

| Housing type:: | 1 U Rack 19" |
| Manufacturer / brand:: | DELTA |
| Mtbf (mean time between failures):: | > 700000 h - Telcordia SR-332 |
| Operating temperature / relative humidity:: | -10 °C ... 70 °C / 10 % ... 80 % |
| Output voltage adjustment:: | 45.6 V ... 52.8 VDC |
| Output voltage:: | 48 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 160 watts (Printing) |
| Scales:: | 0.68 kg |
| Security:: | Short-circuit Overload |
| Supply voltage frequency:: | 47 ... 63 Hz |

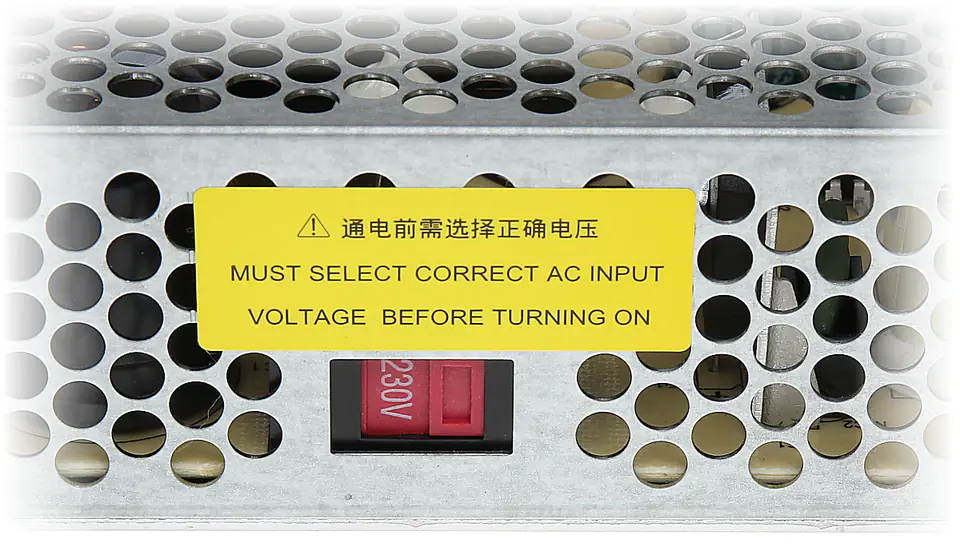

| Supply voltage:: | selected by 90 V switch ... 132 V AC, 180 V ... 264 VAC |
| Warranty:: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
