SILENCE IS PLATINUM
With a focus on thermal dissipation and maximized efficiency, this platform allows Cooler Master to offer an entirely new class of high efficiency products with 100% Japanese capacitors, boasting top-shelf performance with reduced ripple noise.
FIRST IN-HOUSE DESIGN PLATFORM
Cooler Master keeps searching for uniqueness, creativity, and more. XG Platinum is the first Cooler Master in-house designed power supply, providing next-level efficiency, rigid design, and sturdy performance to fulfill all your daily computing and gaming needs.
CRAFTED FOR EXCELLENCE

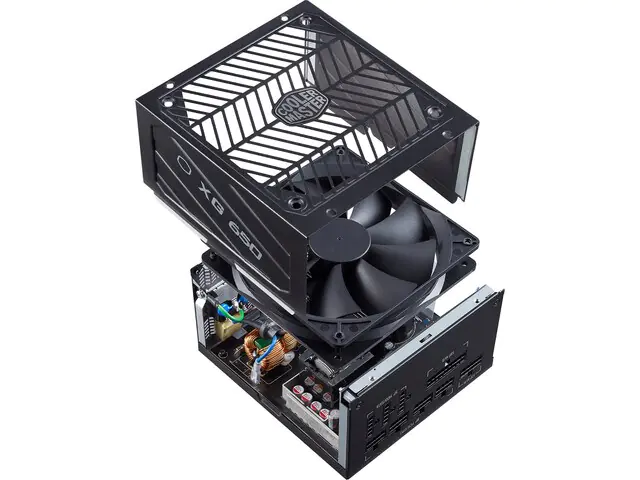

This professional grade power supply unit is built with full-bridge LLC resonant converter and DC-DC technology, made for the all users providing stability, reliability and so much more.
SILENCE IS PLATINUM

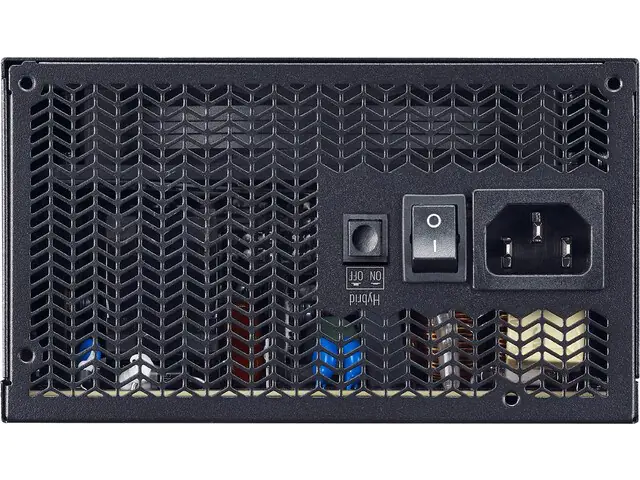

XG650 Platinum offers smart thermal control mode which you can do more with your system in the minimal level of noise generated by the silent fan.
FAN UP, FAN DOWN

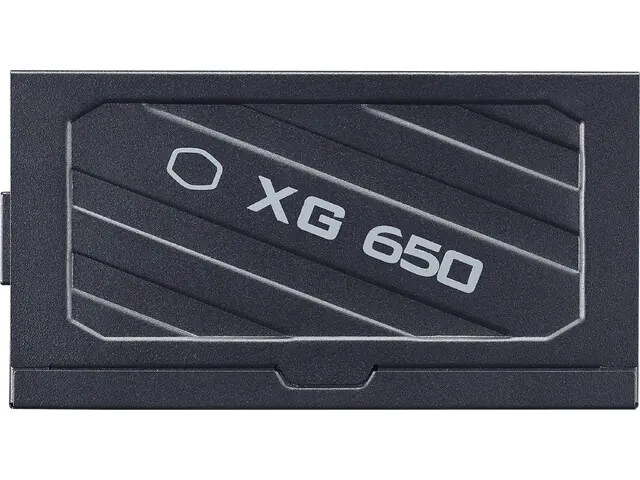

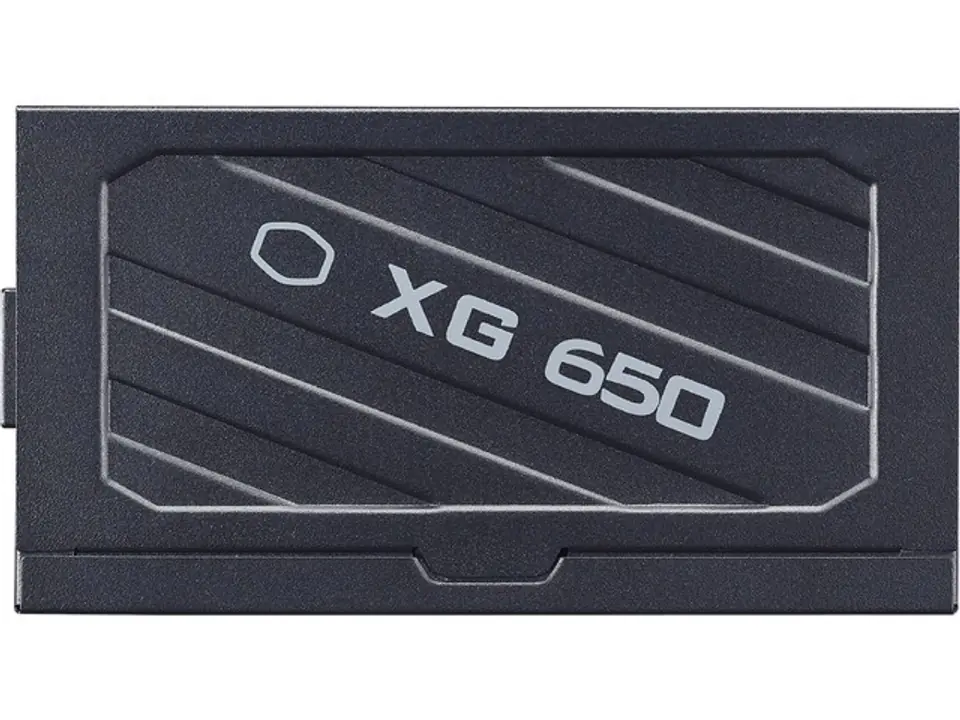

Both side panels on the XG Platinum are embossed with a stylish silk screen printed design. Install your PSU in either a fan up or fan down orientation while retaining 100% of the unit's aesthetic value anytime, anywhere.
BUILD YOUR WAY

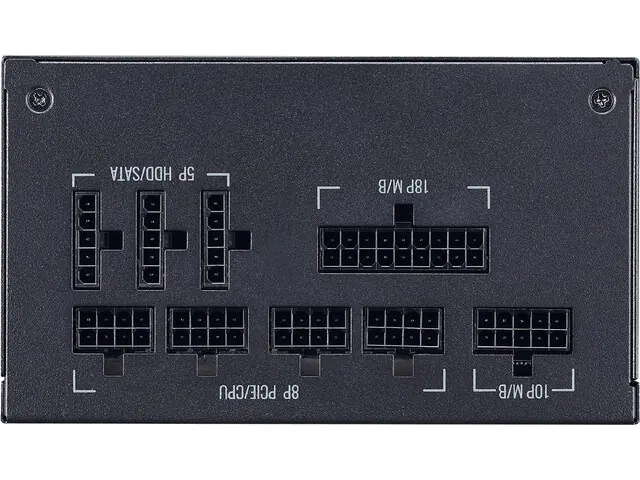

Every facet of the XG Platinum was chosen with the goal of maximizing efficiency and thermal performance. Full modular cables were a must so that users could minimize the number of cables in their system based on their needs, reducing clutter and increasing both airflow and aesthetic quality.
BUILT TO LAST
With a 10 years warranty, youll be using this longer than most up to date home consoles and most of the other components in your system.

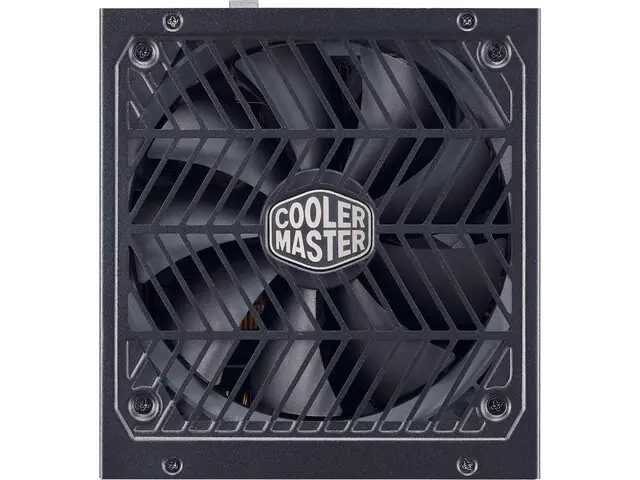

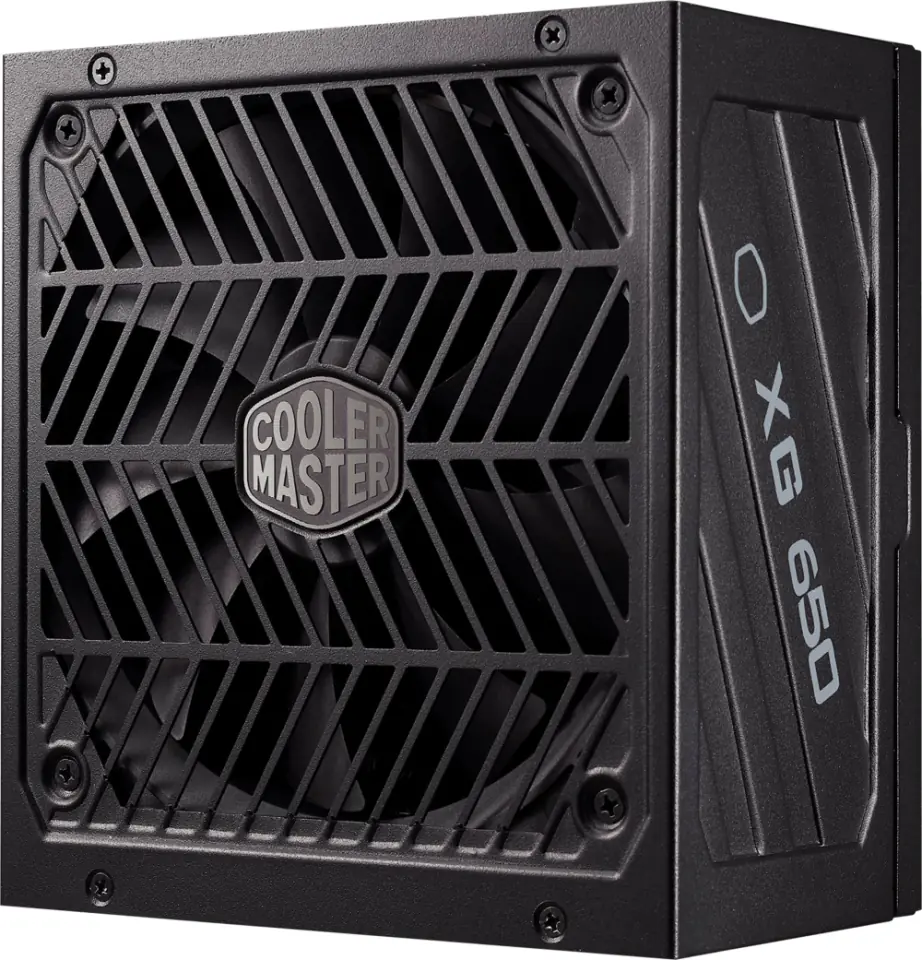

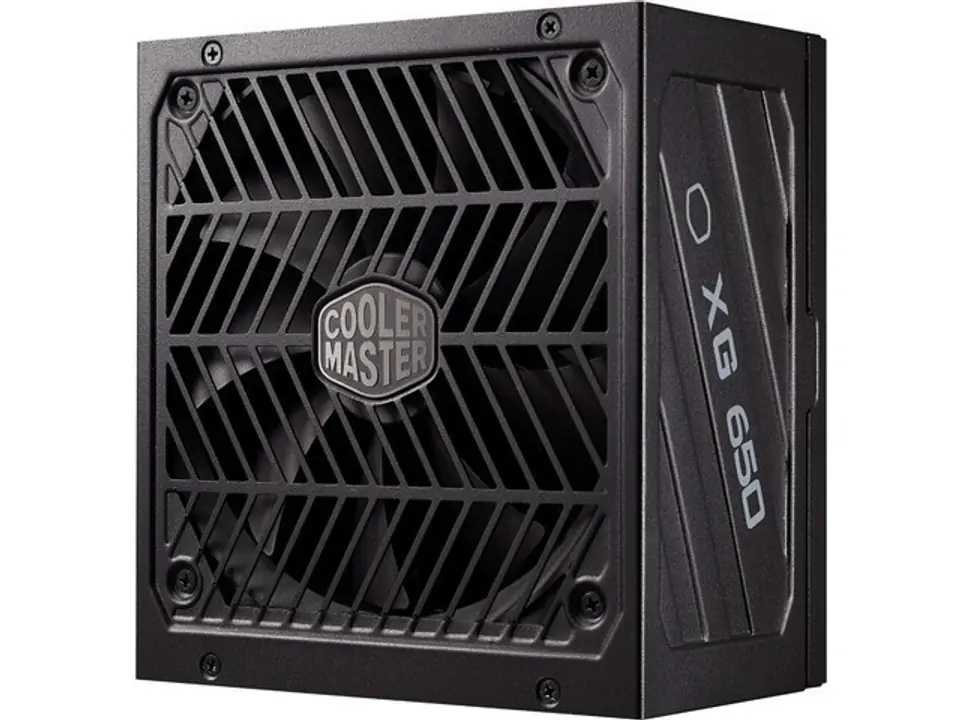

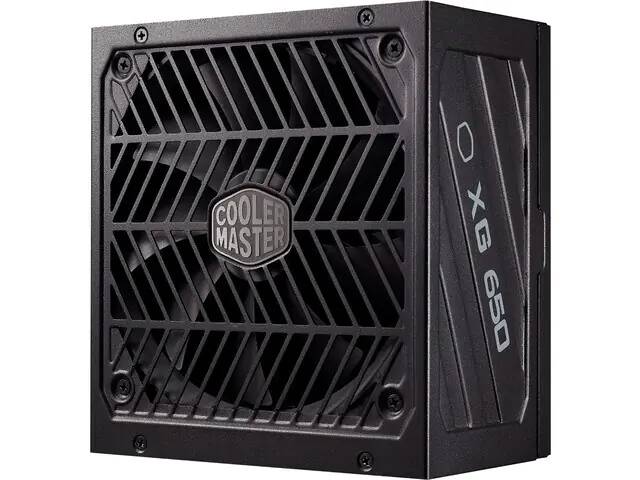

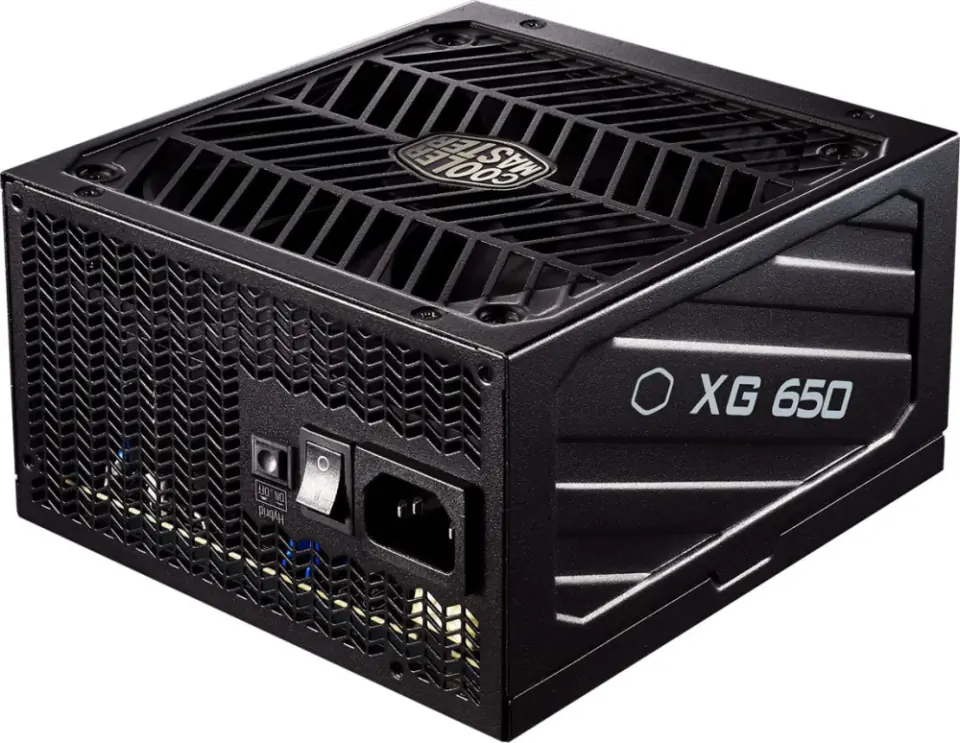

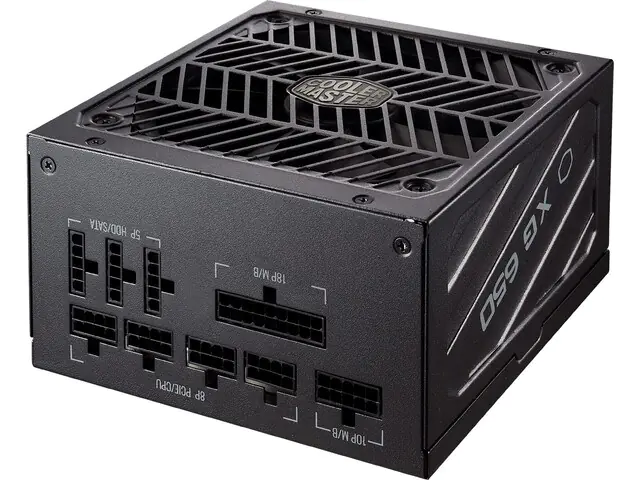

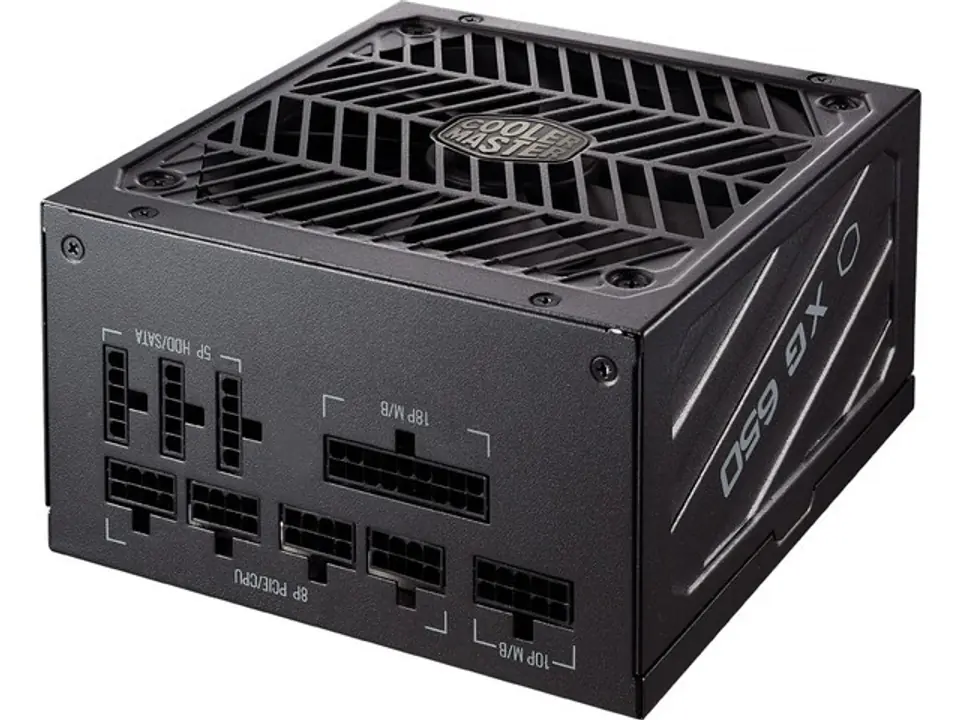

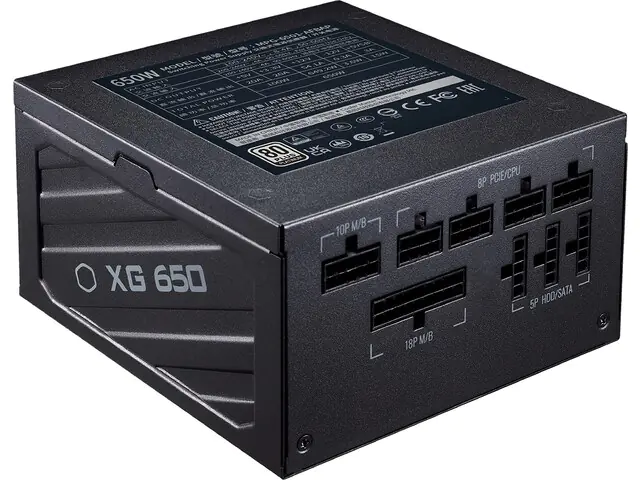

Power Supply XG 650W 80+ Platinum
This product is not available
- Availability:
- expected delivery
- Brand:
- Cooler Master
- Product code:
- MPG-6501-AFBAP-EU / 4719512111925
Share this product:

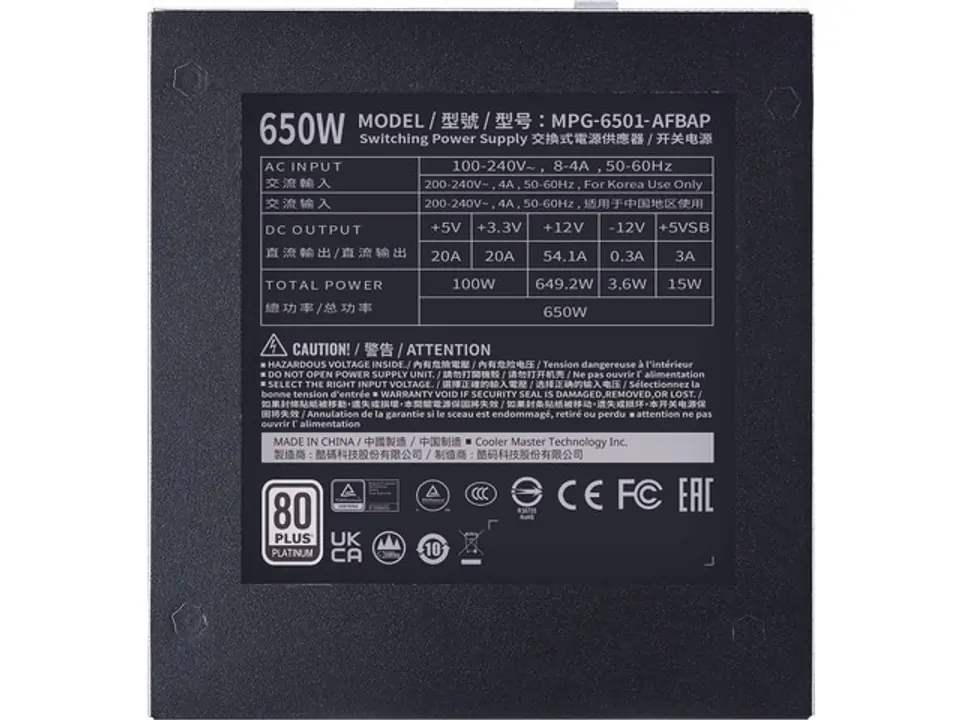

Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (24-pin): | Yes |
| Atx version: | 2.53 |
| Cabling type: | Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 650 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 160 mm |
| Efficiency: | 92% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |
| Fan diameter: | 13.5 cm |
| Fan location: | Top |
| Fan speed: | 0 - 1800 RPM |
| Height: | 86 mm |
| Hold time: | 20 ms |
| Input current: | 8 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 54.1 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power connector: | 24-pin ATX |
| Noise level (full-load mode, 100%): | 25 dB |
| Noise level (quiet mode, 50%): | 15.4 dB |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 8 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 300 mm |
| Package height: | 125 mm |
| Package width: | 214 mm |
| Pci express power connectors (6+2 pin): | 4 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 150 ms |
| Power protection features: | Short circuit, Over voltage, Overheating, Over power, Overcharge, Under voltage |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Supported motherboard form factors: | ATX |
| Total power: | 650 W |
| Width: | 150 mm |
